Official Raspberry Pi HQ Camera M12 Mount
Couldn't load pickup availability

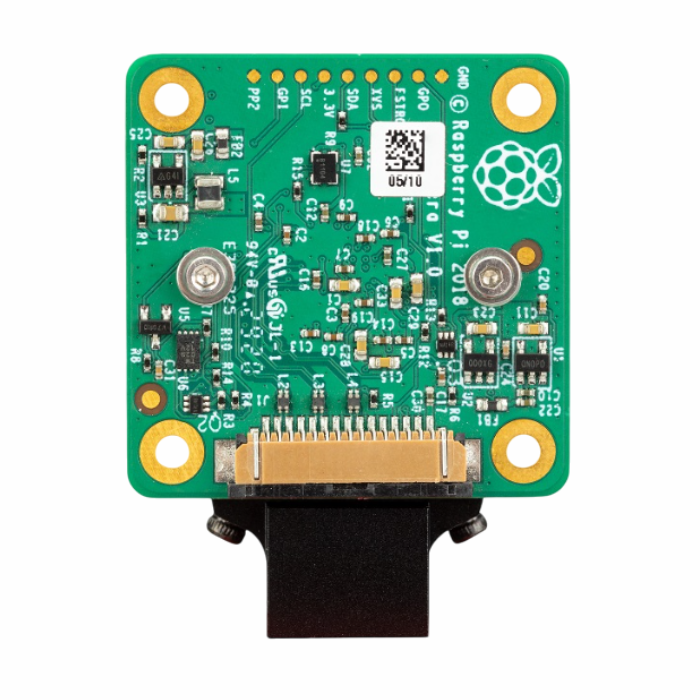

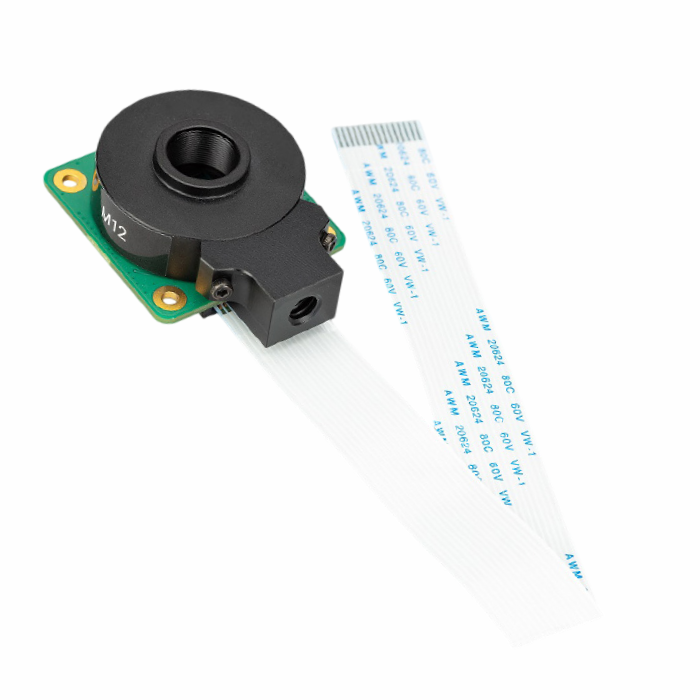

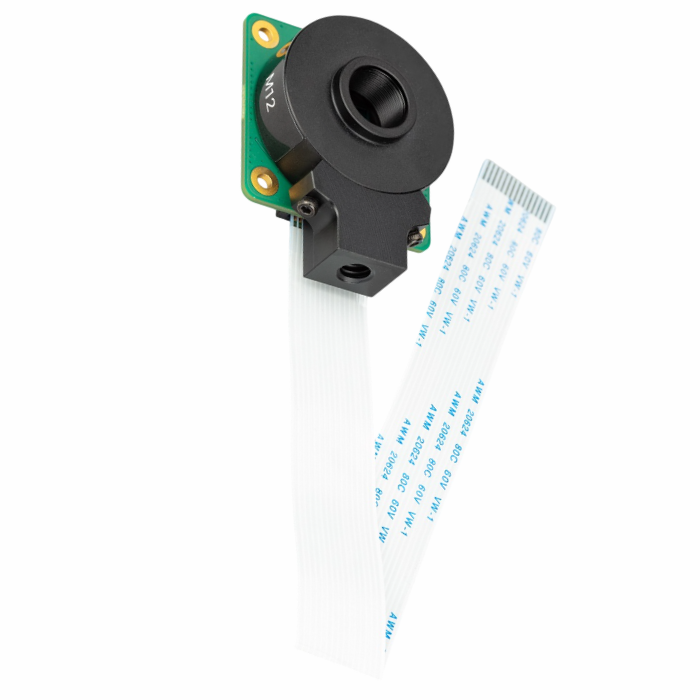

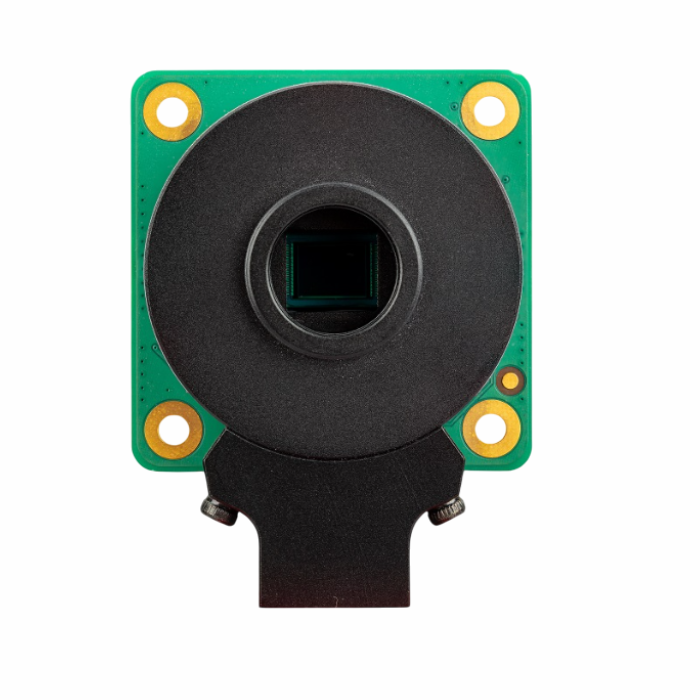

The Raspberry Pi HQ Camera M12 Mount features a 12.3 MP Sony IMX477 sensor for clear, detailed images and great low-light performance. It works with M12 lenses and is compatible with all Raspberry Pi models from the 1 Model B onwards. Ideal for projects like security cameras and other imaging applications, it comes with a sturdy aluminium lens mount with a tripod thread and an FPC cable for easy connection.
This camera is a big improvement over older models, offering sharper images and the ability to use specialized lenses. Whether you're creating security systems, machine vision setups, or any project that needs high-quality images, the Raspberry Pi HQ Camera delivers excellent results at an affordable price.
1 x Official Raspberry Pi HQ Camera M12 Mount
| Specification | Details |
|---|---|
| Model Type | M12 Mount Camera |
| Variant | M12 Mount |
| Sensor | Sony IMX477R 12.3 MP, stacked, back-illuminated sensor |
| Resolution | 12.3 Megapixels |
| Sensor Size | 7.9mm sensor diagonal |
| Pixel Size | 1.55?m × 1.55?m |
| Output | RAW12/10/8, COMP8 |
| Back Focus Length of Lens | 2.6mm–11.8mm |
| Lens Sensor Format | 1/2.3” (7.9mm) or larger |
| IR Cut Filter | Integrated 2 |
| Ribbon Cable Length | 200mm |
| Tripod Mount | 1/4”-20" |
