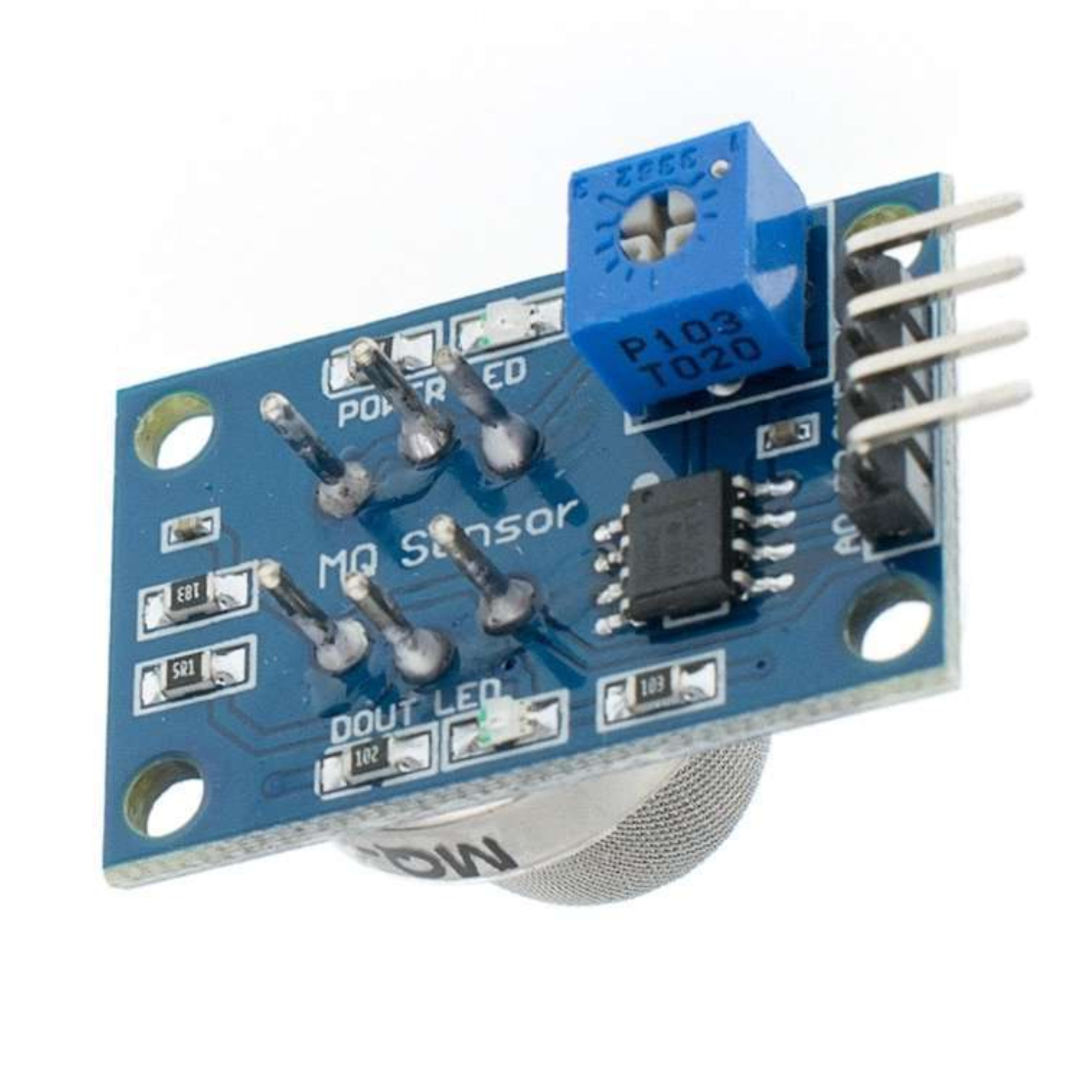

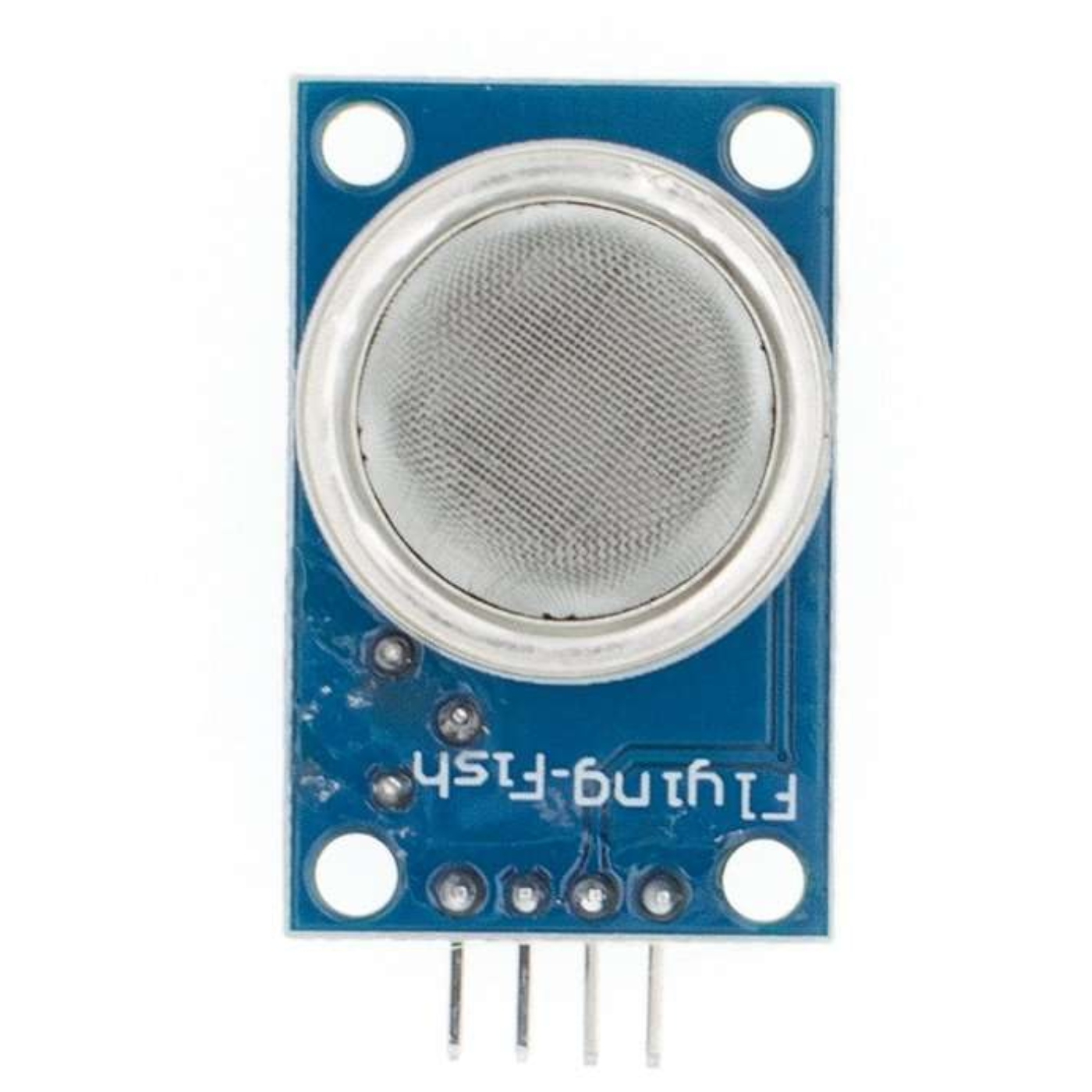

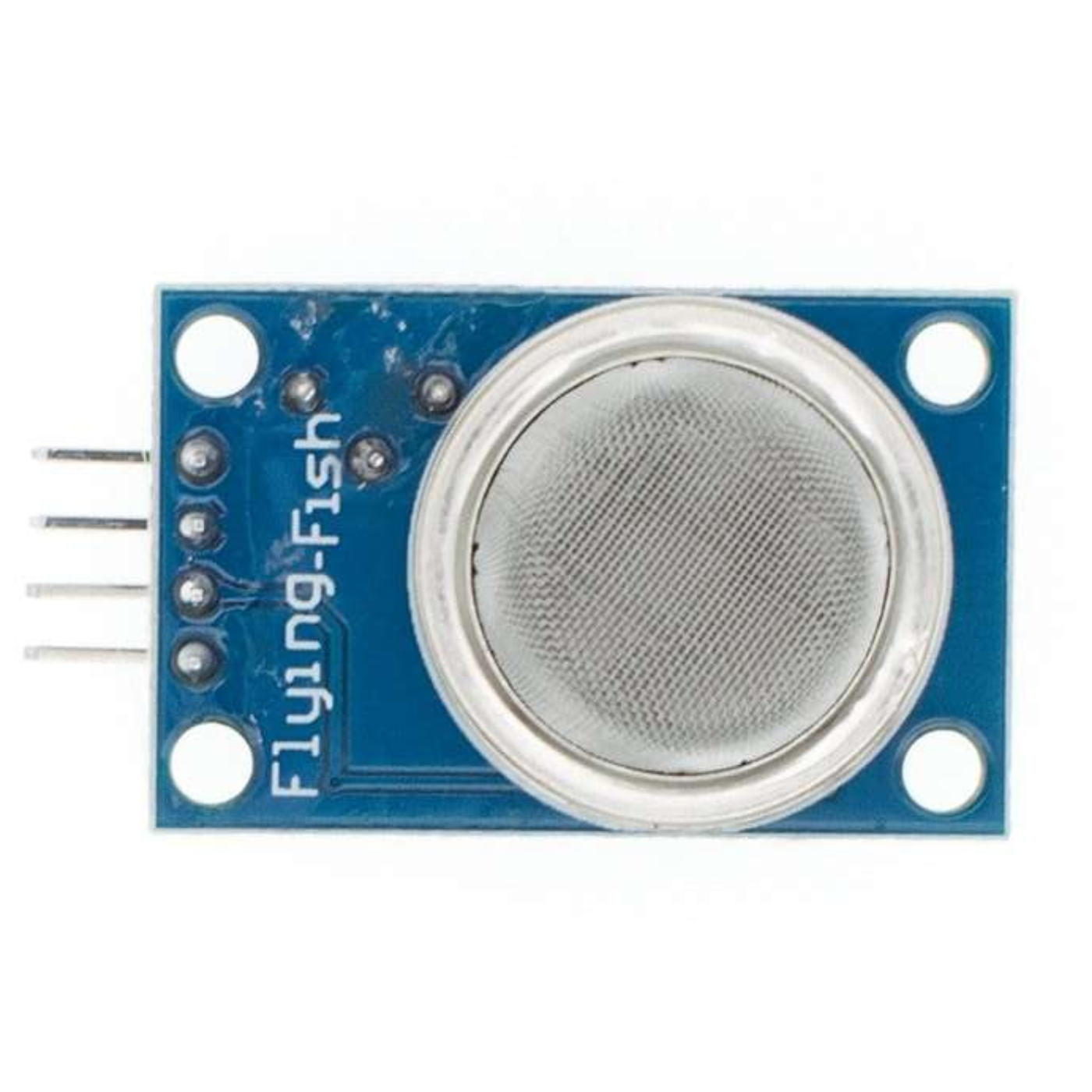

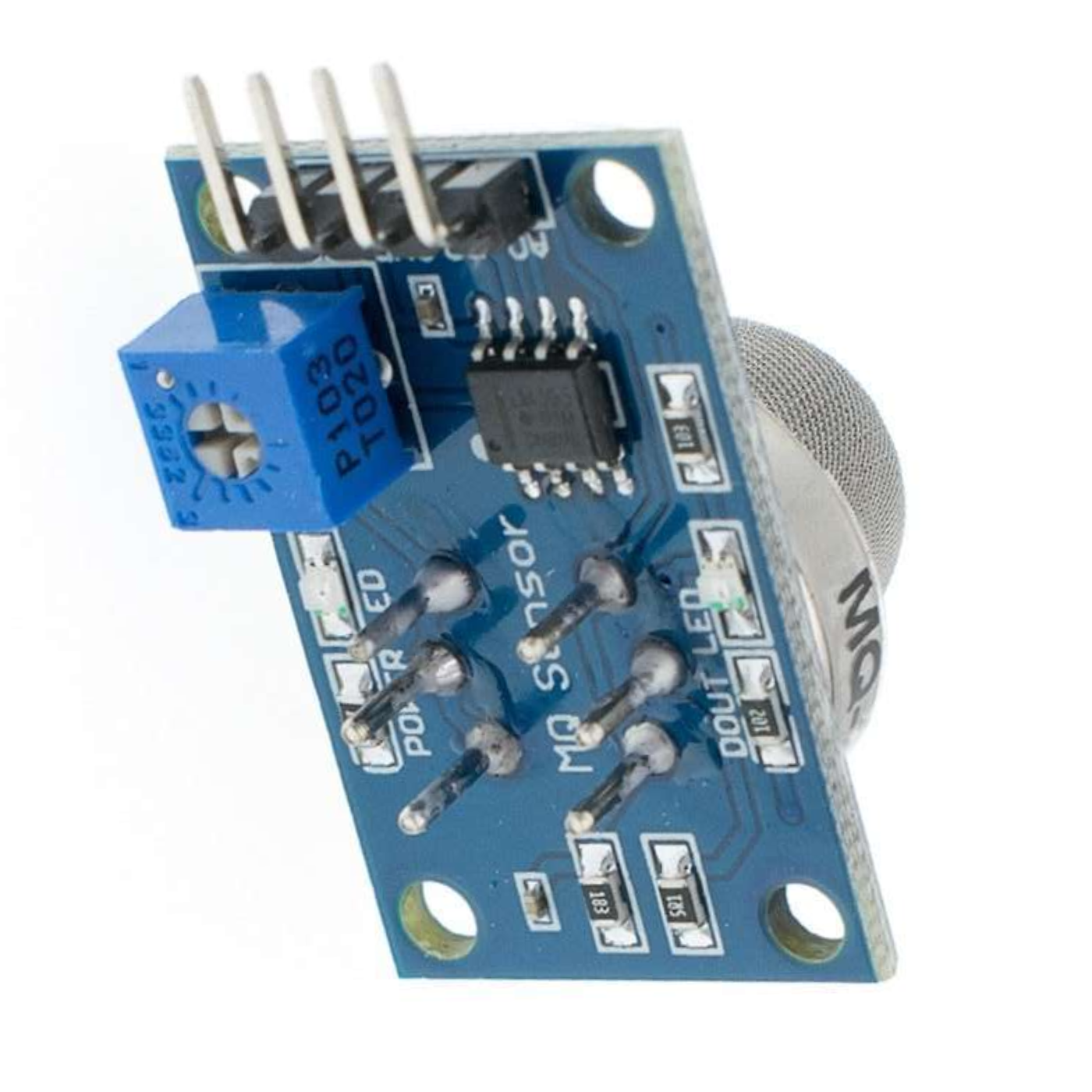

MQ-131 Ozone Gas Sensor Module – High-Level Gas Detection
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The MQ-131 Ozone Gas Sensor Module is a sensitive and practical ozone sensor module designed for detecting ozone (O₃) in the surrounding environment. It uses SnO₂ as its sensing material, which has relatively low conductivity in clean air but increases in conductivity when exposed to ozone. This change can be measured through a simple electronic circuit and converted into an output signal corresponding to the gas concentration.
The MQ-131 ozone gas sensor also shows sensitivity to gases such as chlorine (Cl₂) and nitrogen dioxide (NO₂), making it useful for a variety of gas detection and environmental monitoring projects. It can be integrated with Arduino and other microcontroller-based systems for DIY ozone gas detector, air-quality monitoring, and gas-sensing applications.
| Specification | Details |
|---|---|
| Gas Detected | Ozone (O₃) |
| Sensing Material | SnO₂ |
| Sensitivity | High |
| Operating Voltage | 5V DC |
| Heating Voltage | 5V DC |
| Load Resistance | Adjustable |
| Concentration Range | 10–1000 ppm |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 32 × 22 × 20 mm |
| Weight | Approximately 5 g |
| Output Signal | Analog |
| Preheat Time | Approximately 48 hours |
| Response Time | <10 seconds |
| Recovery Time | <30 seconds |
| Lifespan | >5 years |
| Sensitivity Adjustment | Potentiometer |
| Circuit Compatibility | Analog and Digital |
| Applications | Air Quality Monitoring, Ozone Detection |
| Package Type | DIP (Dual Inline Package) |
