Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply
Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 25000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 80 - 277VAC or 110 - 390VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -40℃ to +70℃
- Low standby power consumption, high efficiency, and active PFC
- High I/O isolation test voltage up to 4000VAC
- Base plate with conformal coating
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Remote sense compensation and remote ON/OFF function
- DC_OK function
- Suitable for BF application
- 5V/1A standby power
- Operating altitude up to 5000m
- Safety according to IEC62368, EN60335, and EN61558
This product is not available for store pickup. Apologies for the inconvenience caused

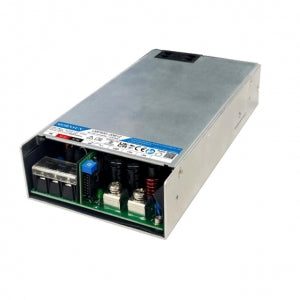

Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply
The LMF600-20B15 is a 600 watt, 15 volt, 40 amp enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage of 80 to 277 VAC or 110 to 390 VDC, high efficiency up to 92%, low no load power consumption, high reliability, double or reinforced insulation, and excellent EMC performance. It meets IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, GB4943 standards.
Features:
- Universal AC input voltage of 80 to 277 VAC or 110 to 390 VDC
- Output voltage of 15 volts
- Output current of 40 amps
- High efficiency up to 92%
- Low no load power consumption
- High reliability
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF600-20B15 AC/DC 600W Enclosed Switching Power Supply
Specifications
| Power | 600 watts |
| Input voltage | 80 to 277 VAC or 110 to 390 VDC |
| Output voltage | 15 volts |
| Output current | 40 amps |
| Efficiency | Up to 92% |
| No load power consumption | Less than 0.5 watts |
