- Universal AC input of 80 - 277VAC or 110 - 390VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +70℃
- Low standby power consumption, high efficiency, active PFC
- High I/O isolation test voltage up to 4000VAC
- The base plate with conformal coating
- Output short circuit, over-current, over-voltage, over-temperature protection
- Remote sense compensation, remote ON/OFF function
- DC_OK function
- Suitable for BF application
- With 5V/1A standby power
- Operating altitude up to 5000m
- Safety according to IEC62368, EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused

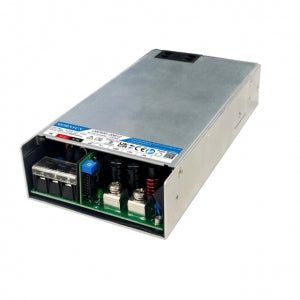

Mornsun LMF600-20B12 AC/DC 600W Enclosed Switching Power Supply
The LMF600-20B12 is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 80-277VAC or 110-390VDC, a single output of 12V at 50A, and an efficiency of up to 92%. The LMF600-20B12 is also equipped with double or reinforced insulation for safety, and it meets a variety of safety standards, including IEC/EN/UL62368, EN60335, EN61558, IEC/EN60601, and GB4943.
Features:
- Universal AC input of 80-277VAC or 110-390VDC
- Single output of 12V at 50A
- Efficiency of up to 92%
- Double or reinforced insulation for safety
- Meets a variety of safety standards
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF600-20B12 AC/DC 600W Enclosed Switching Power Supply
Specifications
| Power | 600W |
| Input voltage | 80-277VAC or 110-390VDC |
| Output voltage | 12V |
| Output current | 50A |
| Efficiency | up to 92% |
| Isolation | 4000VAC |
| Dimensions | 190 x 110 x 55mm |
| Weight | 2.5kg |
