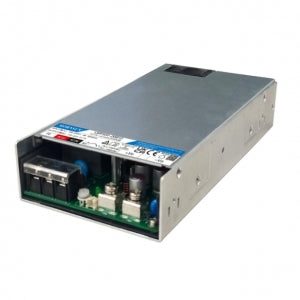

Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply
Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply
Out of stock
0
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 25000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 80-264VAC or 110-370VDC
- Accepts AC or DC input (dual-use of the same terminal)
- Operating ambient temperature range of -30 to +70 degrees Celsius
- Low standby power consumption
- High efficiency
- Active PFC
- High I/O isolation test voltage up to 4000VAC
- Output short circuit constant current, over-current, over-voltage, and over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Remote sense compensation
- Remote ON/OFF function
- Safety according to IEC/UL62368, IEC/EN60601, EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply
The LMF500-20B36 is a 500W enclosed AC/DC switching power supply from Mornsun. It features a universal input voltage of 80-264VAC or 110-370VDC, and can be used with either AC or DC input. The power supply has a high efficiency of up to 93%, and is equipped with active PFC to help reduce power consumption and improve power factor. The LMF500-20B36 also features a wide operating ambient temperature range of -30 to +70 degrees Celsius, and is protected against short circuit, overcurrent, overvoltage, and overtemperature.
Features
- Universal input voltage of 80-264VAC or 110-370VDC
- Accepts AC or DC input (dual-use of the same terminal)
- High efficiency of up to 93%
- Active PFC to help reduce power consumption and improve power factor
- Wide operating ambient temperature range of -30 to +70 degrees Celsius
- Protected against short circuit, overcurrent, overvoltage, and overtemperature
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF500-20B36 AC/DC 500W Enclosed Switching Power Supply
Specifications
| Power | 500W |
| Input voltage | 80-264VAC or 110-370VDC |
| Output voltage | 36V DC |
| Output current | 13.9A |
| Efficiency | up to 93% |
