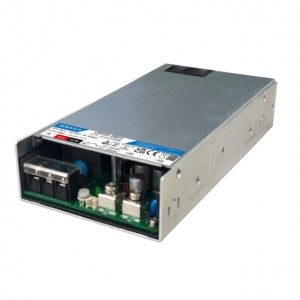

Mornsun LMF500-20B12 AC/DC 500W Enclosed Switching Power Supply
The LMF500-20B12 is a 500W enclosed AC/DC switching power supply from Mornsun. It features a universal input voltage of 85-305VAC or 120-430VDC, accepts AC or DC input (dual-use of same terminal), an operating temperature range of -30? to +70?, built-in active PFC function, high I/O isolation test voltage up to 4000VAC, output short circuit, over-current, over-voltage, over-temperature protection, LED indicator for power on, built-in DC fan, and emissions meet CISPR32/EN55032 CLASSB.
The LMF500-20B12 is a versatile power supply that can be used in a variety of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home. It is also cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
