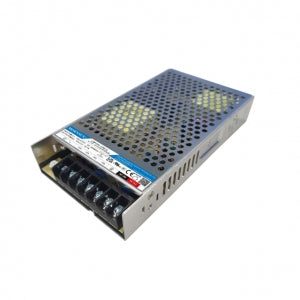

Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply

Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply

In stock

Regular price Rs. 5,011
Regular price Rs. 6,845 Sale price Rs. 5,011
Sale Sold out 27% off Best Price Guaranteed
You save Rs. 1,834
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Universal 85 - 305VAC or 120 - 430VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range: -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • LED indicator for power on
  • Emissions meets CISPR32/EN55032 CLASS B
  • Start-up delay time less than 5 seconds at -30℃
  • Operating altitude up to 5000m
  • Safety according to IEC62368, EN60335

This product is not available for store pickup. Apologies for the inconvenience caused

Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply

The LMF200-23B12 is an enclosed AC/DC power supply from Mornsun. It has a power output of 200W and an output voltage of 12V. The input voltage range is 85 to 305VAC, and the output current is 16.67A. The efficiency is 85.5%, and the isolation voltage is 4000VAC. The power supply is also protected against overvoltage, overcurrent, and short circuit.

Features

    • Enclosed design for protection from dust and moisture
    • Wide input voltage range for compatibility with a variety of power sources
    • High output current for powering a wide range of devices
    • High efficiency for low power consumption
    • Overvoltage, overcurrent, and short circuit protection for safety

    Note:

    • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
    • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
    • All index testing methods in this datasheet are based on our company's corporate standards
    • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
    • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
    • The output voltage can be adjusted by the ADJ, clockwise to increase
    • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
    • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

    Package Includes:

    1 x  Mornsun LMF200-23B12 AC/DC 200W Enclosed Switching Power Supply

    Specifications:

    Power output 200W
    Output voltage 12V
    Input voltage range 85 to 305VAC
    Output current 16.67A
    Efficiency 85.5%
    Isolation voltage 4000VAC
    Dimensions 230 x 125 x 80mm
    Weight 3.2kg
