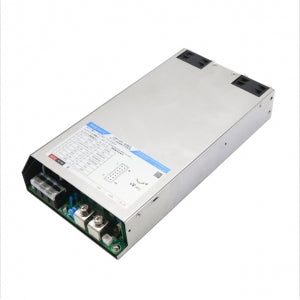

Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS
Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 20000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Wide input voltage range: 85-264VAC or 120-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Built-in active PFC function
- Operating ambient temperature range: -40℃ to +70℃
- High reliability, efficiency up to 94%
- Output short circuit, 5s constant-current, over-voltage, over-temperature protection
- Support 3+1 parallel redundancy, current sharing
- Operating up to 5000m altitude
- Fan speed automatic adjustable
- 5 years warranty
- Safety according to IEC/UL62368, IEC60601, IEC60335,GB4943
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS
The LMF1500-20B24 is a 1500W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input voltage of 85-264VAC and a DC input voltage of 120-370VDC. The output voltage is adjustable from 12V to 24V with a maximum current of 62.5A. The power supply also has a 5V/2A output for powering peripherals.
The LMF1500-20B24 is designed for use in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home. It is a cost-effective and reliable solution for a wide range of power needs.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LMF1500-20B48 AC/DC 1500W Enclosed SMPS
Package Includes:
1 x Mornsun LMF1500-20B24 AC/DC 1500W Enclosed SMPS
Specifications:
Specification | Value |
---|---|
Model | LMF1500-20B24 |
Power | 1500W |
Input Voltage | 85-264VAC |
Output Voltage | 12V-24V |
Output Current | 62.5A |
5V/2A Output | 2A |
Efficiency | Up to 94% |
Dimensions | 230 x 160 x 85mm |
Weight | 4.5kg |
