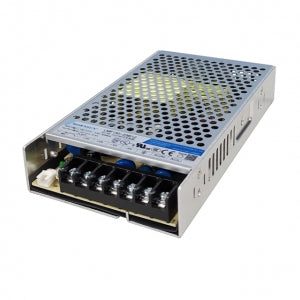

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply
Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply - Buy Online in India

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Rs. 3,689
Rs. 5,040
Rs. 3,689
Save Rs. 1,351
(-27%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: DTIFPS0420
  • Universal input voltage: 85 - 305V AC or 120 - 430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating temperature range: -30℃ to +70℃
  • Built-in active PFC function
  • High I/O isolation test voltage up to 4000VAC
  • Output short circuit, over-current, over-voltage, and over-temperature protection
  • Remote ON-OFF control
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC200
COPY CODE
When you shop for ₹ 5,000 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply
Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply
Rs. 5,040 Rs. 3,689
Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Rs. 5,040 Rs. 3,689
Description

Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

The LMF150-23B24 is a 24V, 151W AC/DC converter from Mornsun. It features a universal input voltage of 85-305V AC or 120-430VDC, dual-use AC/DC input, an operating temperature range of -30? to +70?, built-in active PFC function, high I/O isolation test voltage up to 4000VAC, output short circuit, over-current, over-voltage, and over-temperature protection, remote ON/OFF control, over-voltage class ? (designed to meet EN61558), and operating altitude up to 5000m.

The LMF150-23B24 is a versatile and reliable power supply that can be used in a variety of applications, including industrial, medical, and telecommunications. It is also ideal for use in harsh environments, such as those with extreme temperatures or high altitudes.

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Specifications

Package Includes:

1 x  Mornsun LMF150-23B24 AC/DC Enclosed Switching Power Supply

Specifications

Input voltage 85-305V AC or 120-430VDC
Output voltage 24V
Output current 6.3A
Power 151W
Efficiency 87%
Operating temperature range -30? to +70?
Insulation voltage 4000VAC
