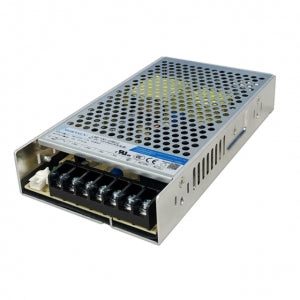

Mornsun LMF100-23B24 AC/DC 100W Enclosed Switching Power Supply
Mornsun LMF100-23B24 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85 - 305V AC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Up to 87% efficiency
- Output short circuit, over-current, over-voltage, over-temperature protection (built-in constant current limiting circuit)
- Remote ON-OFF control
- Safety according to IEC/EN60335, IEC/EN61558
- Emissions meet CISPR32/EN55032 CLASS B without extra components
- IEC/EN/UL62368, GB4943 safety approval
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF100-23B24 AC/DC 100W Enclosed Switching Power Supply
The LMF100-23B24 is an enclosed AC/DC converter from Mornsun. It has a single output of 24V at 4.2A, for a total power output of 100.8W. The input voltage range is 85-305VAC or 120-430VDC. The converter is also conformal coated for protection in harsh environments.
Features:
- Single output of 24V at 4.2A
- Total power output of 100.8W
- Input voltage range of 85-305VAC or 120-430VDC
- Conformal coated for protection in harsh environments
check out : Mornsun LMF75-23B48 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF100-23B24 AC/DC 100W Enclosed Switching Power Supply
Specifications
| Output voltage | 24V |
| Output current | 4.2A |
| Total power output | 100.8W |
| Input voltage range | 85-305VAC or 120-430VDC |
| Dimensions | 170 x 100 x 50mm |
| Weight | 1.5kg |
