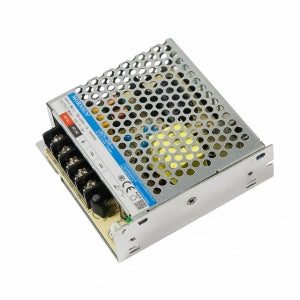

Mornsun LM75-22B36 AC/DC 75W Enclosed Switching Power Supply
Mornsun LM75-22B36 AC/DC 75W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 165 to 264 VAC or 200 to 370 VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30 to +70 degrees Celsius
- Low standby power consumption, high efficiency
- High I/O isolation test voltage of up to 4000 VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- Over-Voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000 meters
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM75-22B36 AC/DC 75W Enclosed Switching Power Supply
The LM75-22B36 is a universal input, enclosed, switching power supply (SMPS) that provides 75 watts of output power at 36 volts DC. It has a universal input voltage range of 90 to 264 VAC and a power factor correction (PFC) efficiency of up to 90%. The LM75-22B36 is also equipped with a number of safety features, including overvoltage protection, overcurrent protection, and short circuit protection.
Features:
- Universal input voltage range of 90 to 264 VAC
- Output voltage of 36 volts DC
- Output current of 2.1 amps
- Power output of 75 watts
- Power factor correction (PFC) efficiency of up to 90%
- Overvoltage protection
- Overcurrent protection
- Short circuit protection
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-22B36 AC/DC 75W Enclosed Switching Power Supply
Specifications:
| Input voltage | 90 to 264 VAC |
| Output voltage | 36 volts DC |
| Output current | 2.1 amps |
| Power output | 75 watts |
| Power factor correction (PFC) efficiency | up to 90% |
| Dimensions | 170 x 100 x 40 mm |
| Weight | 1.2 kg |
