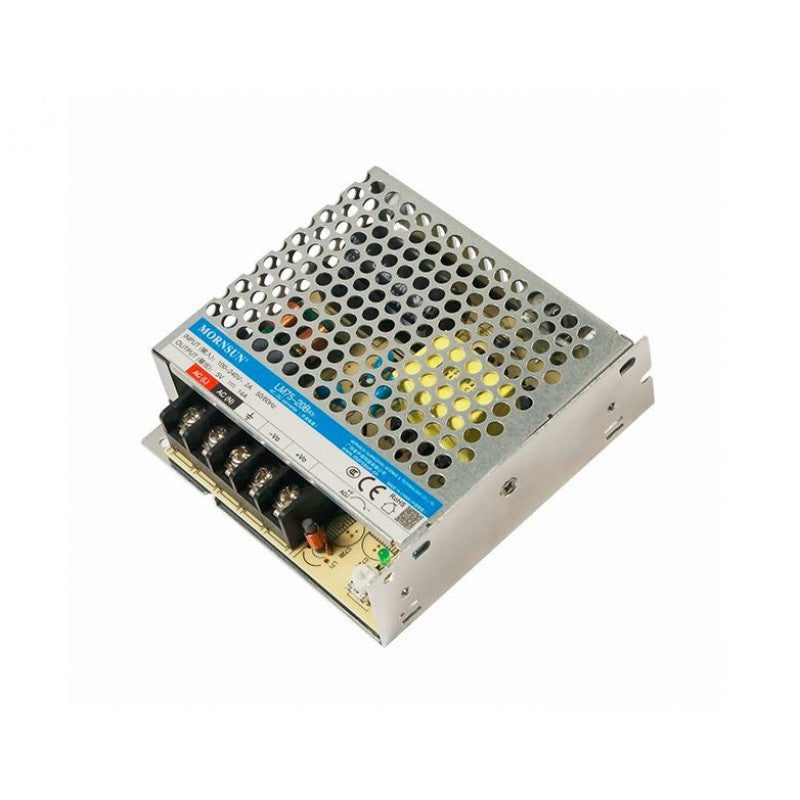

Mornsun LM75-20B36 AC/DC 75W Enclosed Switching Power Supply

The LM75-20B36 series is a line of enclosed AC-DC switching power supplies from Mornsun. These converters feature universal AC input, DC input voltage acceptance, cost-effectiveness, low no load power consumption, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and compliance with IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. They are widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features:

• Universal AC input: The LM75-20B36 series can be powered by any AC input voltage between 85 and 264 VAC.
• DC input voltage acceptance: The LM75-20B36 series can also be powered by a DC input voltage between 120 and 370 VDC.
• Cost-effectiveness: The LM75-20B36 series is a cost-effective solution for a variety of applications.
• Low no load power consumption: The LM75-20B36 series has a low no load power consumption, which can save energy and money.
• High efficiency: The LM75-20B36 series is highly efficient, which can further save energy and money.
• High reliability: The LM75-20B36 series is highly reliable and has a long service life.
• Double or reinforced insulation: The LM75-20B36 series has double or reinforced insulation, which provides safety and protection.
• Excellent EMC performance: The LM75-20B36 series has excellent EMC performance, which helps to reduce interference with other devices.
• Compliance with international standards: The LM75-20B36 series complies with a variety of international standards, which ensures safety and reliability.

The LM75-20B36 series is a versatile and reliable power supply that can be used in a variety of applications. It is a cost-effective solution that offers a number of features, including universal AC input, DC input voltage acceptance, low no load power consumption, high efficiency, high reliability, double or reinforced insulation, excellent EMC performance, and compliance with international standards.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Package Includes:

1 x  Mornsun LM75-20B36 AC/DC 75W Enclosed Switching Power Supply

Specifications:
