- Universal input voltage: 90 - 264VAC or 120 - 373VDC
- Operating ambient temperature range: -30℃ to +70℃
- High efficiency, high reliability, long service life
- LED indicator for power on
- Output short circuit, over-current, over-voltage protection
- High I/O isolation test voltage up to 3000VAC
- Withstand 5G vibration test
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused

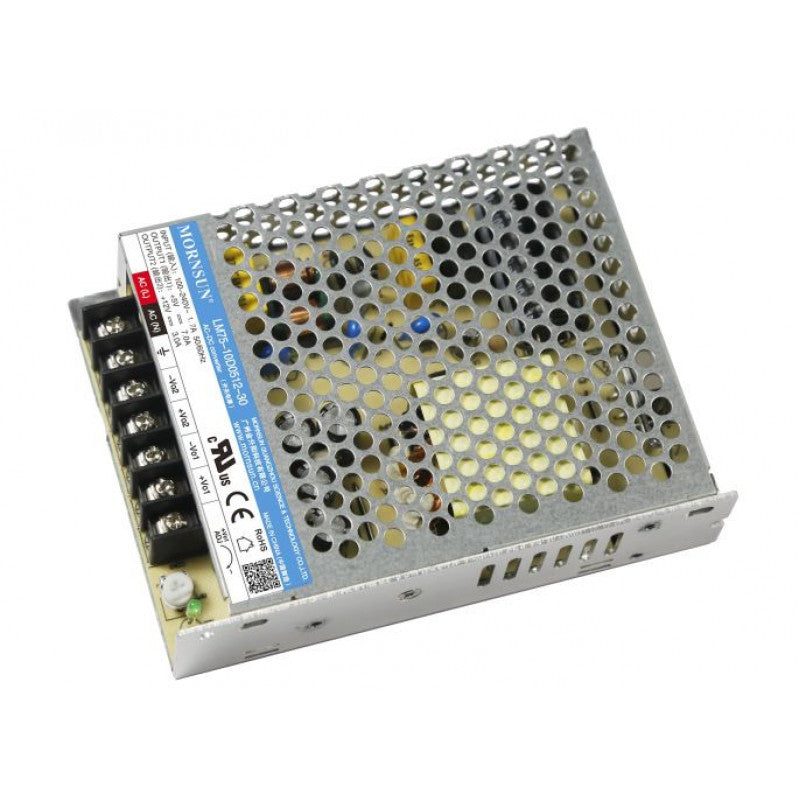

Mornsun LM75-10D0512-30 AC/DC 75W Enclosed Switching Power Supply
The LM75-10D0512-30 is a power converter with two isolated output versions. This means that it can independently supply two different loads in the system without the need for the loads to be connected to each other. The converter can be used in harsh working environments, with an ambient temperature range of -30℃ to +70℃. It does not require a fan for heat dissipation, which makes it ideal for use in noise-sensitive applications. The converter meets the requirements of IEC61000 standard for EMC immunity and CISPR32/EN55032, class B for emission standards. It also meets IEC/EN/UL62368, EN60335, GB4943 safety standards. The converter integrates a variety of protection features, including overvoltage, undervoltage, overload, and short-circuit protection. It offers a high-performance to low-cost ratio, making it an ideal choice for a variety of industries, including industrial control equipment, instrumentation, and smart home and building equipment applications.
Features:
- Two isolated output versions
- Wide temperature range of -30℃ to +70℃
- Fanless design for noise-sensitive applications
- Meets IEC61000, CISPR32/EN55032, IEC/EN/UL62368, EN60335, GB4943 safety standards
- Integrated protection features
- High-performance to low-cost ratio
check out : Mornsun LM75-10D0524-20 AC/DC 75W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM75-10D0512-30 AC/DC 75W Enclosed Switching Power Supply
Specifications:
Type | Enclosed Type Dual Output |
Output Power | 71W |
Series | LM75-10D |
Part Number | LM75-10D0512-30 |
Mechanical Form | Enclosed |
IP Level | Non-Waterproof |
Output Voltage | 5V, 12V |
Output Current | 7A, 3A |
