Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS - Buy Online in India

Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

Rs 6,747/-
- 27%
Rs 6,747/-
Rs 9,218/-
Save Rs 2,471/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: DTIFPS0206
  • Input voltage range: 176 - 264VAC or 240- 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -20℃ to +60℃
  • LED indicator for power on
  • Operating up to 5000m altitude
  • Over-temperature protection, output short circuit, over-current, over-voltage protection
  • Built-in DC fan
  • Remote sense function

This product is not available for store pickup. Apologies for the inconvenience caused

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS
Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS
Rs 9,218/- Rs 6,747/-
Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

Rs 9,218/- Rs 6,747/-
Description

Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

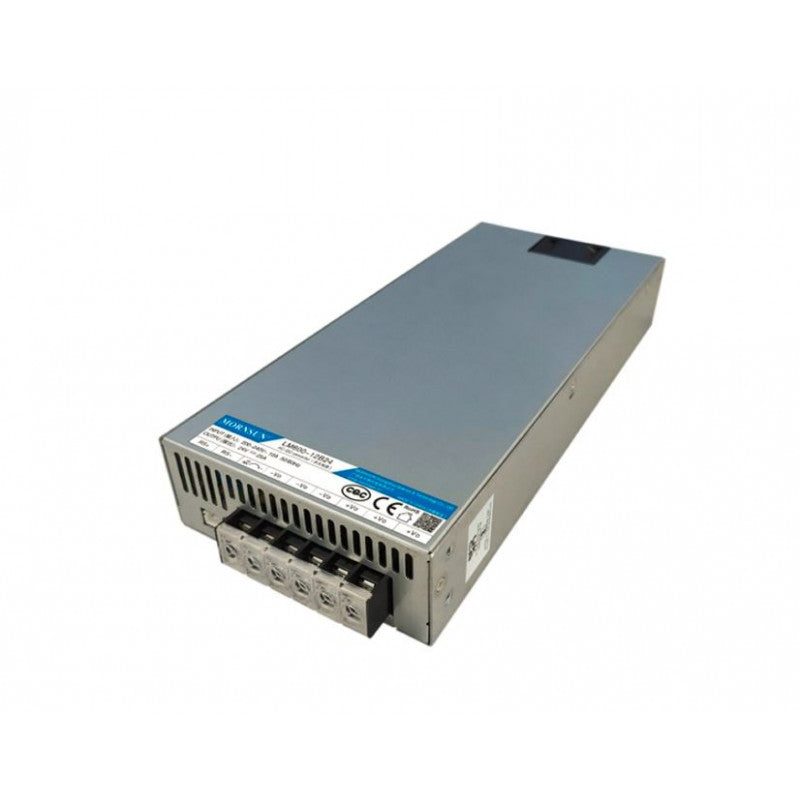

The LM600-12B36 series is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, and high reliability. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

  • Universal AC input
  • Accepts DC input voltage
  • Cost-effective
  • Low no-load power consumption
  • High efficiency
  • High reliability
  • Excellent EMC performance
  • Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards
  • Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications

check out : Mornsun LM600-12B24 AC/DC 600W Enclosed SMPS

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM600-12B12 AC/DC 600W Enclosed SMPS

Specifications

Package Includes:

1 x Mornsun LM600-12B36 AC/DC 600W Enclosed SMPS

Specifications:

Type Enclosed Type Single Output
Output Power 597.6W
Series LM600-12B
Part Number LM600-12B36
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 36V
Output Current
 16.6A
