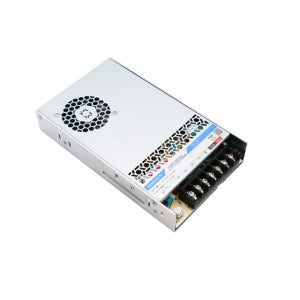

Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS
Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 176 - 264VAC or 240 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -40℃ to +85℃
- Low standby power consumption: <0.75W@230VAC
- Output short circuit, over-current, over-voltage protection, over-temperature protection
- Operating altitude up to 5000m
- Over-voltage class Ⅲ (designed to meet EN62477)
- Safety according to IEC/UL/EN/BS EN62368, EN60335, EN61558, EN62477, GB4943
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS
The LM350-22B24R2 is a 350W enclosed AC/DC power supply from Mornsun. It has a universal AC input of 176-264VAC or 240-370VDC, and a single output of 24V at 14.6A. The efficiency of the power supply is up to 88%, and it has a low no-load power consumption of <0.5W. The power supply is also certified to meet the following standards:
- IEC/EN61000-4
- CISPR32/EN55032
- UL/EN/IEC/BS EN62368
- EN/IEC60335
- EN651558
- EN62477
- GB4943
The LM350-22B24R2 is suitable for a wide range of applications, including industrial control, LED lighting, and telecommunications.
check out : Mornsun LM350-22B15R2 AC/DC 350W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM350-22B24R2 AC/DC 350W Enclosed SMPS
Specifications:
| Specification | Value |
|---|---|
| Power | 350W |
| Input voltage | 176-264VAC or 240-370VDC |
| Output voltage | 24V |
| Output current | 14.6A |
| Efficiency | up to 88% |
| No-load power consumption | <0.5W |
| Dimensions | 210 x 120 x 60mm |
| Weight | 2.5kg |
