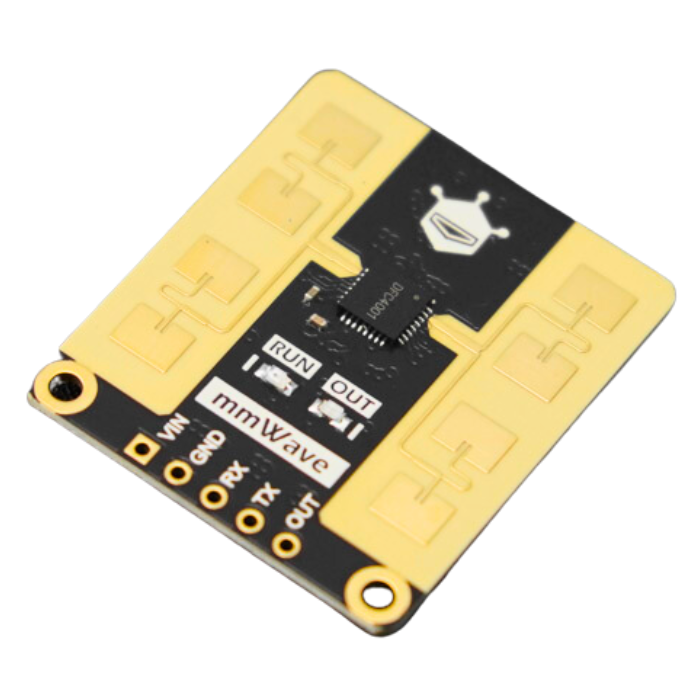

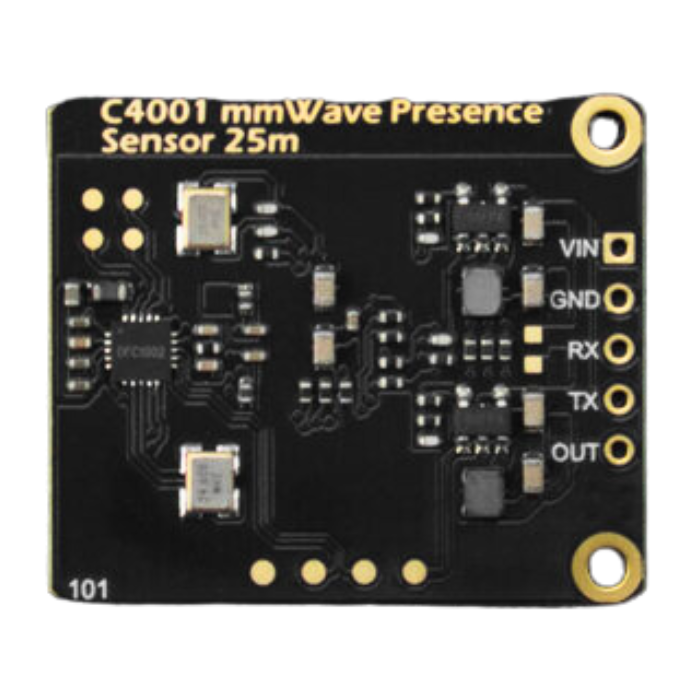

mmWave-C4001 24Ghz Human Presence Detection Sensor
mmWave-C4001 24Ghz Human Presence Detection Sensor
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Contact form
Human Detection: The C4001 24GHz radar sensor measures up to 25 meters and is suitable for real-time human presence detection. Ensures highest quality and durability. Available in various sizes.
Long-Range Measurement: Includes high-precision FMCW technology for accurate distance and speed measurement. Perfect for industrial automation and environmental monitoring.
Advanced Technology: Features state-of-the-art FMCW modulation for superior accuracy and reliability. Ideal for motion detection and proximity sensing.
Durable Build: Made with robust materials to provide reliable performance. Suitable for harsh conditions, perfect for outdoor and industrial use.
Easy Integration: Designed for seamless compatibility with Arduino Uno. Simplifies setup and enhances project capabilities.
Strong Anti-Interference: Resistant to temperature changes, ambient light, and noise, ensuring consistent performance in diverse environments.
Compact Design: Small size and versatile installation options make it easy to integrate into various projects.
mmWave-C4001 24Ghz Human Presence Detection Sensor
The DFRobot C4001 24GHz Millimeter-Wave FMCW Radar is the perfect solution for human presence detection. It features long-range measurement, high accuracy, advanced FMCW technology, durable build, easy integration, and strong anti-interference capabilities.
Made with robust materials, this radar sensor ensures reliable performance in harsh conditions. Its state-of-the-art FMCW modulation provides superior accuracy, making it ideal for motion detection and proximity sensing.
The compact design and versatile installation options simplify setup and enhance project capabilities. The C4001 radar sensor measures up to 25 meters and is suitable for real-time human presence detection. Available in various sizes.
Features:
- Human detection: Detection range up to 16 meters and motion detection range up to 25 meters.
- Distance detection: Range from 1.2 meters to 25 meters.
- Velocity detection: Range from 0.1 meters per second to 10 meters per second.
- Strong anti-interference capability, unaffected by snow, haze, temperature, humidity, dust, light, noise, etc.
- High and low-level output control through I/O ports.
- Input and output control via serial port.
- Small size, easy to integrate.
Applications:
- Human Detection
- Distance and Velocity Detection
- Environmental Monitoring
- Industrial Automation
- Real-time Monitoring and Tracking

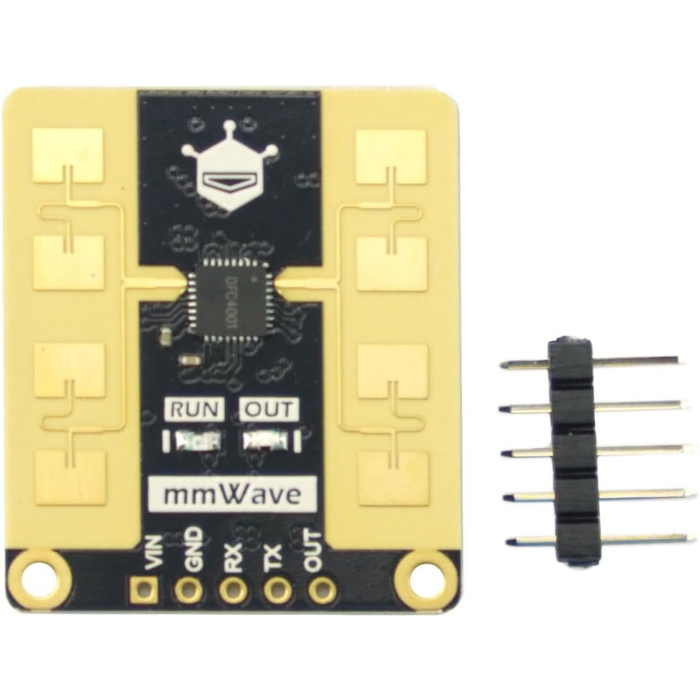

Package Includes:
- C4001 mmWave Presence Sensor 25m× 1
- 5-pin header
Specifications:
| Operating Voltage | 3.3/5V |
| Maximum Detection Range | 25 meters |
| Beam Angle | 100° horizontally, 40° vertically |
| Modulation Mode | FMCW (Frequency Modulated Continuous Wave) |
| Operating Frequency | 24GHz |
| Velocity Detection Range | 0.1 to 10 meters per second |
| Operating Temperature | -40°C to 85°C |
| Communication Interface | UART |
| Baud Rate | 9600 |

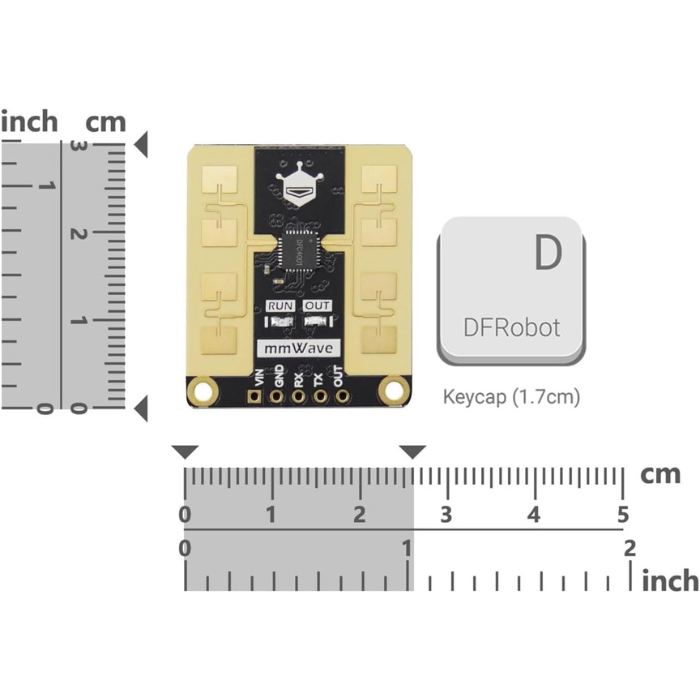

| Dimensions | 26mm x 30mm |
| Detection Range (Presence) | Up to 16 meters |
| Anti-Interference Capability | Resistant to temperature, light, noise, and dust |
| Output Control | High and low-level output via I/O ports, serial port |
| Weight | Lightweight and easy to integrate |
