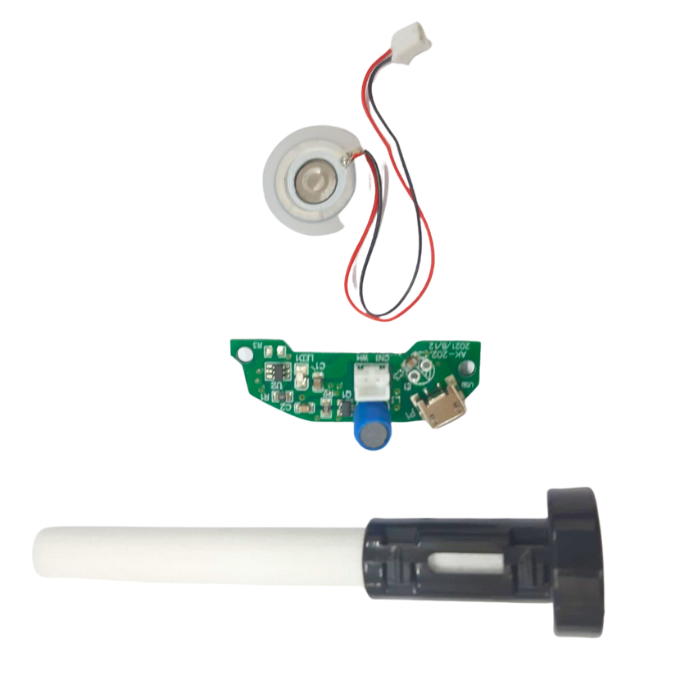

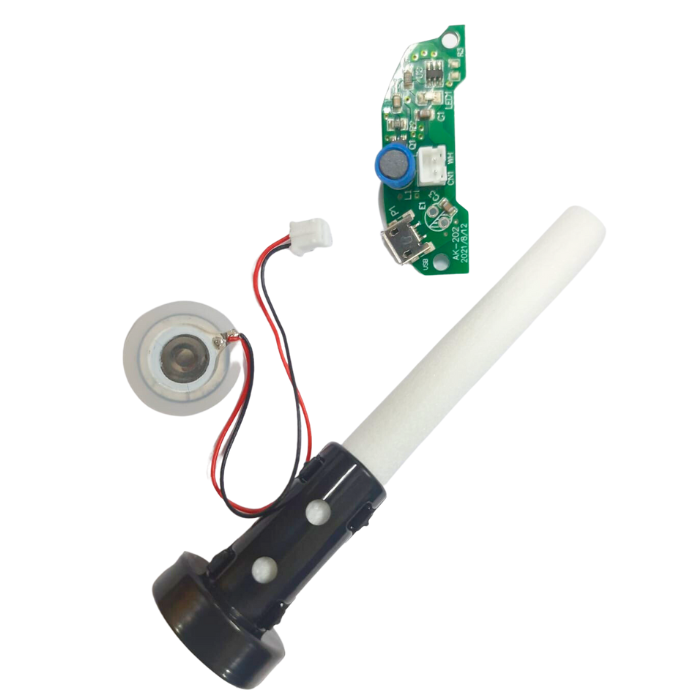

Mini USB Nebulizer Circuit 5VDC 2W 108Khz
Couldn't load pickup availability

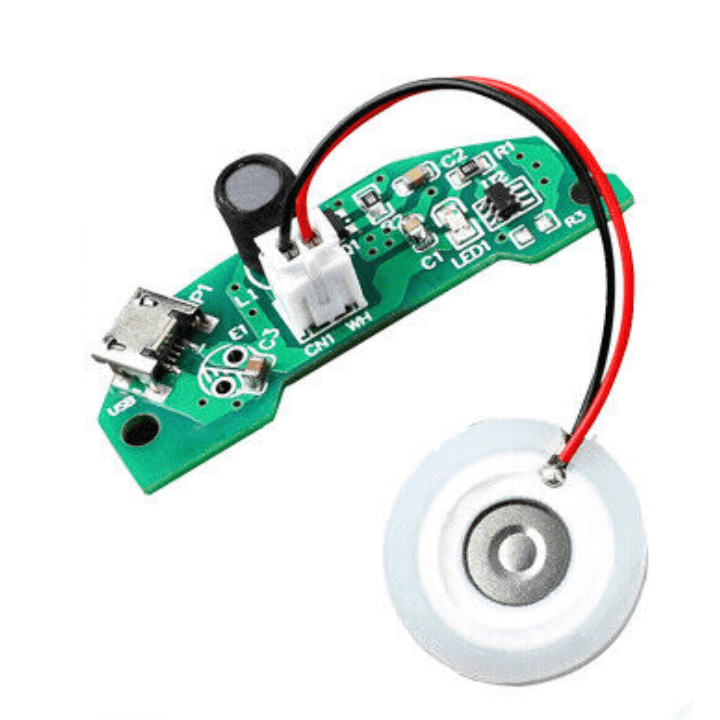

The circuit board product voltage is MICRO USB 5V, current 300mA, power 2W, frequency 113KHz\108KHz, and special drive chip for fixed frequency atomizer. Immediately after power-on, the amount of output is large. With 8-hour timing function, an external switch can be used to control the opening and closing of the atomizer.
These waves are used to create the mist that can be inhaled. The circuit sensor also likely includes a power supply, such as a 5VDC USB connection, to provide power to the transducer, and a control circuit to regulate the frequency of the ultrasonic waves, in this case, 108Khz. This type of nebulizer circuit is portable and can be powered by a USB connection, making it easy to use and carry around.
| Working voltage | 2.8V-6V |
| Working frequency | 108/112KHz |
| Resonant frequency (Fr) | 113 ± 3KHz |
| Dimensions | 5 x 4 x 1cms |
| Weight | 5 grams |
