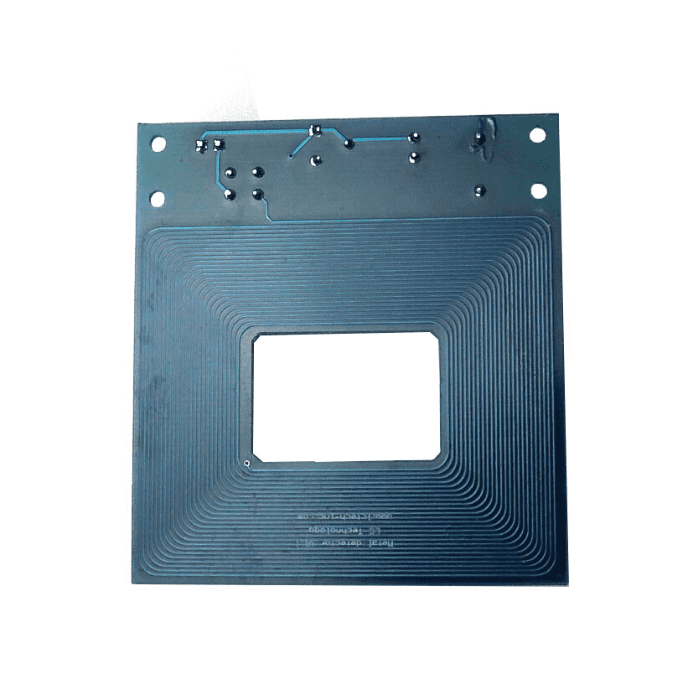

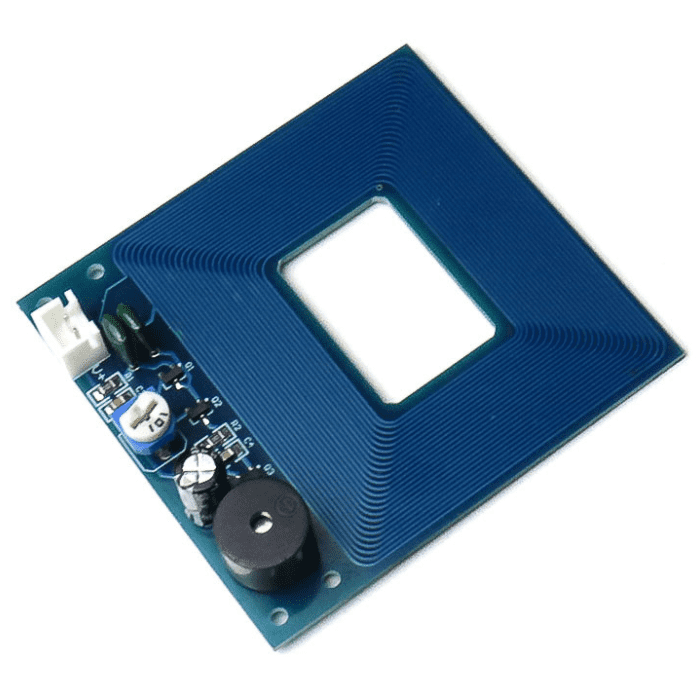

Metal Detector Sensor Module
Metal Detector Sensor Module
A metal detector sensor module is a device that uses electromagnetic induction to detect the presence of metal objects. The module typically consists of a transmitter coil that generates a magnetic field, and a receiver coil that detects changes in the magnetic field caused by the presence of metal.When a metal object comes into proximity of the sensor, it will disrupt the magnetic field and the sensor will generate an output signal indicating the presence of metal. These types of sensor can be used in a variety of applications, such as security systems, industrial automation, and even in hobby projects. The output can be digital or analog, some modules can even provide the depth of the metal.
You can use this LC Metal detector non-contact metal induction detection module as a metal detector. When it approaches any metal, it makes a sound. This is a module specifically designed to detect metal. The module operates by inducing currents in metal objects and responding when it occurs. A nice onboard buzzer signals when it detects something and an onboard potentiometer allow adjustment of sensitivity.
The power cables of the Metal detector non-contact metal induction detection module will need soldering on for the module to function, positive to the outside of the module and negative between the potentiometer and an electrolytic capacitor.
Features:
- “V+” ↔ Connect to power positive
- “V-” ↔ connect to power negative
- Adjust the potentiometer to vary the detection range and strength.
- Small and easy to use the module.
- It comes with a Buzzer for metal detection indication.
Package Includes:
- 1 x Metal Detector Sensor Module
Specifications
| Operating voltage | 5V DC |
| Detector distance | 1CM |
| Dimensions | 11 x 9 x 5cms |
| Weight | 50 grams |
1.Which sensor is used in metal detector?
- A metal detector sensor module is a device that contains the sensor and electronics needed to detect metal objects. The sensor module in a metal detector typically consists of an induction coil, which is a type of electromagnetic sensor that generates a magnetic field and can detect changes in the field caused by the presence of metal objects. The sensor module may also include electronics such as amplifiers, filters, and comparators to process the signals from the induction coil and to provide an output indicating the presence of metal.
2.How does a metal sensor work?
- The metal sensor module designed specifically to detect metal. The module works by inducing currents in metal objects and responding to them when they occur. The module generates a magnetic field and detects changes in the field caused by metal objects. When something is detected, a nice onboard buzzer alerts you, and an onboard potentiometer allows you to adjust the sensitivity.
3.Does metal detector detect gold?
- Yes, metal detectors can detect gold, as well as other types of metal. Metal detectors work by emitting a magnetic field and detecting the presence of metal within that field. When the detector comes into close proximity with metal, it produces an electrical current, which is then amplified and processed by the detector's electronics. This process allows the detector to distinguish between different types of metal and to alert the user when it has detected a specific type of metal.
4.What is the price of metal detector in India?
- Basic metal detector sensors can cost between 159 and 237 dollars at robocraze. It's important to keep in mind that the price of a metal detector is not necessarily indicative of its performance or effectiveness
