15-03-2024
Met the expectations
No defects found. Loudness varies with input voltage. Worked well within the 5V to 15V range.
Robocraze
MB35M - 35mm Musical
MB35M - 35mm Musical
Out of stock
Regular price
Rs. 55
Regular price
Rs. 72
Sale price
Rs. 55
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is a MB35M - 35mm Musical Buzzer
- It has a operating voltage of 5 - 15V DC
- Frequency Response is Good
- Size is small and is Simply Compatible with other Microcontrollers like Arduino and Node MCU
- Energy Consumption is less
- The Range of Voltage usage is Large

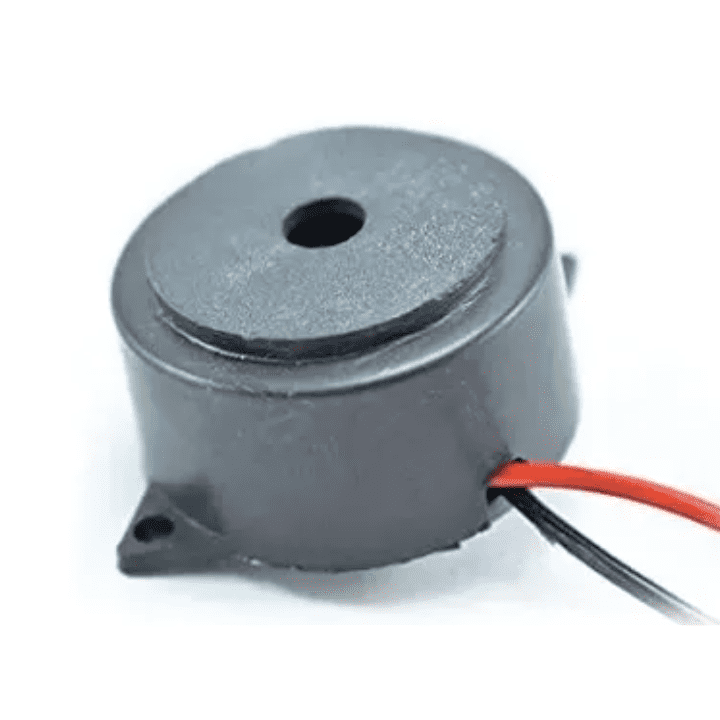

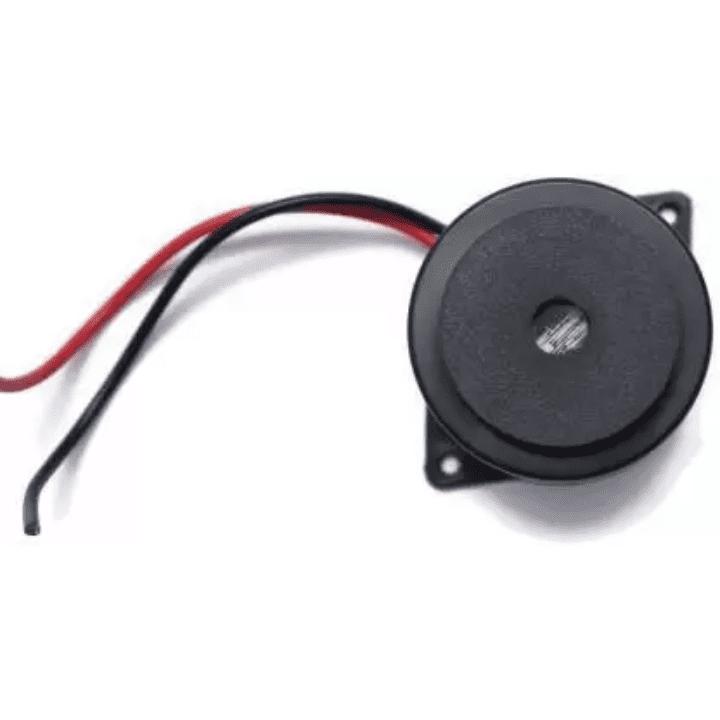

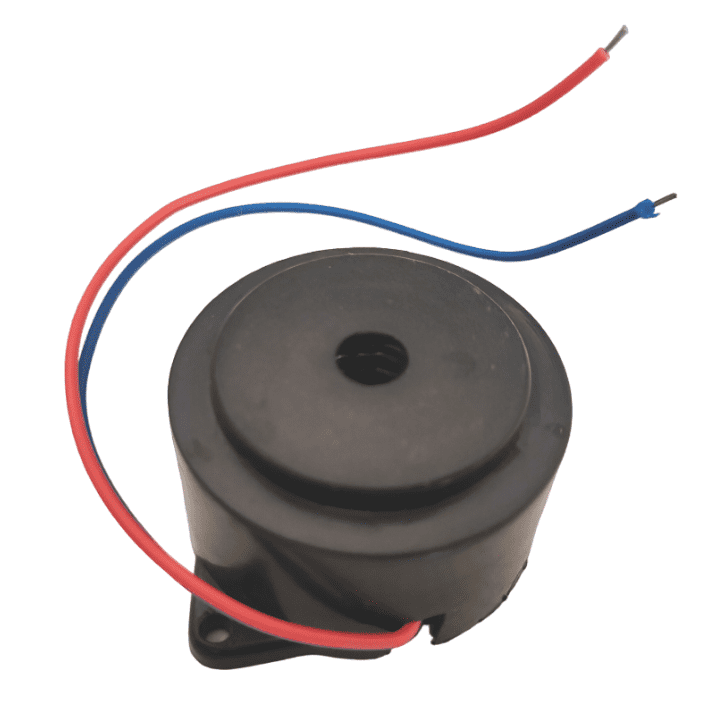

MB35M - 35mm Musical Buzzer
An audio signaling device like a beeper or buzzer may be electromechanical or piezoelectric or mechanical type. The main function of this is to convert the signal from audio to sound. Generally, it is powered through DC voltage and used in timers, alarm devices, printers, alarms, computers, etc. Based on the various designs, it can generate different sounds like alarm, music, bell & siren.
Applications:
- Electrical alarms
- Educational purposes
- Security applications
- Electronic Metronomes
- Household applications
- Communication Devices
Package Includes:
- 1 x MB35M - 35mm Musical
Specifications:
| Minimum sound level | 90db |
| Oscillation frequency | not applicable |
| Current consumption | Maximum 20mA |
| Operating voltage | 5 to 15 VDC |
| Tone | Musical |
| Mounting | Flange Type |
| Wire/Lead length | 120mm 2 wire |
| Height | 24.5mm |

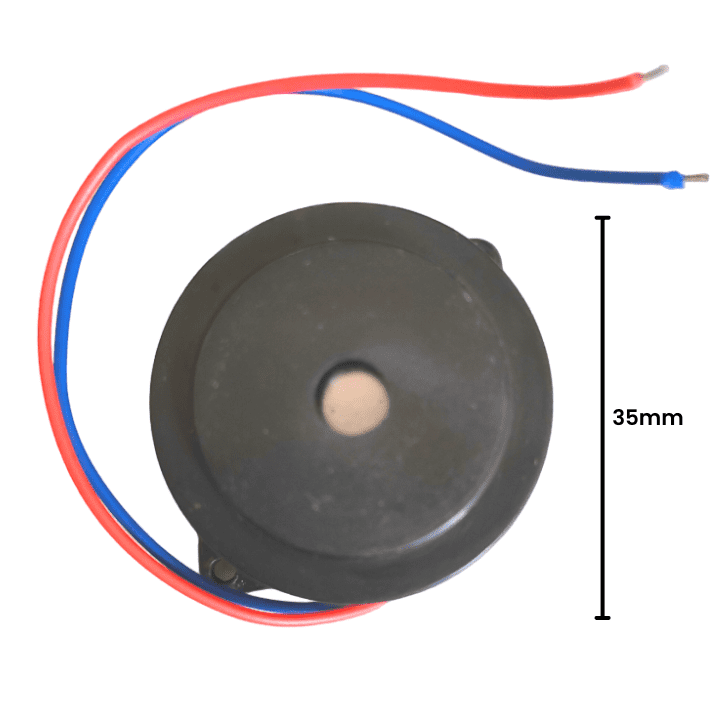

| Diameter | 35mm |
| Pitch | 47.5mm |
| Operating temperature range | 20 to 50 °C |
