- This is MAX30100 Pulse Oximeter Heart Rate Sensor Module (Pack of 25)
- The MAX30100 is an integrated pulse oximetry and heartrate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.
- The MAX30100 operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current permitting the power supply to main connected at all times.
- Optical sensor: IR and red led combined with photodetector measures absorbance of pulsing blood i2c interface plus int pin 3.3V power supply
- Applications developing algorithms for pulse oximetry and heart rate readings through the tip of a finger

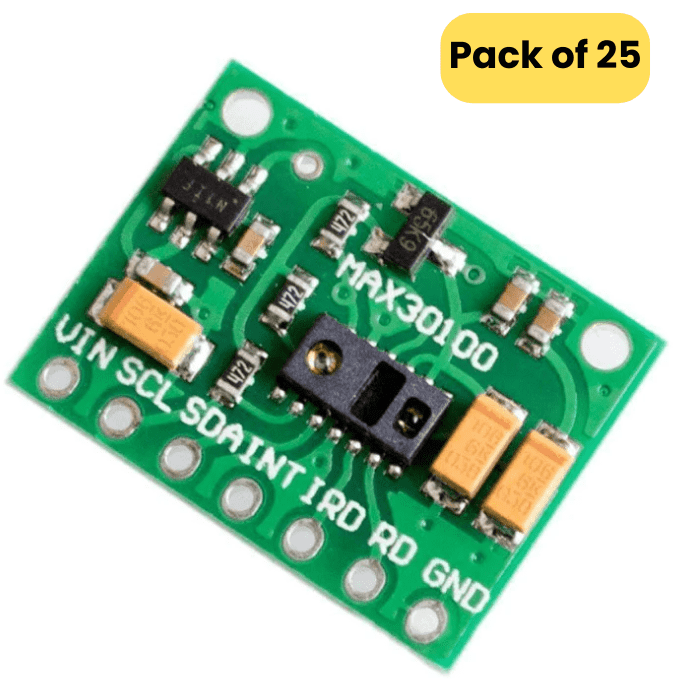

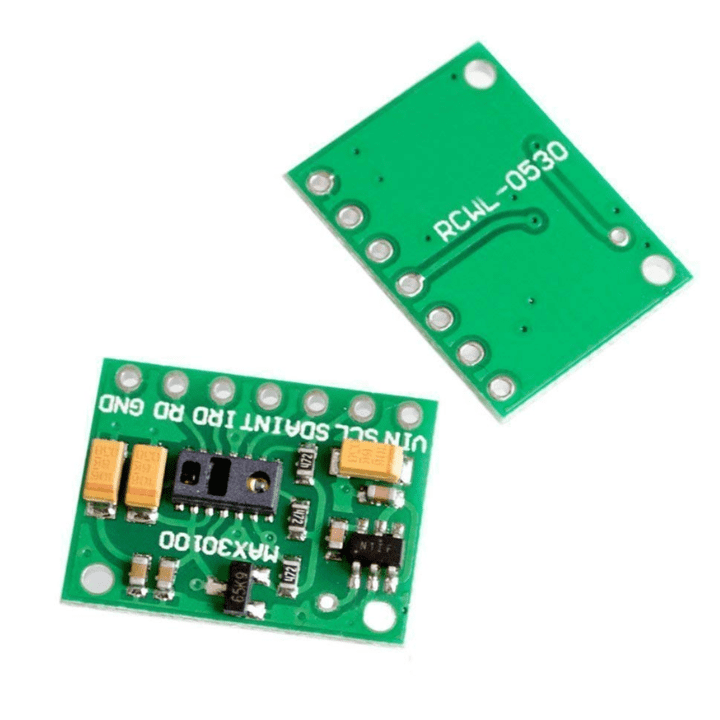

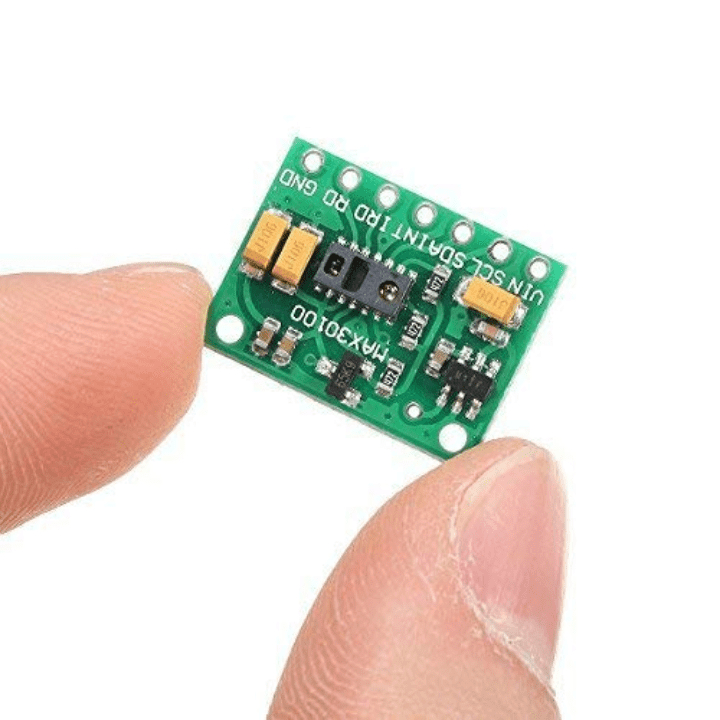

MAX30100 Pulse Oximeter Heart Rate Sensor Module
MAX30100 Pulse Oximeter Heart Rate Sensor Module is an integrated pulse oximeter and heart-rate monitor sensor solution. It’s an optical sensor that derives its readings from emitting two wavelengths of light from two LEDs – a red and an infrared one – then measuring the absorbance of pulsing blood through a photodetector. This particular LED colour combination is optimized for reading the data through the tip of one’s finger. It is fully configurable through software registers and the digital output data is stored in a 16-deep FIFO within the device. It has an I2C digital interface to communicate with a host microcontroller.
The pulse oximetry subsystem in MAX30100 sensor consists of ambient light cancellation (ALC), 16-bit sigma delta ADC, and proprietary discrete time filter. It has an ultra-low-power operation which makes it ideal for battery operated systems. MAX30100 operates on a supply in the range of 1.8 to 3.3V.It can be used in wearable devices, fitness assistant devices, medical monitoring devices, etc. The MAX30100 operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Heart Rate Pulse Sensor Module
Microwave Radar Human Body Sensor
Muscle Sensor Kit
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 25 x MAX30100 Pulse Oximeter Heart Rate Sensor Module
Specifications:
| Working voltage |
1.8 ~ 5.5V |
| Shutdown Current |
0.7µA |
| Color |
Green |
| Dimensions(mm) |
19 x 14.5 x 3 |
| Weight (gm) |
2 |
Specifications:
1.8 ~ 5.5V
Specifications:
0.7µA
Specifications:
Green
Specifications:
19 x 14.5 x 3
Specifications:
2
1.What is a MAX30100 Pulse Oximeter Heart Rate Sensor Module?
- A MAX30100 Pulse Oximeter Heart Rate Sensor Module is a sensor that may be used to detect a person's heart rate and blood oxygen saturation (SpO2). It detects the quantity of oxygen in the blood using infrared and red light sensors and then determines the heart rate. It is small and simple to use, and it can be connected to a microcontroller such an Arduino to read and analyse data.
2.How does the MAX30100 Pulse Oximeter Heart Rate Sensor Module work?
- The sensor operates by directing infrared and red light into the blood vessels of the finger and detecting how much light is absorbed. The absorbed ratio of infrared and red light is used to compute the quantity of oxygen in the blood, known as the SpO2 level. The sensor also calculates the heart rate by analysing changes in light absorption over time.
3.What are some common applications of the MAX30100 Pulse Oximeter Heart Rate Sensor Module?
- The MAX30100 Pulse Oximeter Heart Rate Sensor Module is widely utilised in applications such as monitoring patients' heart rates and oxygen levels in hospitals and clinics, fitness and sports training, sleep monitoring, and even toys. It has a wide range of applications, including research, education, and personal use.
