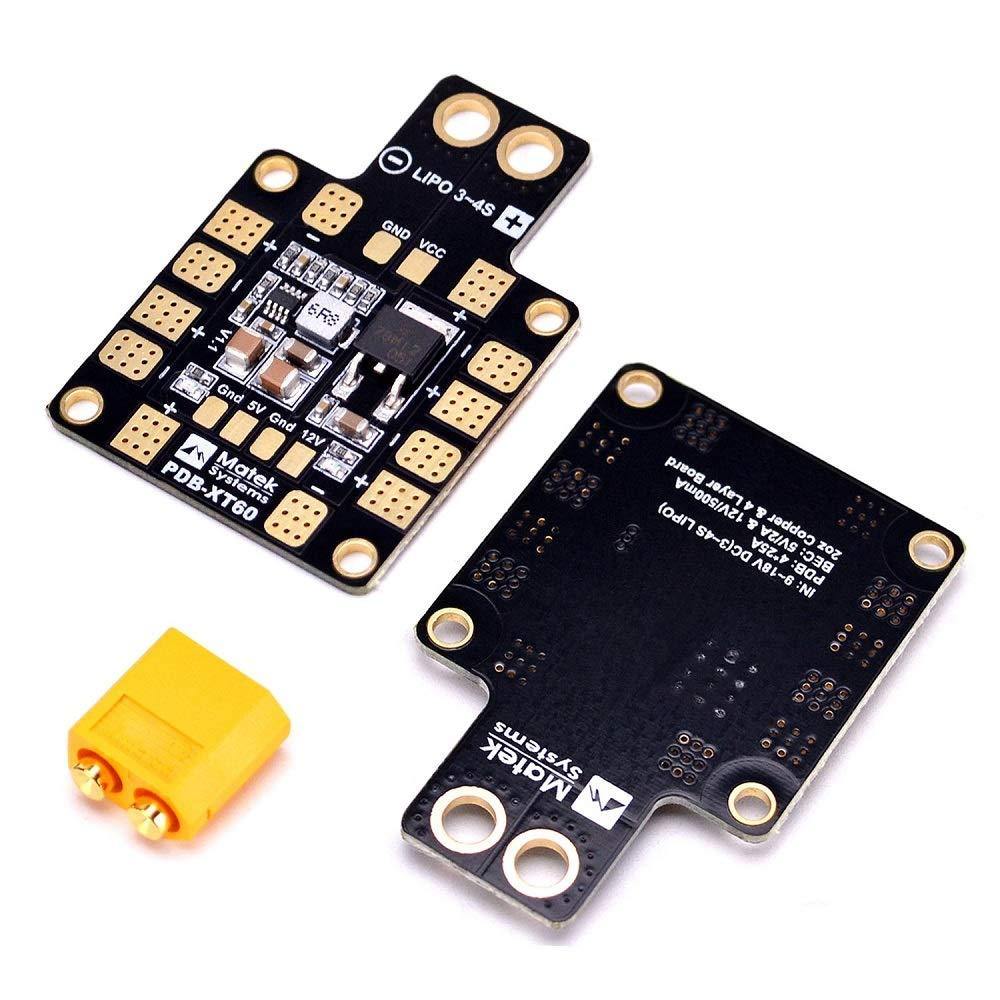

Matek Systems PDB-XT60 Power Distribution Board

Matek Systems PDB-XT60 Power Distribution Board

Regular price Rs. 294
Regular price Rs. 435 Sale price Rs. 294
Sale Sold out 32% off Best Price Guaranteed
You save Rs. 141
Incl. GST (No Hidden Charges)

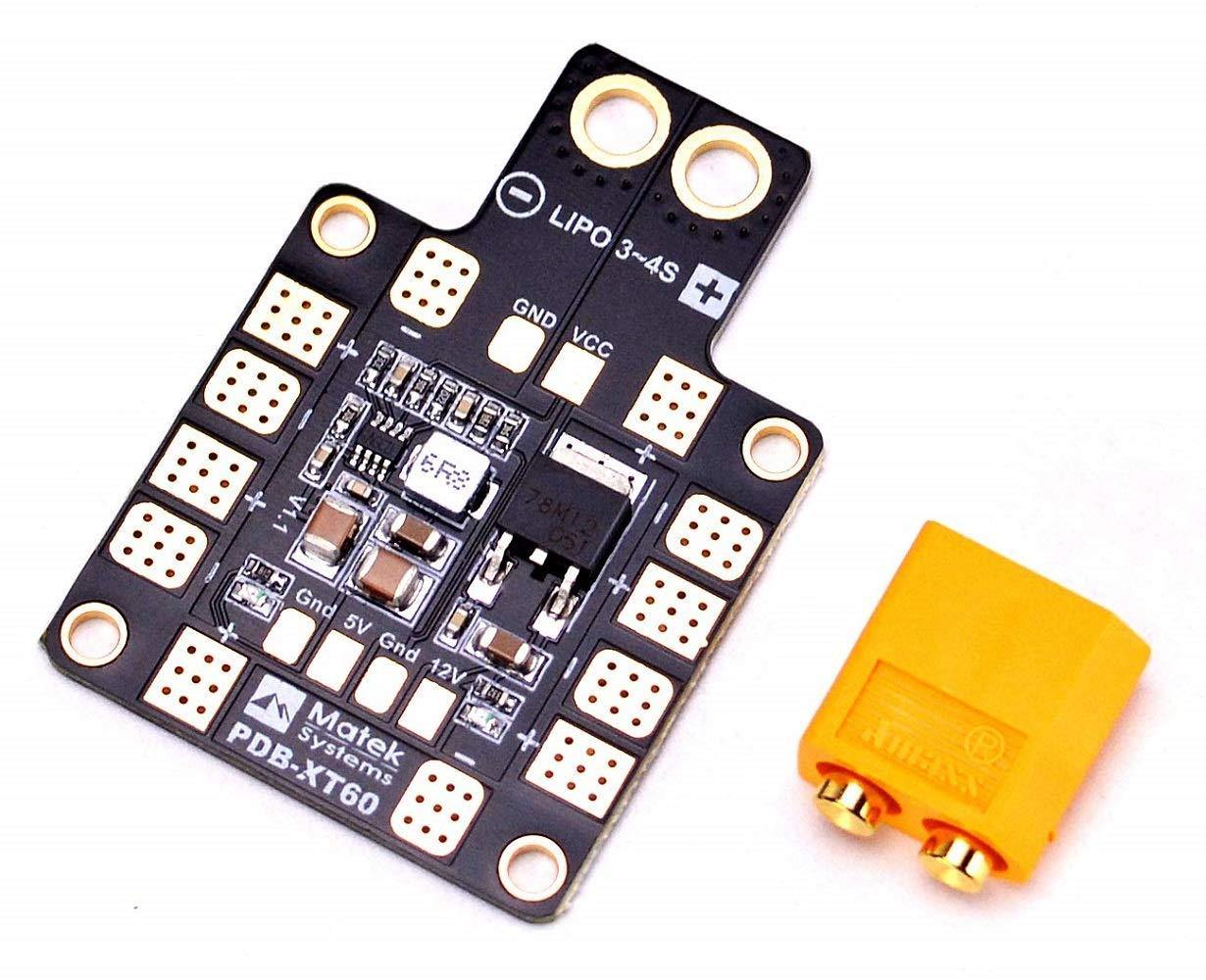

  • The pdb-xt60 offers an authentic amass xt60 plug to connect the lipo pack conveniently
  • 4-layer pcb board, high current power and bec stratification avoid ground disturbance bec power current
  • This pdb board makes the wiring nice, with the bonus of having the xt60 option.
  • Stacked right on top of the cc3d with plenty of room. Total 6 pairs esc solder tabs are fit for h or x type frame.

Matek Systems PDB-XT60 Power Distribution Board

The Matek PDB power distribution board has been engineered to provide the highest possible performance and reliability in a 36 x 50mm and 4 layers PCB.

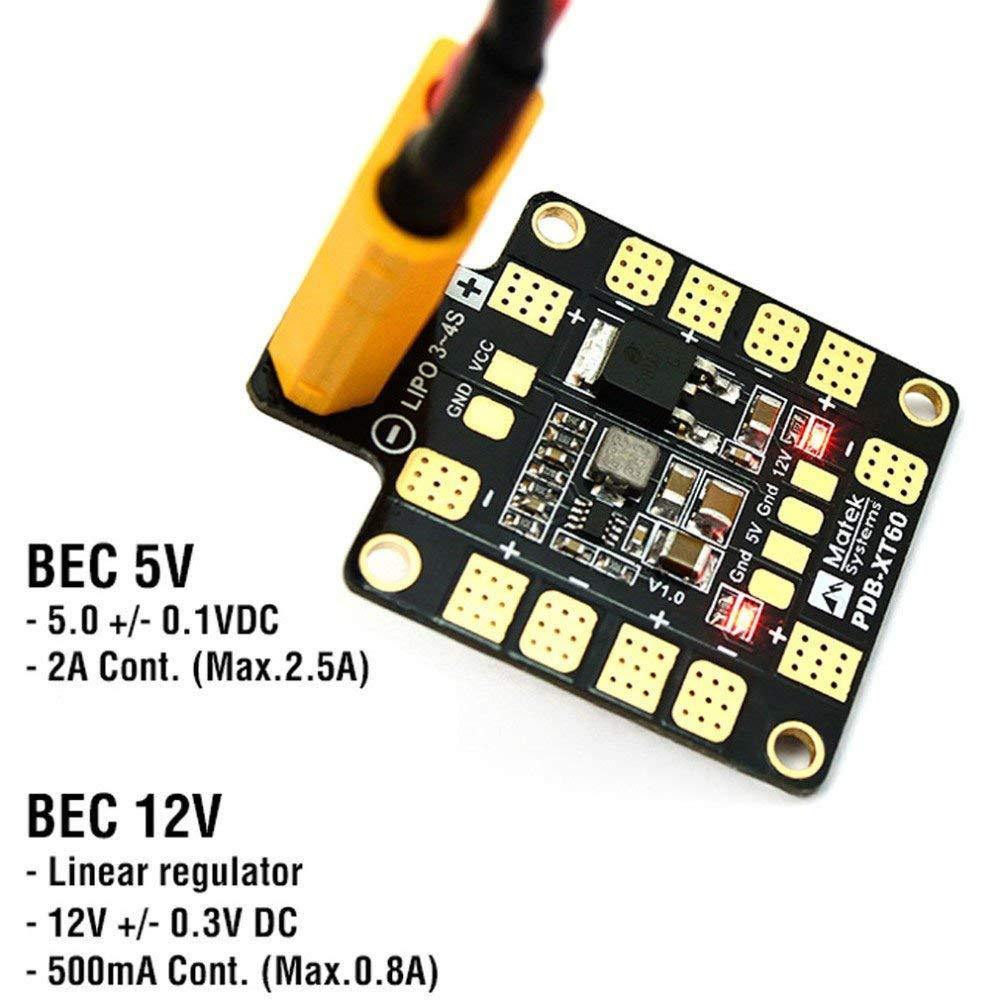

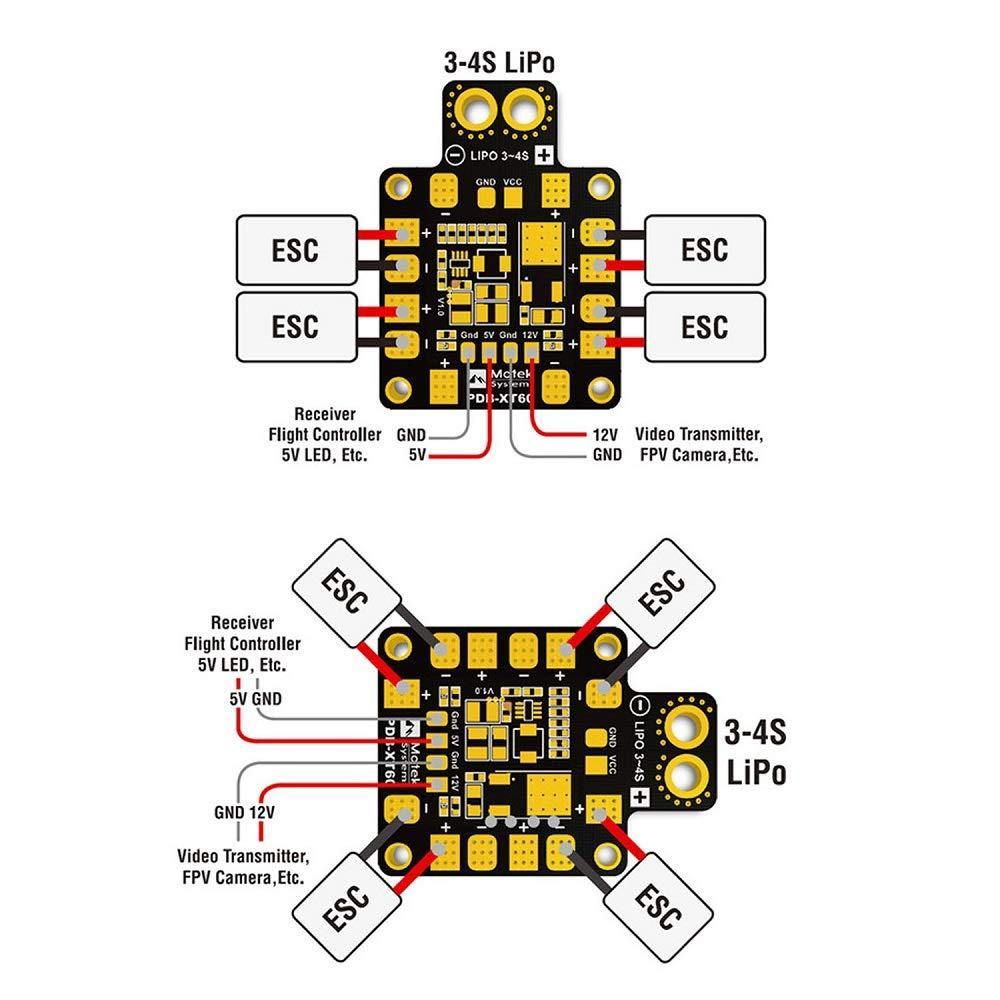

It distributes power from a lipo pack to 6 ESC's, as well as providing synchronized regulated dc 5v outputs and linear regulated dc 12v for powering cameras, servos, RC receivers, flight controllers, video transmitters, LEDs, etc.

Package Includes:

  • 1 x Matek Systems PDB-XT60 Power Distribution Board
  • 1 x XT60 Connector

Specifications:

Output Continuous Current 25A @4 and 15A @6
Short Circuit Tolerant Voltage 9 to 18 V
Track Material 2oz Copper
Dimensions 3 x 2 x 1cms
Weight 5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is PDB XT60?

  • It distributes power from a lithium-ion battery pack to six esc's and provides synchronized regulated dc 5v and linear regulated dc 12v outputs for powering cameras, servos, RC receivers, flight controllers, video transmitters, LEDs, and other devices. The PDB xt60 includes an authentic amass xt60 plug for easily connecting the li-po pack.

2.How do I choose a power distribution board?

  • The main safety consideration when selecting a PDB for your drone is that the PDB can handle the amount of current that must pass through it. To determine this, simply check the ratings of your ESCs on your multicopter to determine the maximum total current draw.
