- RJ45 MagJack Ethernet breakout board for breadboard projects
- Features integrated magnetics for 10/100 Base-T Ethernet
- Pre-soldered MagJack connector with built-in status LEDs and shielding
- Easy connectivity to microcontrollers, sensors, and other devices
- Ideal for IoT, industrial automation, and robotics applications
MagJack RJ45 Ethernet Connector Breakout Board -7Semi

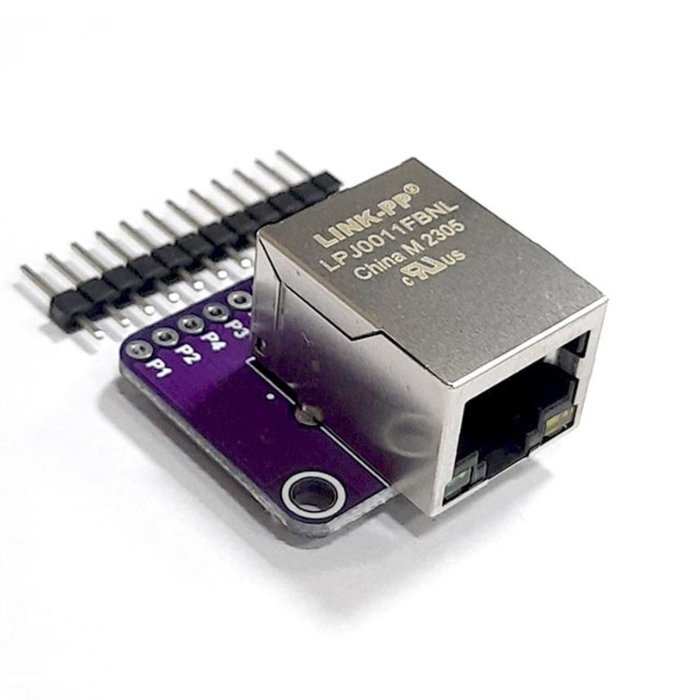

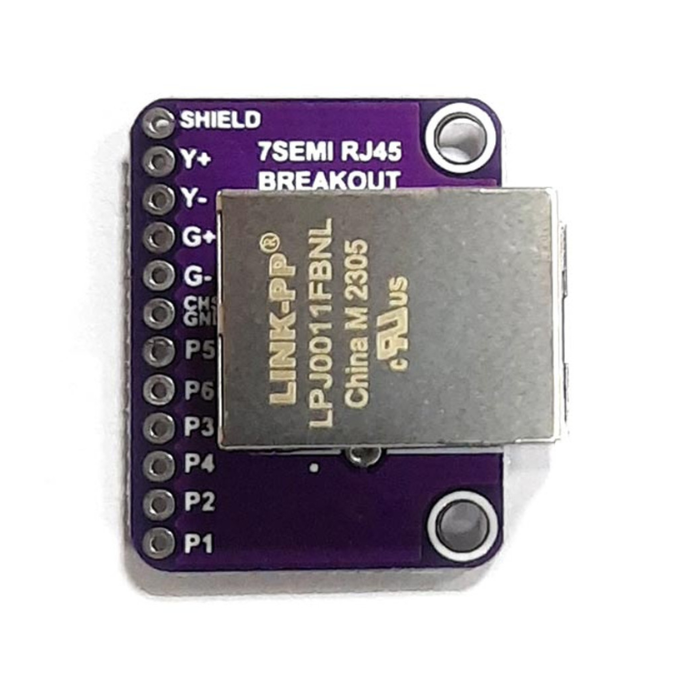

The 7Semi MagJack RJ45 Ethernet Connector Breakout Board is a robust and user-friendly solution for adding Ethernet connectivity to your electronic projects.
Equipped with the high-performance LPJ0011FBNL RJ45 connector and integrated 10/100 Base-T magnetics, this breakout ensures stable and efficient data transmission.
Its pre-soldered design, complete with status LEDs and shielding, eliminates the need for manual assembly and offers excellent protection from electromagnetic interference. With all necessary pins easily accessible, this board simplifies connections to microcontrollers, sensors, and more.
Whether you're working on IoT systems, industrial automation, or robotics, the 7Semi RJ45 MagJack Breakout Board provides a reliable, cost-effective, and easy-to-use networking solution.
Features:
-
LPJ0011FBNL Single Port RJ45 Connector
-
10/100 Base-T Integrated Magnetics for reliable Ethernet performance
-
Pre-soldered MagJack for plug-and-play convenience
-
Onboard status LEDs and shielding for EMI protection
-

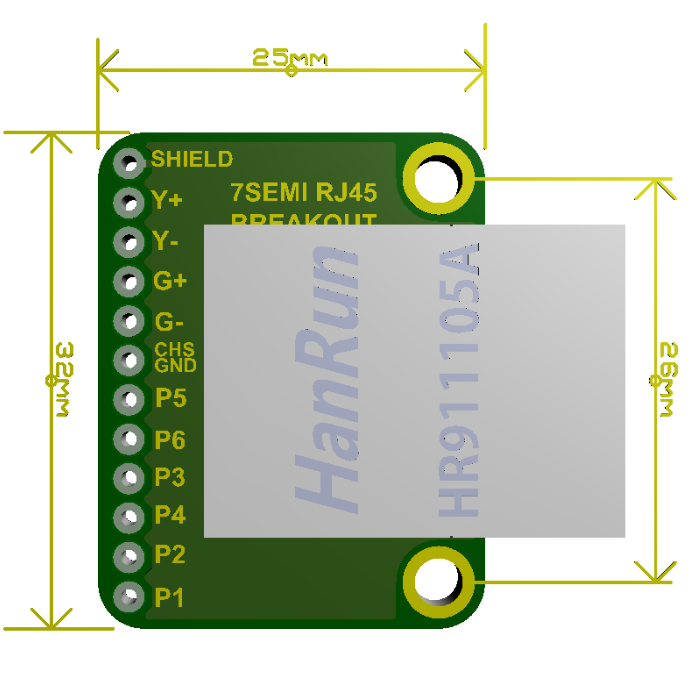

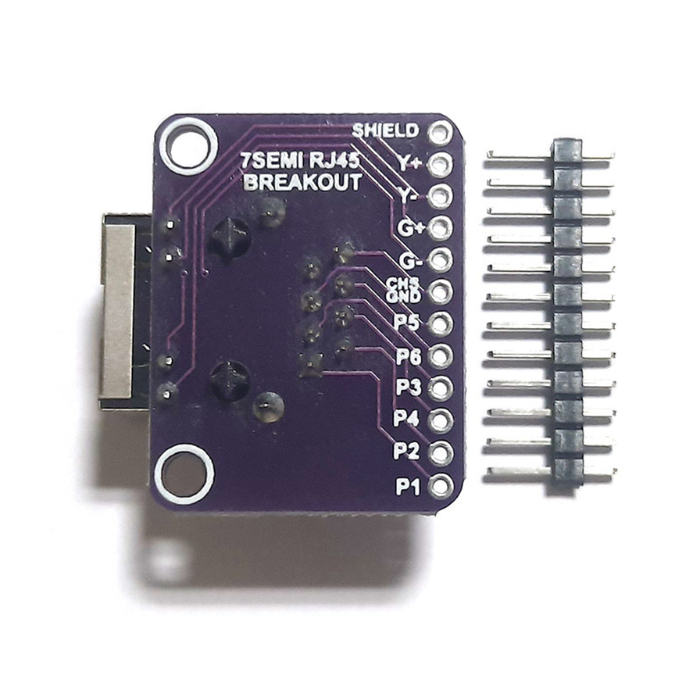

Breaks out all essential pins: P1–P6, Y+, Y-, G+, G-, GND, and Shield
- Compact PCB form factor for easy integration into projects
Package Includes:
- 1 x MagJack RJ45 Ethernet Connector Breakout Board -7Semi
Specifications:
| Specification | Details |
|---|---|
| Connector Type | RJ45 MagJack (LPJ0011FBNL) |
| Ethernet Standard | 10/100 Base-T |
| Integrated Magnetics | Yes |
| Status LEDs | Yes (Link/Activity indicators) |
| Shielding | Yes (EMI protection) |
| Breakout Pins | P1–P6, Y+, Y-, G+, G-, GND, Shield |
| Compatibility | Microcontrollers, Sensors, IoT Devices |
| Supported Protocols | TCP/IP, UDP, HTTP |
