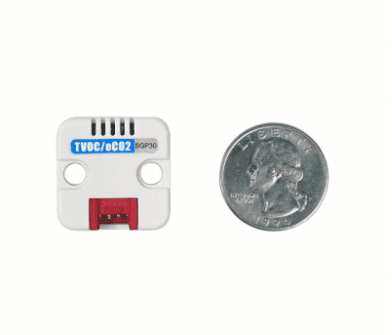

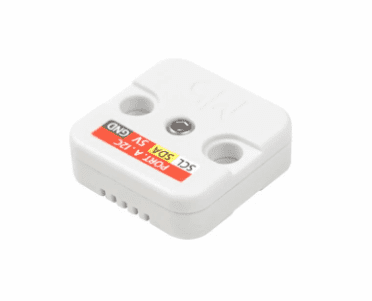

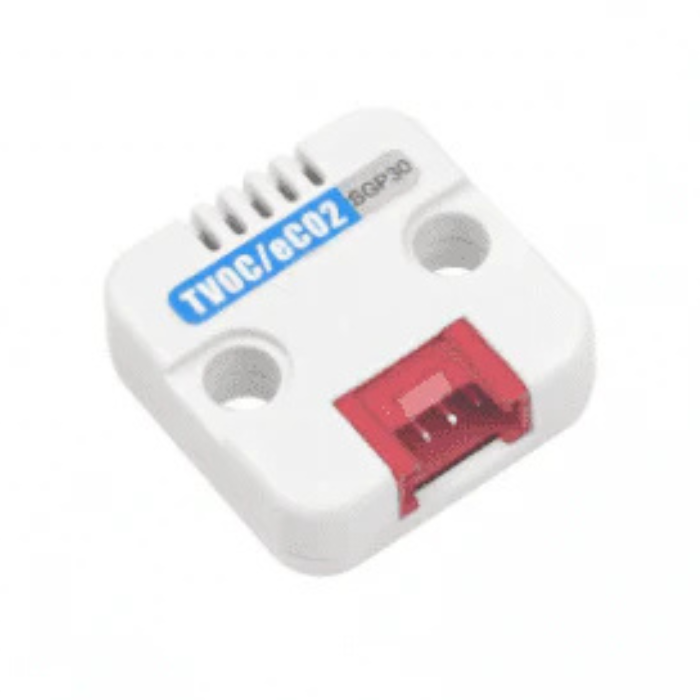

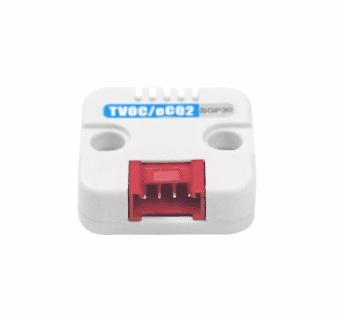

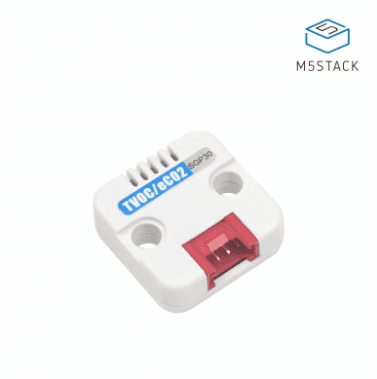

M5Stack TVOC/eCO2 Gas Unit (SGP30)
M5Stack TVOC/eCO2 Gas Unit (SGP30)
M5Stack TVOC/eCO2 Gas Unit (SGP30)
M5Stack TVOC/eCO2 Gas Unit (SGP30)
M5Stack TVOC/eCO2 Gas Unit (SGP30)
M5Stack TVOC/eCO2 Gas Unit (SGP30)
M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)
  • Load image into Gallery viewer, M5Stack TVOC/eCO2 Gas Unit (SGP30)

M5Stack TVOC/eCO2 Gas Unit (SGP30)

Regular price
Rs. 1,210
Sale price
Rs. 1,210
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • TVOC/eCO2 concentration detection
  • I2C communication(0x58)
  • Outstanding long-term stability
  • Humidity Compensation
  • 2x LEGO™ Hole

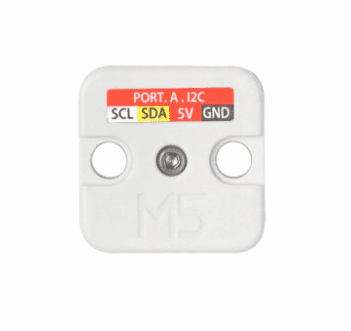

  • HY2.0 4P interface
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection

M5Stack TVOC/eCO2 Gas Unit (SGP30)

M5Stack TVOC/eCO2 mini Unit is a digital multi-pixel gas sensor unit with integrated SGP30.

It mainly measures various VOC (volatile organic compounds) and H2 in the air. It can be programmed to detect TVOC (total volatile organic compounds) and eCO2 (equivalent carbon dioxide reading)Concentration measurement.

Typical measurement accuracy is 15% within the measurement range, the SGP30 reading is internally calibrated and output, which can maintain long-term stability. SGP30 uses I2C protocol communication with an on-chip humidity compensation function, which can be turned on through an external humidity sensor.

If you need to obtain accurate results, you need to calibrate according to a known measurement source. SGP30 has a built-in calibration function. In addition, eCO2 is calculated based on the concentration of H2 and cannot completely replace "true" CO2 sensors for laboratory use.

Applications:

  • Air quality monitoring
  • eCO2 concentration

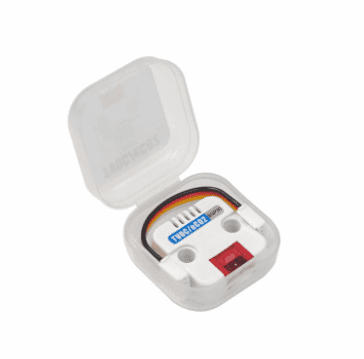

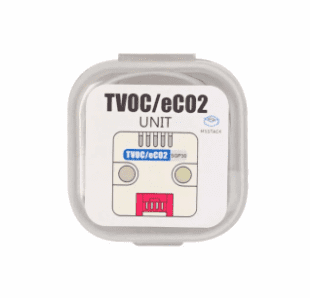

Package Includes:

1x TVOC/eCO2 Mini-Unit
1x HY2.0 Cable(5CM)

Specifications:

Measurement range Ethanol:0-1000ppm,H2:0-1000ppm,TVOC:0-60000 ppb,eCO2:400-60000 ppm
TVOC/eCO2 Sampling rate 1Hz
TVOC/eCO2 Resolution TVOC:1/6/32bbp,eCO2:1/3/9/31ppm
Communication protocol I2C:0x58
Dimensions
24 x 24 x 13mm
Weight 8gm
