M5Stack Cardputer Kit with M5StampS3
M5Stack Cardputer Kit with M5StampS3
Out of stock
Couldn't load pickup availability
Contact form
- The M5StampS3 Microcontroller
- 56-Key Keyboard
- 1.14 Inch TFT Screen
- Immersive Audio with Cavity Speaker and SPM1423 Digital MEMS Microphone
- Infrared Control Interaction
- Expandability with HY2.0-4P Port and Micro SD Card Slot
- Long Battery Life
- Versatile Mounting Options

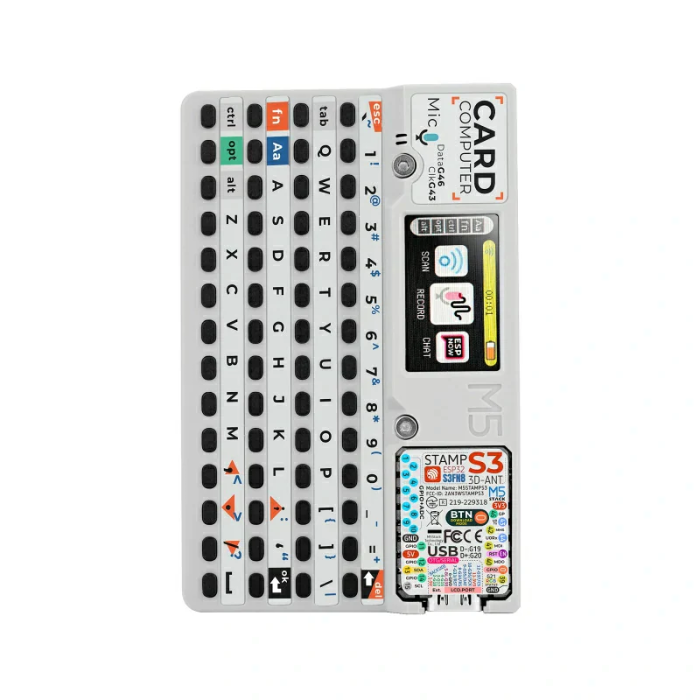

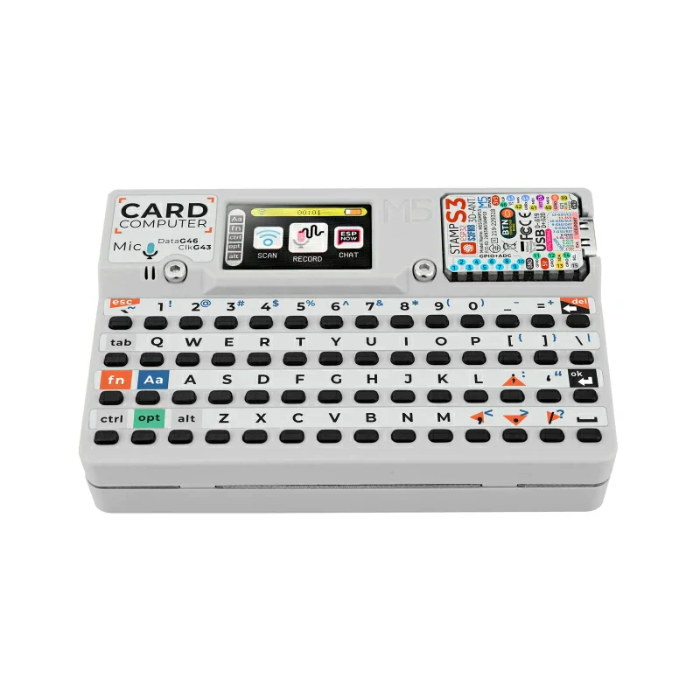

M5Stack Cardputer Kit with M5StampS3
M5Stack Cardputer Kit with M5StampS3 is your key to countless opportunities and success in the world of electronics and coding. It has an M5StampS3 Microcontroller packed with power and performance using the ESP32-S3 chip, this microcontroller is your go-to hub for all your projects, offering smooth connectivity and control. With a 56-key keyboard, you can easily input commands and messages, this will simplify your interaction with your projects.
The 1.14-inch TFT Screen provides you with a clear and detailed view from basic data to immersive user interfaces. This tiny board boasts a strong dual-core processor, Wi-Fi support, and multiple sensors, perfect for quick testing, industrial control, and home automation. The SPM1423 digital MEMS microphone enables voice interaction and sound detection.
Another standout feature of this board is infrared control interaction which lets you operate things remotely and automate tasks easily. It's not finished here, It includes a HY2.0-4P port and Micro SD card slot, so you can add more sensors and storage space as per your requirement. With this board, you will get built-in 120mAh and 1400mAh lithium batteries in the base.
Don't miss out on the chance to be a part of endless creativity and innovation. Click "Buy Now" and buy the M5Stack Cardputer Kit with M5StampS3. Start on your journey today!
Applications:
- Automation and Controlling machines in industries
- Quick prototyping and functional verification
- Automating home systems
- Learning and developing embedded systems
- Sensor monitoring and data collection
- Making wireless communication and Internet of Things (IoT) projects

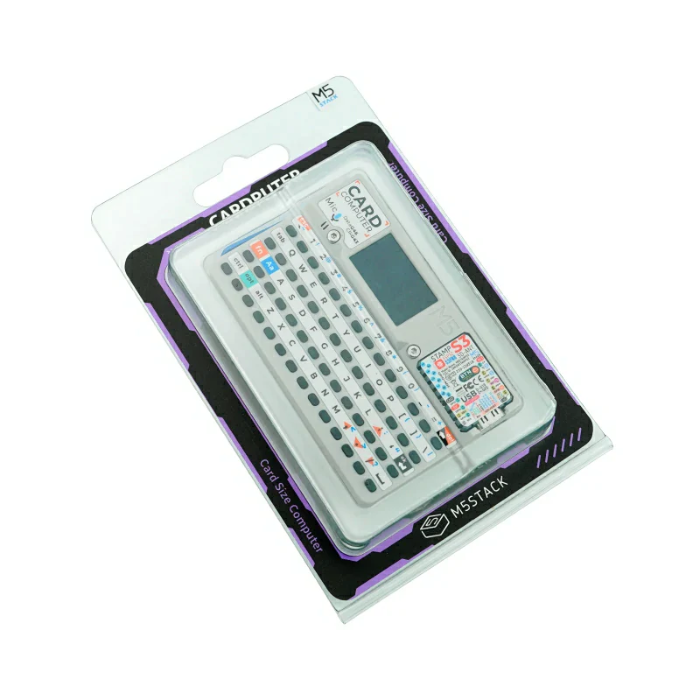

Package Includes:
- 1x M5Stack Cardputer Kit with M5StampS3
- 1x Hex Key
Specification:
| StampS3 | ESP32-S3@Xtensa LX7 ,8M-FLASHWIFI,OTG\CDC Function |
| Battery Capacity | 120mAh+1400mAh |
| Screen | ST7789V2@1.14 Inch、240*135px |
| Standby current | DC4.2V/0.26uA |
| Operating current | IR emission mode: DC4.2V/ 255.6mA Key mode: DC4.2V/165.7mA |
| Speaker | 8Ω@1W |
| Infrared emission distance | Infrared emission distance (linear distance) of ∠180°: 410cm Infrared emission distance of < 90° : 66cm Infrared emission distance of < 45° : 170cm |
| Product Size | 84*54*17mm |
| Product Weight | 92.8g |
