LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module Support 8 Channels With Pi Net & Antenna Kit

LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module Support 8 Channels With Pi Net & Antenna Kit

Low stock: 1 left

Regular price Rs. 8,455
Regular price Rs. 10,499 Sale price Rs. 8,455
Sale Sold out 19% off Best Price Guaranteed
You save Rs. 2,044 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 35 minutes.

BEST COUPON FOR YOU

FLAT ₹ 400/- OFF RC400

When you shop for ₹ 10000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Long-range, low-power IoT communication.
  • EU868 frequency for reliable transmission.
  • High performance with low power use.
  • 8-channel data transfer for efficiency.
  • Compact Mini PCIe design.
  • Low power consumption.
  • U.FL antenna connector.
  • Operates from -40°C to 85°C.
  • CE certified.
Trust Badge 1 Trust Badge 2 Trust Badge 3

LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module Support 8 Channels With Pi Net & Antenna Kit

The LR1302 LoRaWAN Gateway Module is a powerful tool for connecting IoT devices with low energy use over long distances. It’s built with the SX1302 chip, which improves performance, uses less power, and is more sensitive than older chips like the SX1301.

This module can send and receive data on 8 channels at once, making it faster and capable of connecting more devices. It has two antenna ports—one for regular LoRa signals and another for special transmission needs. Available in SPI and USB options and designed for the EU868 frequency band, the LR1302 module works well in many IoT areas like smart cities, farming, and industrial use.

LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 8 Signal channels

Key Features:

  • Easy Setup: Quickly create your own LoRaWAN gateway and connect it to the cloud.
  • Frequency Support: Works with both EU868 and US915 frequency bands.
  • SPI Interface: Provides stable communication with compatible devices.
  • Efficient Performance: Built with the Semtech® SX1302 chip for low energy use and strong performance.
  • 8-Channel Transmission: Handles 8 data channels at once for faster, more efficient communication.
  • CE Certified: Approved for safety and environmental standards in Europe.

Pinout Details:

LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Pin Diagram

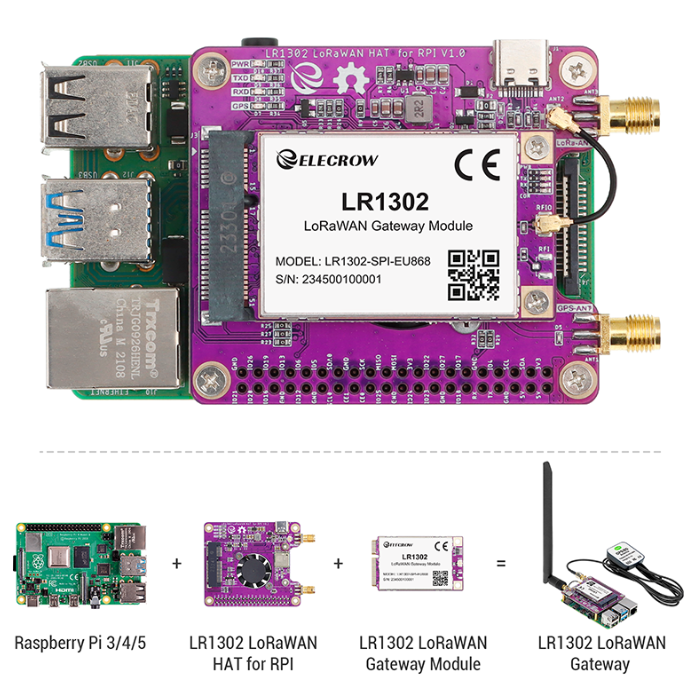

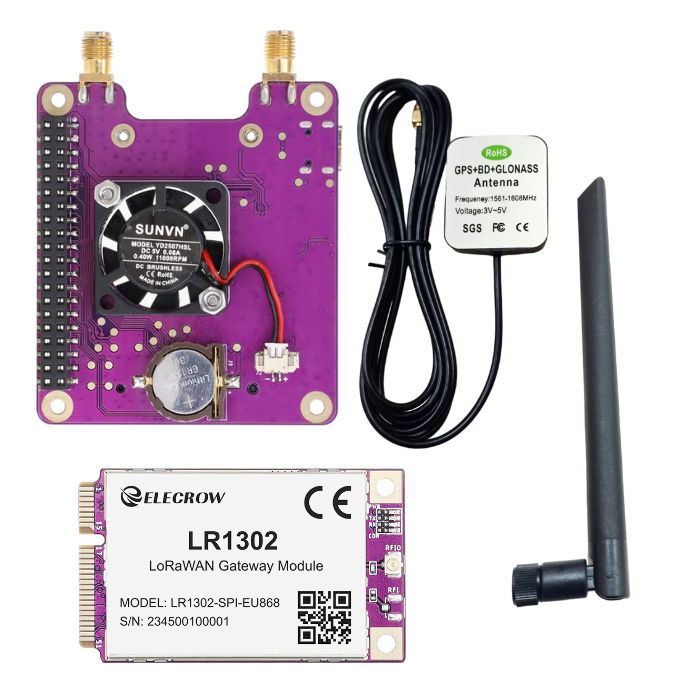

Package Includes

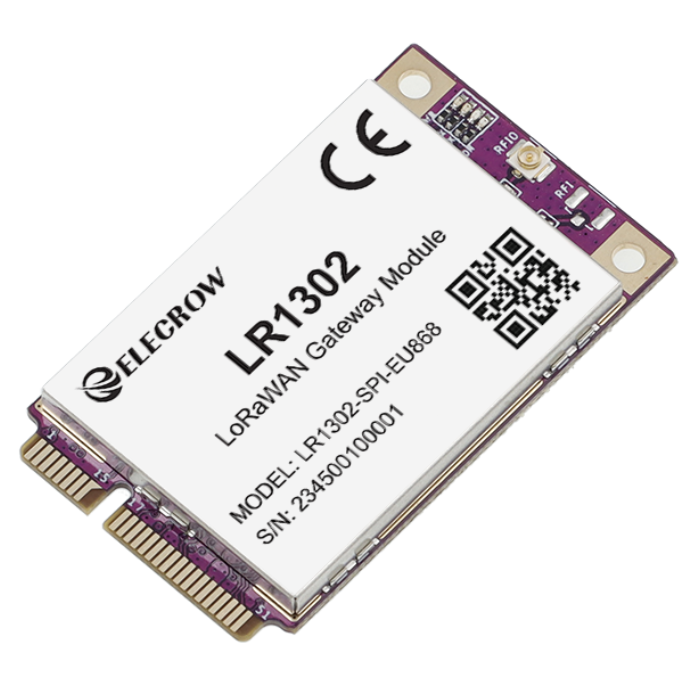

  • 1 x LR1302 LoRaWan Gateway-EU868

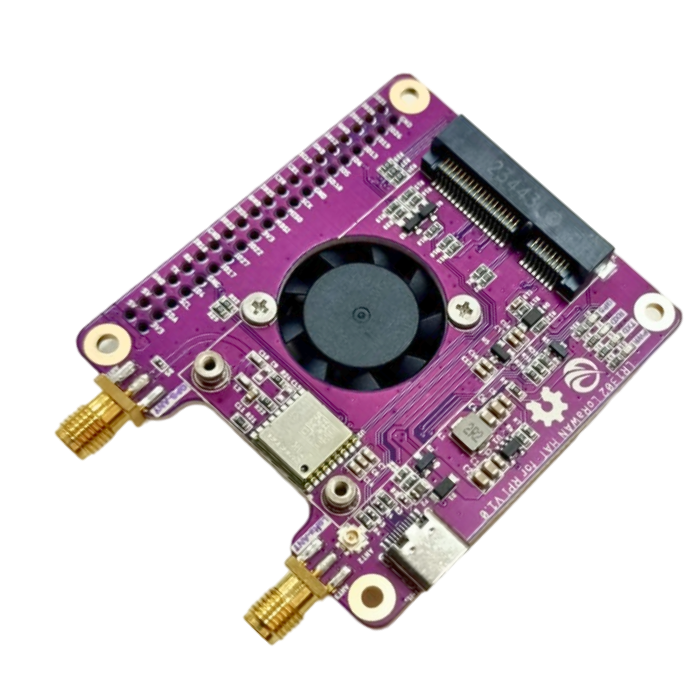

  • 1 x LR1302 LoRaWAN Hat for RPI

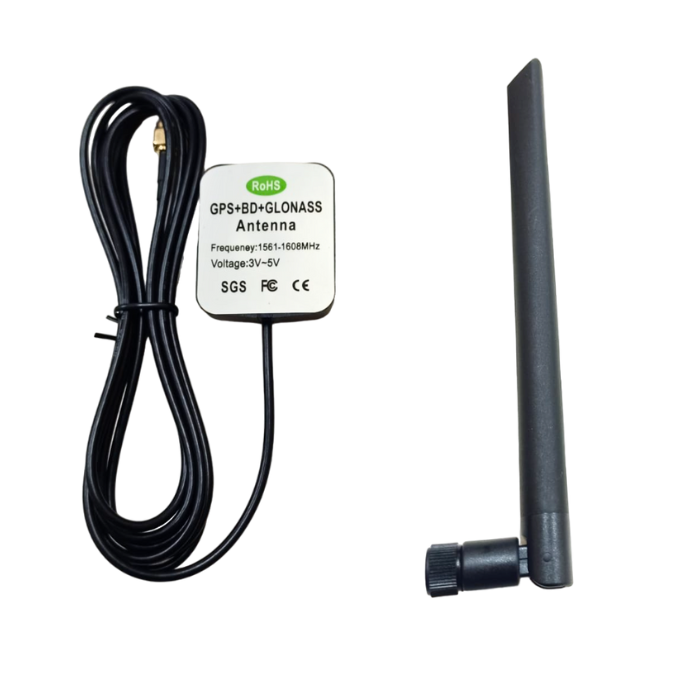

  • 1 x IPEX and Antenna

Specifications

Specification Details
Model EU868
Frequency 863-870 MHz
Chip Set Semtech SX1302
Sensitivity -125 dBm @125K/SF7, -139 dBm @125K/SF12
TX Power 26 dBm (with 3.3V power supply)
Bandwidth 125/250/500 kHz
Channel 8 channels
LED Indicators Power: Green, Config: Red, TX: Green, RX: Blue
Form Factor Mini PCIe, 52-pin Golden Finger
Power Consumption (SPI version) Standby: 7.5 mA, TX Max Power: 415 mA, RX: 40 mA
Power Consumption (USB version) Standby: 20 mA, TX Max Power: 425 mA, RX: 53 mA
LBT (Listen Before Talk) Supported
Antenna Connector U.FL
Operating Temperature -40°C to 85°C
Dimensions 30 mm x 50.95 mm
