LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module 8 Channels Support Without Pi Hat & Antenna Kit

LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module 8 Channels Support Without Pi Hat & Antenna Kit

Low stock: 2 left

Regular price Rs. 4,559
Regular price Rs. 5,999 Sale price Rs. 4,559
Sale Sold out 24% off Best Price Guaranteed
You save Rs. 1,440 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 10 hours and 31 minutes.

BEST COUPON FOR YOU

FLAT ₹ 200/- OFF RC200

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Quick setup for LoRaWAN gateway with cloud support.
  • Compatible with EU868 and US915 bands.
  • Low power, high performance with SX1302 chip.
  • 8-channel transmission for efficient communication.
  • CE certified for quality and safety.
Trust Badge 1 Trust Badge 2 Trust Badge 3

LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module 8 Channels Support Without Pi Hat & Antenna Kit

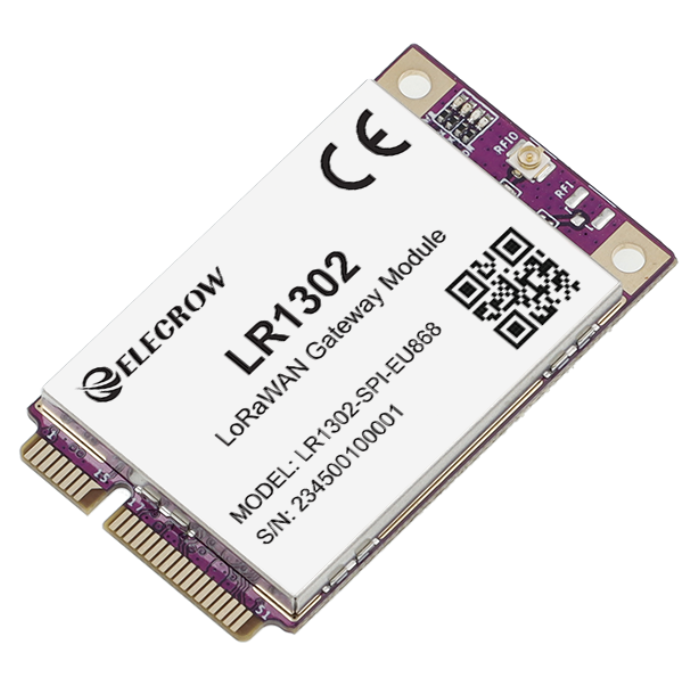

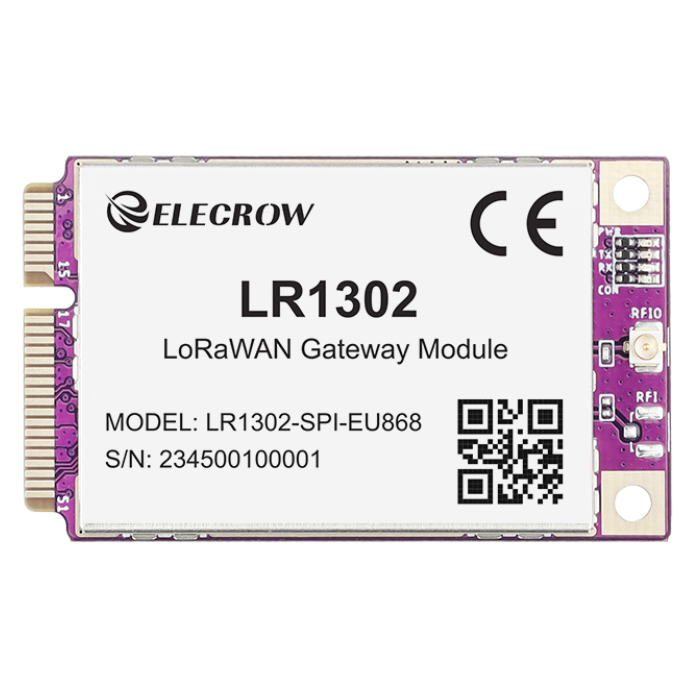

The LR1302 LoRaWAN Gateway Module is a high-performance module designed for long-range wireless communication in IoT applications. It uses the powerful SX1302 chip, which improves on earlier versions by offering better sensitivity, lower power use, and cooler operation. This module supports 8 communication channels, allowing more devices to connect and share data efficiently. Built-in a mini-PCIe format, it has two antenna ports: one for general LoRa signals and one for specific transmissions. A metal shield protects it from outside interference, ensuring a stable connection. Compatible with the EU868 frequency, the LR1302 module is ideal for projects in smart cities, farming, and industrial settings, delivering reliable data connections without the need for additional parts like a Pi Hat or antenna kit.

8 Channeles of LR1302 LoRaWAN Gateway Module SPI EU868 SX1302

Package Includes

1 x LR1302 LoRaWAN Gateway Module SPI EU868 SX1302

Specifications

Specification Features
Model EU868
Frequency 863-870 MHz
Chipset Semtech SX1302
Sensitivity -125 dBm @125K/SF7, -139 dBm @125K/SF12
TX Power 26 dBm (with 3.3V power supply)
Bandwidth 125 / 250 / 500 kHz
Channels 8 channels
LED Indicators Power: Green, Config: Red, TX: Green, RX: Blue
Form Factor Mini PCIe, 52-pin Golden Finger
Power Consumption (SPI) Standby: 7.5 mA, TX max: 415 mA, RX: 40 mA
Power Consumption (USB) Standby: 20 mA, TX max: 425 mA, RX: 53 mA
LBT (Listen Before Talk) Supported
Antenna Connector U.FL
Operating Temperature -40°C to 85°C

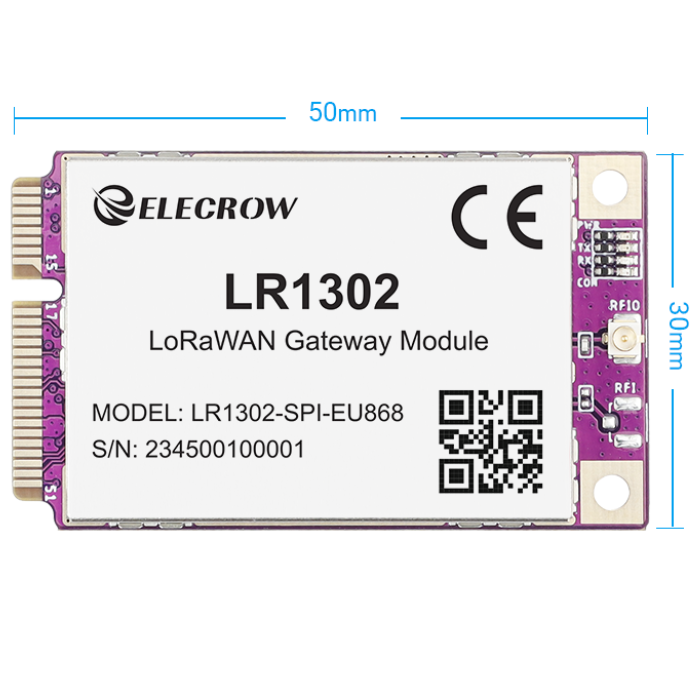

Dimensions 30 mm (W) × 50.95 mm (L)
