LM2577 3A Adjustable DC-DC Step-Up Boost Converter

LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V

Rs 399/-
- 39%
Rs 399/-
Rs 649/-
Save Rs 250/-
🪙
RC REWARDS Earn 3 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFDC0123
  • Adjustable input range: 3V–34V
  • Adjustable output range: 4V–35V
  • Supports up to 3A output current
  • Built-in LED voltmeter for convenient voltage monitoring
  • Uses 150 kHz PWM switching for efficient voltage boosting
  • Compact and economical solution for electronics and DIY projects

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V -Batteries & Power Supply -Buck/Boost -Robocraze
LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V
Rs 649/- Rs 399/-
LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V -Batteries & Power Supply -Buck/Boost -Robocraze
LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V -Batteries & Power Supply -Buck/Boost -Robocraze
LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V -Batteries & Power Supply -Buck/Boost -Robocraze
LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V -Batteries & Power Supply -Buck/Boost -Robocraze

LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V

Rs 649/- Rs 399/-
Description

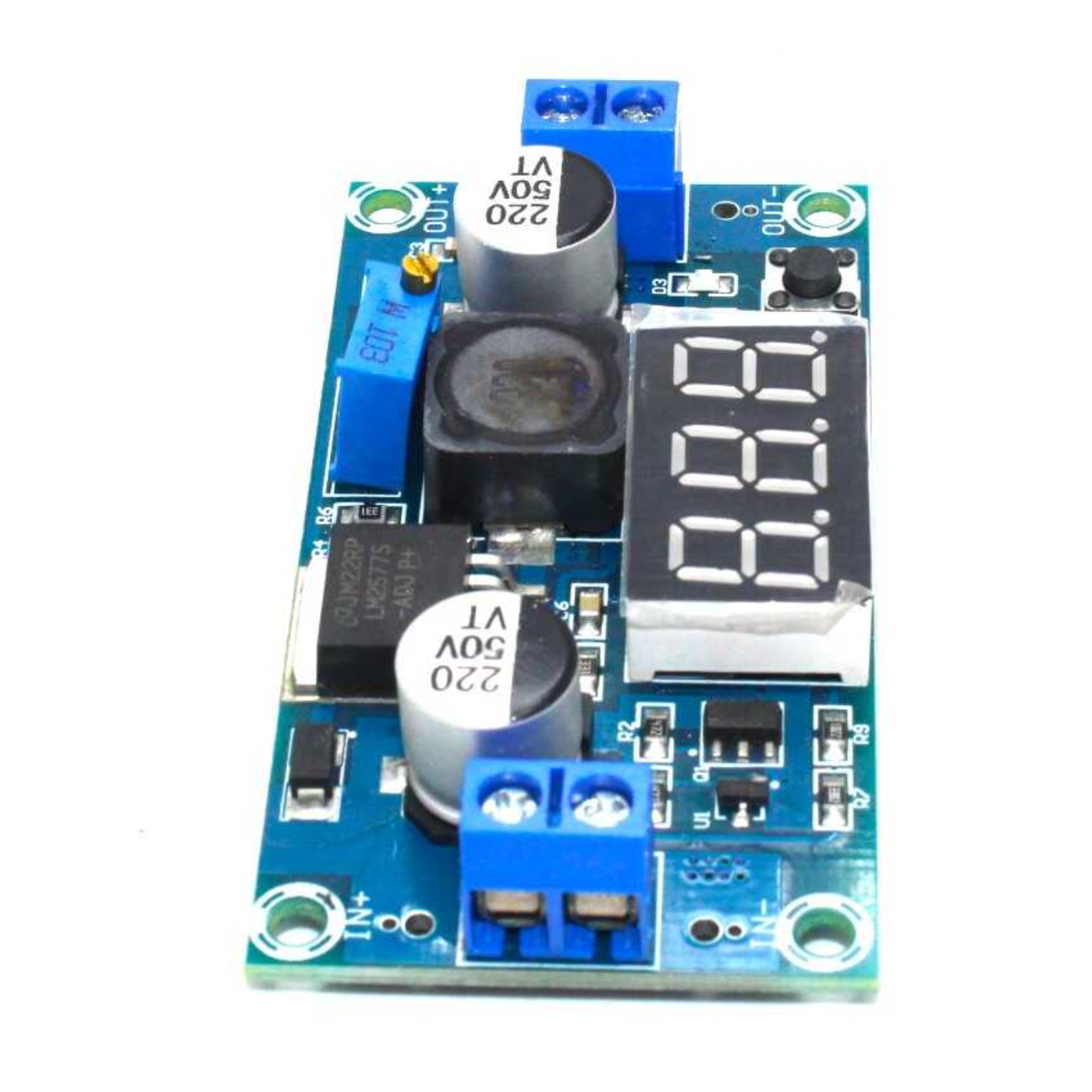

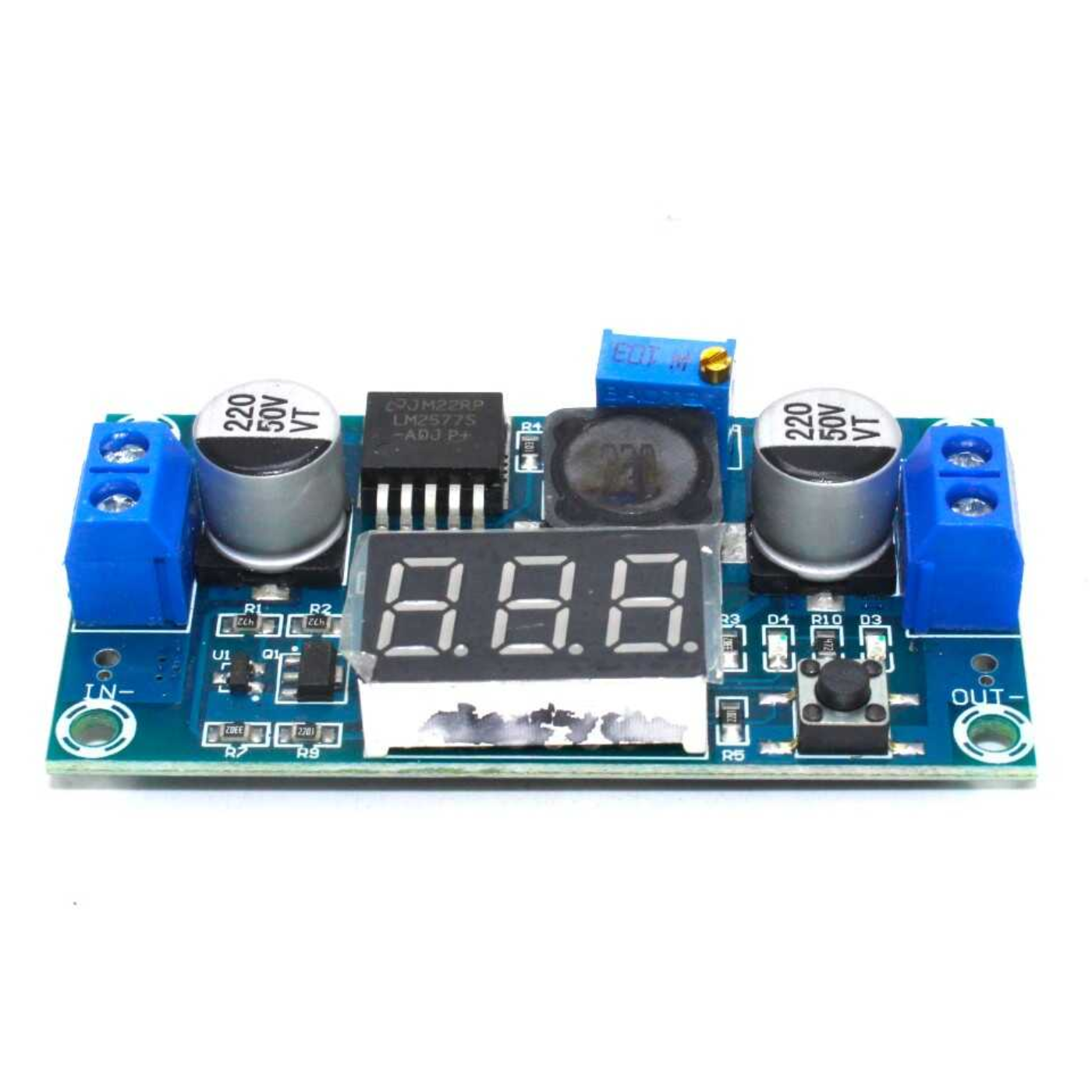

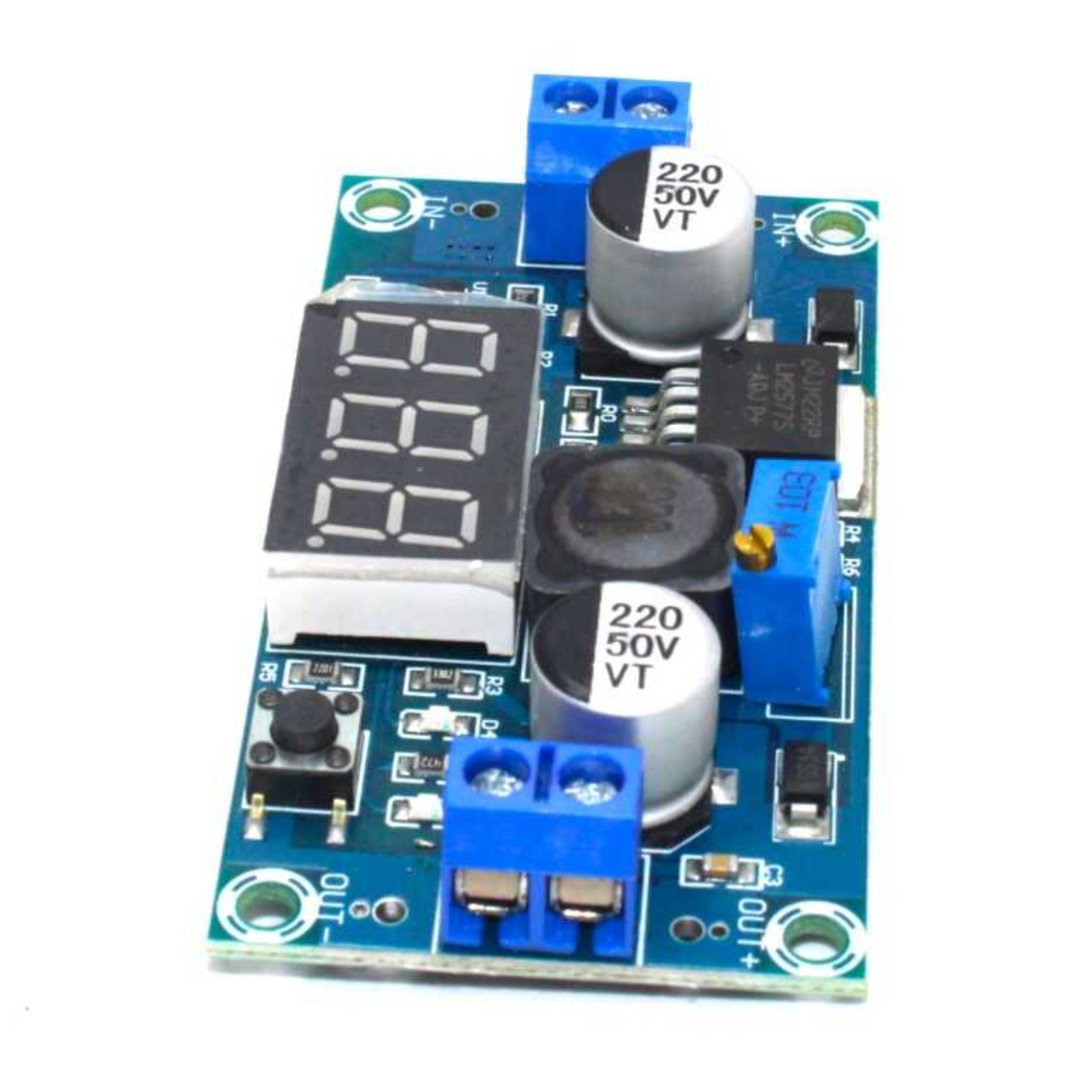

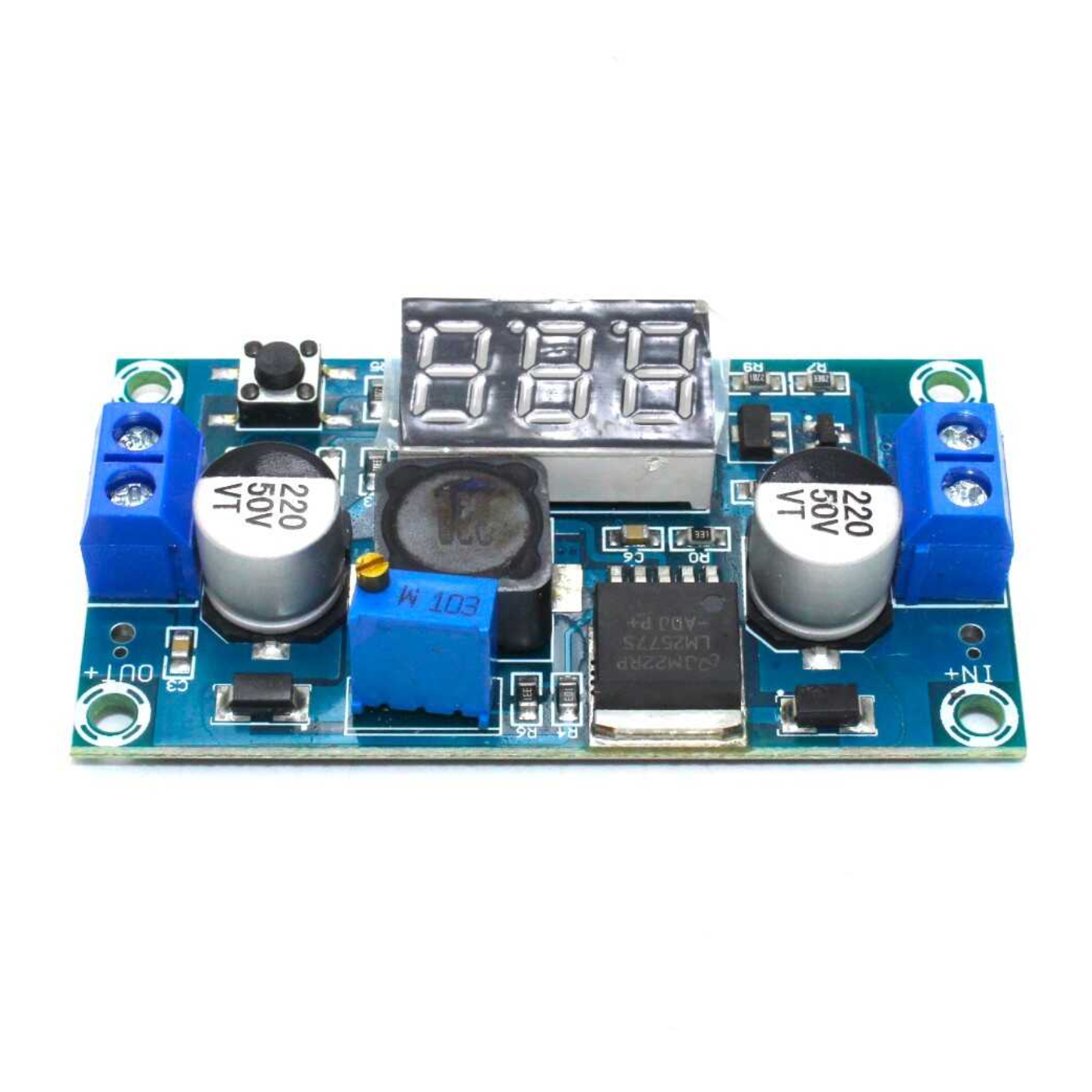

LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V

The LM2577 3A DC-DC Step-Up Boost Converter Module is an adjustable boost converter designed to increase a lower DC input voltage to a higher output voltage. It supports an input range of 3V to 34V and provides an adjustable output from 4V to 35V, making it suitable for a variety of electronics, DIY, and power supply projects.

The built-in LED voltmeter allows you to monitor the output voltage easily, while its 150 kHz PWM switching operation helps provide stable and efficient voltage conversion. With minimal external components required, this LM2577 module offers a practical and economical solution for applications that need adjustable DC voltage boosting.

Features:

  • Multiple output regulators.
  • One button switches between input and output voltage displays.
  • Power-down memory function.
  • To turn off/on the LED display, press the button for 3 seconds.
  • With a wire termination.
  • When you adjust the blue potentiometer, please use a multimeter to monitor the voltage.
  • Rotating clockwise can enhance the voltage, but rotating counterclockwise can lower it.
  • When the module's output voltage cannot be changed (the output voltage is always equal to the input voltage) Please adjust the potentiometer counter clockwise for 20 laps (20 turns) or more until it works.
Specifications

Package Includes:

  • 1 x LM2577 3A Adjustable DC-DC Step-Up Boost Converter with LED Voltmeter, 3-34V to 4-35V

Specifications:

Specification Details
Input Voltage 3 to 34V
Output Voltage 4 to 35V
Maximum Output Current 3A
Voltmeter Range 0 to 40V
Switching Frequency 52 kHz
Operating Temperature -40°C to 90°C
Length 60 mm
Width 35 mm
Height 13.5 mm
Weight 24 g
