- Model: LJ12A3-4-Z/BY PNP DC 6-36V inductive proximity sensor
- Detection distance: 4mm sensing range for metallic objects
- Non-contact detection ensures long service life and reliability
- Compact tube-type design for easy installation in tight spaces
- High positioning accuracy with fast response frequency
- Durable, anti-interference, and suitable for harsh environments
- Ideal for molds, precision machine tools, and robotic applications

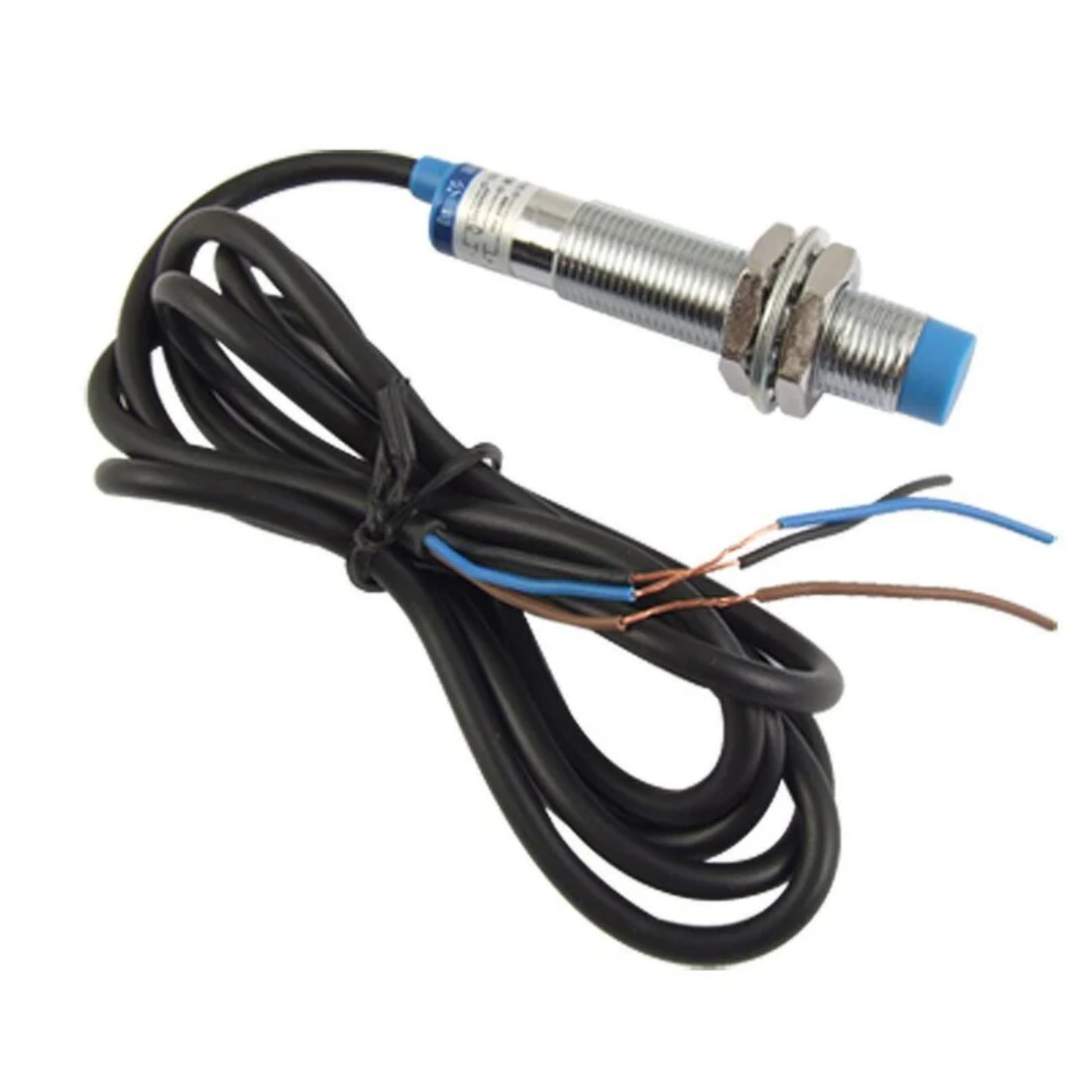

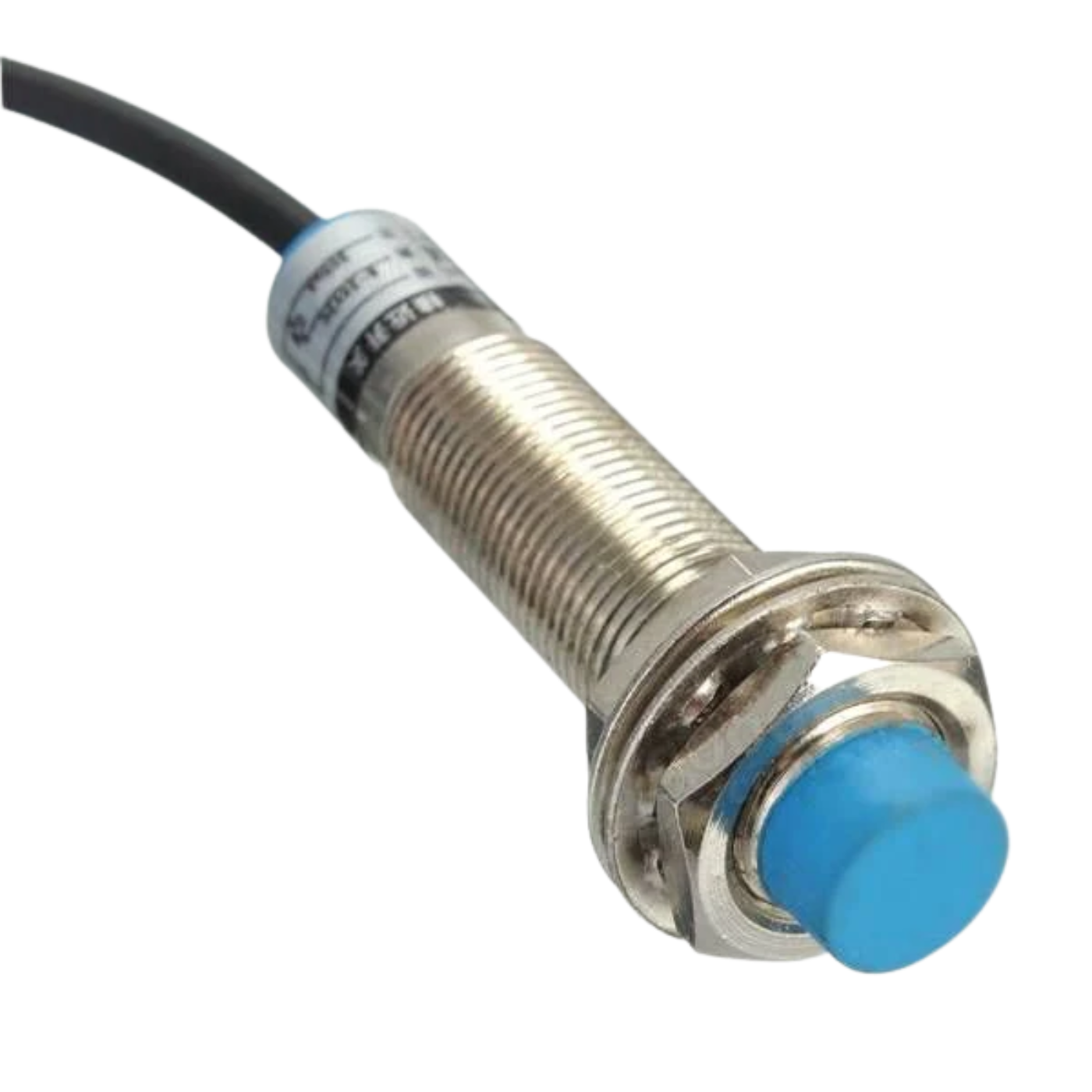

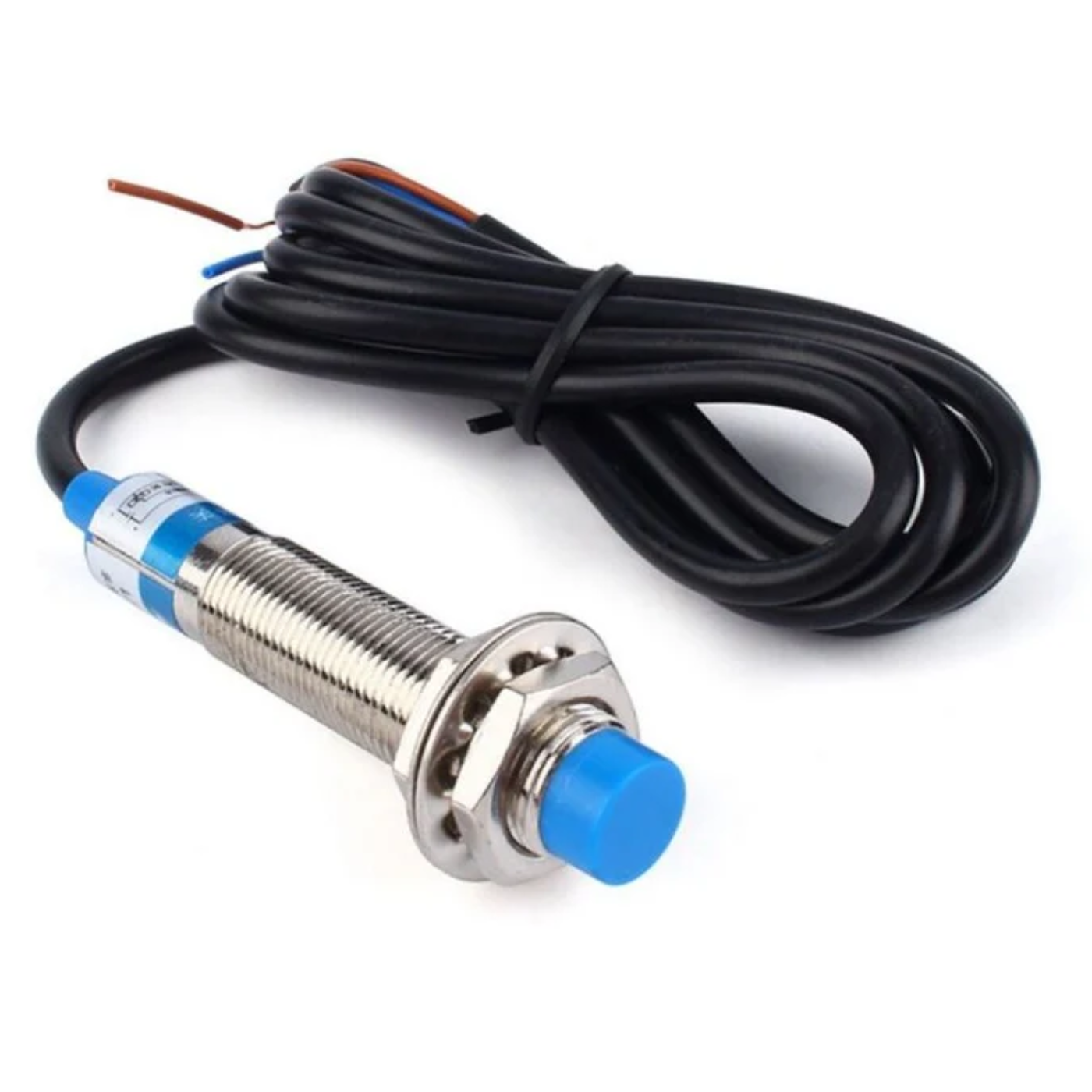

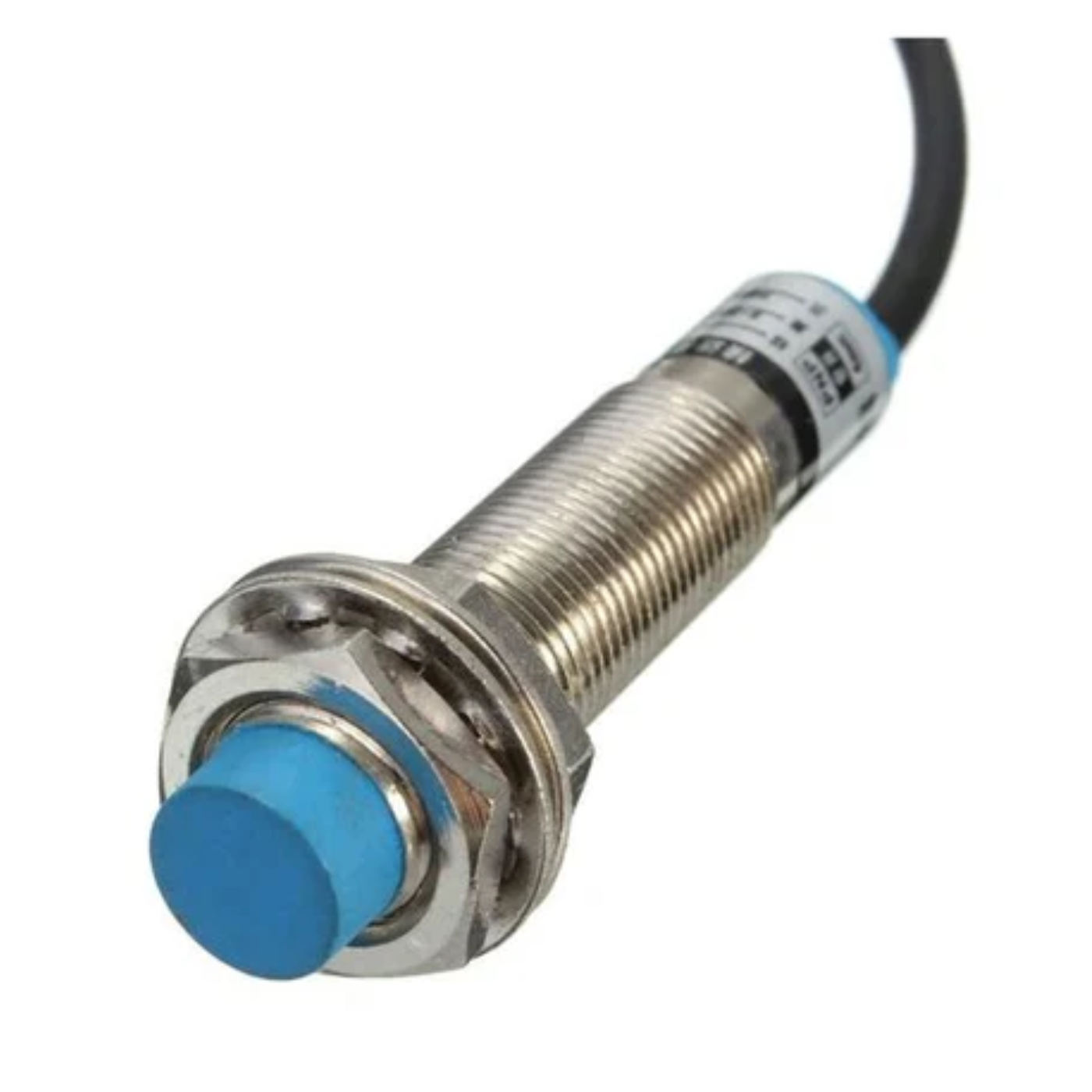

LJ12A3-4-Z/BY PNP DC 6-36V 4mm Tube Type Inductive Proximity Sensor Switch
The LJ12A3-4-Z/BY inductive proximity sensor is a reliable and compact component designed for precise non-contact detection of metallic objects.
Operating on a DC 6-36V PNP configuration, this 4mm tube-type sensor provides accurate positioning and fast response, making it ideal for industrial automation applications.
When a metal object enters the sensing area, the inductive proximity sensor generates an Eddy Current that alters its magnetic field, allowing it to issue a quick electrical command without physical contact.
With features such as long service life, excellent anti-interference capability, and easy installation, the LJ12A3-4-Z/BY is well-suited for use in molds, precision machine tools, robotics, and other demanding environments where reliability and durability are crucial.
Features:
- A red LED indicates the proximity sensor's status.
- High repeatable positioning precision.
- High switching frequency.
- Wide voltage range.
- The whole length of the cylinder is 62mm.
- Thread length: 40mm.
- Outer (thread) diameter: M12.
- Antivibration, dust, water, and oil protection
- Reverse power protection, short circuit protection, and direct connection with PLC.
- Can replace tiny and limit switches.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x LJ12A3-4-Z/BY PNP DC 6-36V 4mm Tube Type Inductive Proximity Sensor Switch
Specifications:
| Specification | Details |
|---|---|
| Model | LJ12A3-4-Z/BY PNP-NO Switch |
| Operating Voltage | 6 ~ 36 VDC |
| Output Type | NPN Normally Open (Three-wire) |
| Detection Object | Metal Objects |
| Detection Distance | 4 mm |
| Output Current | 300 mA |
| Working Temperature | -25°C ~ +70°C (±15%) |
| Cable Length | Approx. 1.1 m |
| Material | Metal and Plastic |
| Packaging Weight | 40 g |
| Packaging Dimensions (L x W x H) | 6 x 6 x 1 cm |
