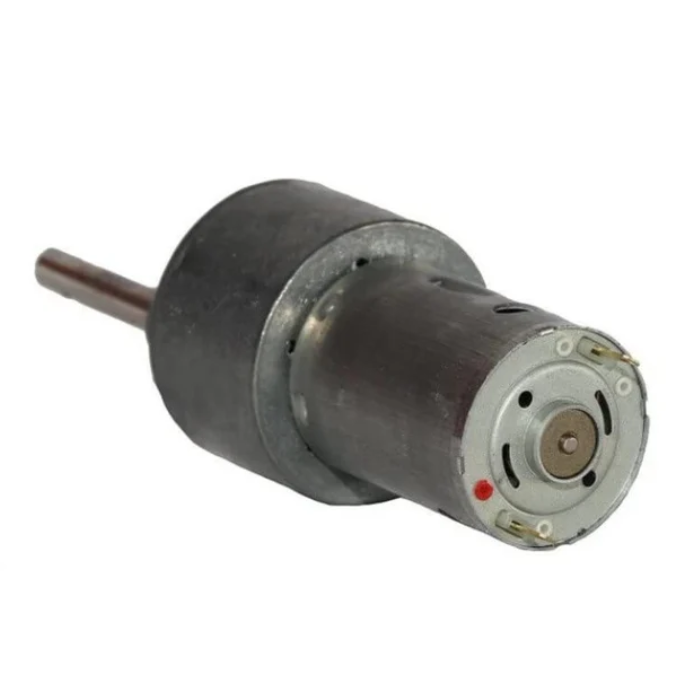

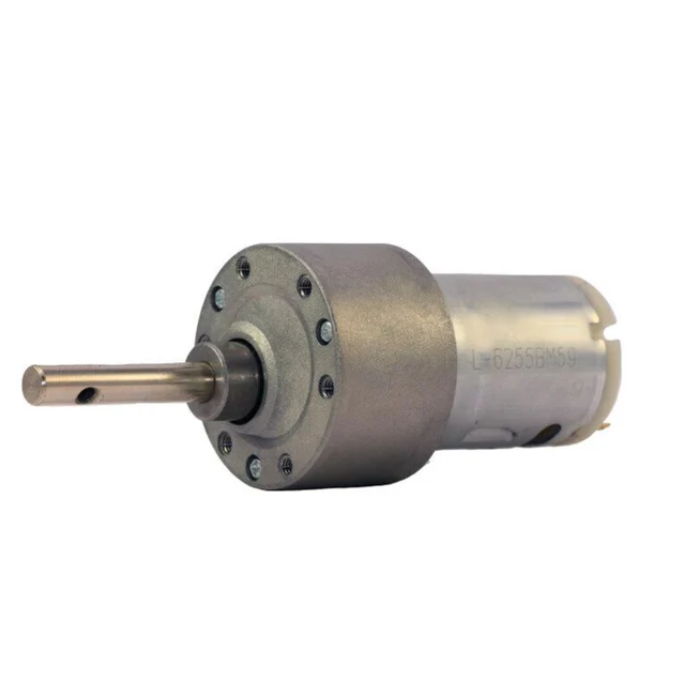

Johnson DC Geared Motor 12V 1000 RPM (Grade A)
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The Johnson DC Geared Motor 12V 1000 RPM (Grade A) is a high-performance DC gear motor designed for demanding automation and robotic applications.
Delivering 1000 RPM at 12V, this Johnson geared motor features a robust metal gearbox that ensures exceptional torque and durability.
Its 6mm off-centered shaft, reinforced with wear-resistant metal bushes, allows for smooth and stable operation even under heavy loads. Designed with six M3 mounting holes, it offers easy integration into your mechanical setup.
Operating efficiently across a voltage range of 6V to 18V, this 1000 rpm gear motor is an excellent choice for anyone building high-capability robotic platforms or automation systems requiring precision and reliability.
| Specification | Details |
|---|---|
| Operating Voltage (VDC) | 6 to 18 Volts |
| Nominal Voltage (V) | 12 |
| Rated Base Motor RPM | 18000 |
| Rated RPM | 1000 |
| Rated Torque (kg-cm) | 2 |
| Stall Torque (kg-cm) | 5 |
| No-Load Current | 200 mA |
| Load Current | 2 A |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 30 |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter (mm) | 27 |
| Motor Length (mm) | 66 |
| Weight (gm) | 170 |
