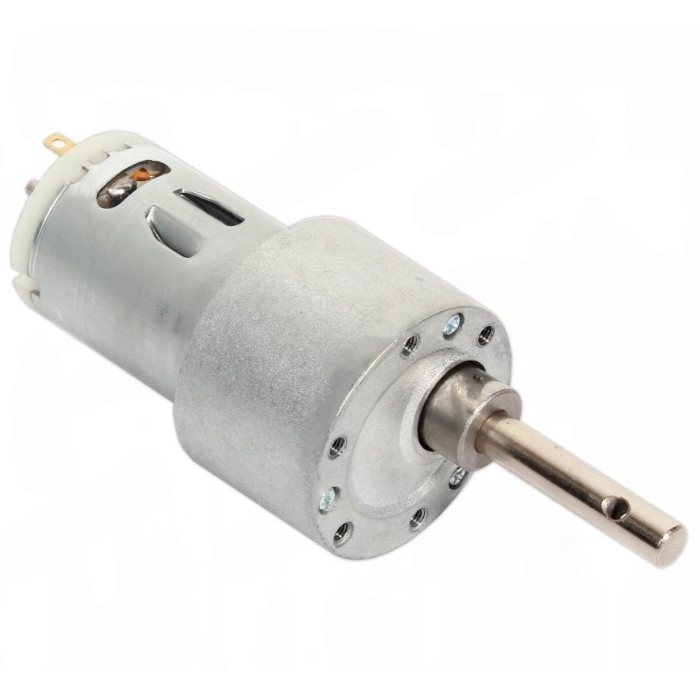

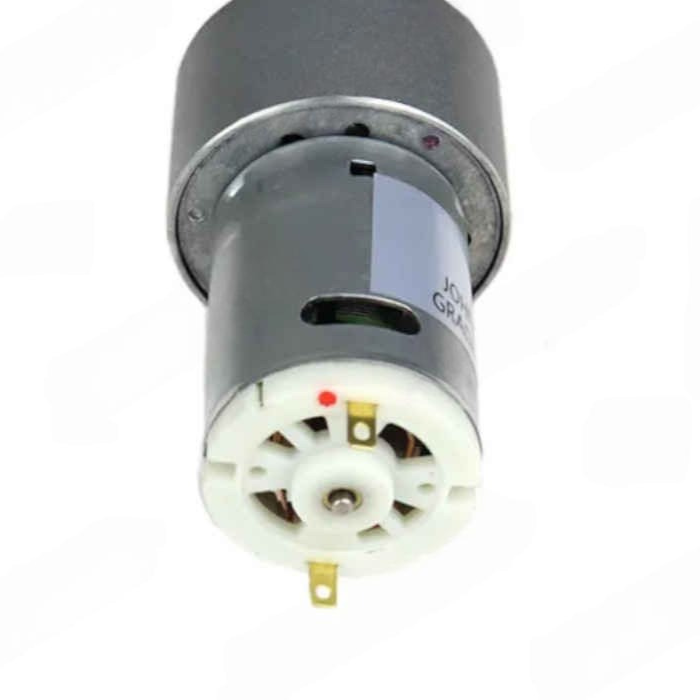

Johnson 600 RPM 12V DC Geared Motor (Grade A)
Couldn't load pickup availability
The Johnson 600 RPM 12V DC Geared Motor (Grade A) is a high-performance DC gear motor built for demanding robotics applications.
Known for its reliability and strength, this Johnson geared motor delivers an impressive torque of 4.5 kg · cm, making it suitable for tasks that require power and precision.
Operating at 600 RPM, the motor features a robust metal gearbox and an off-center shaft for better load distribution and efficiency.
Whether you're building a mobile robot or a mechanical project, this Johnson motor is engineered to offer optimal speed-torque balance under 12V DC power.
| Specification | Details |
|---|---|
| Motor Type | 12V DC Geared Motor |
| RPM | 600 RPM |
| Gearbox Type | Metal Gearbox with Metal Gears |
| Base Motor RPM | 18000 RPM |

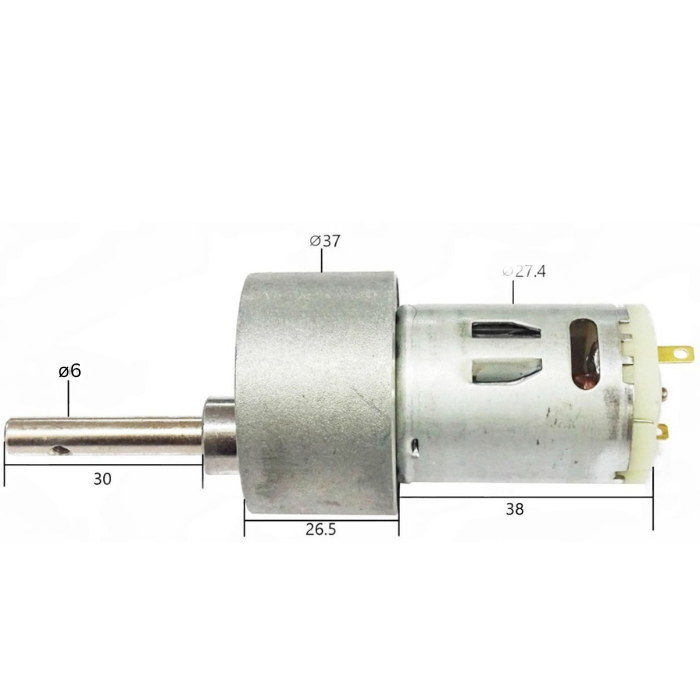

| Shaft Diameter | 6mm with M3 Thread Hole |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 28.5 mm |
| Motor Length (without shaft) | 63 mm |
| Shaft Length | 30 mm |
| Weight | 180 grams |
| Holding Torque | 4.5 Kgcm |
| No-load Current | 800 mA |
| Load Current | Up to 7.5 A (Max) |
| Recommended Motor Driver | Dual DC Motor Driver 20 |
