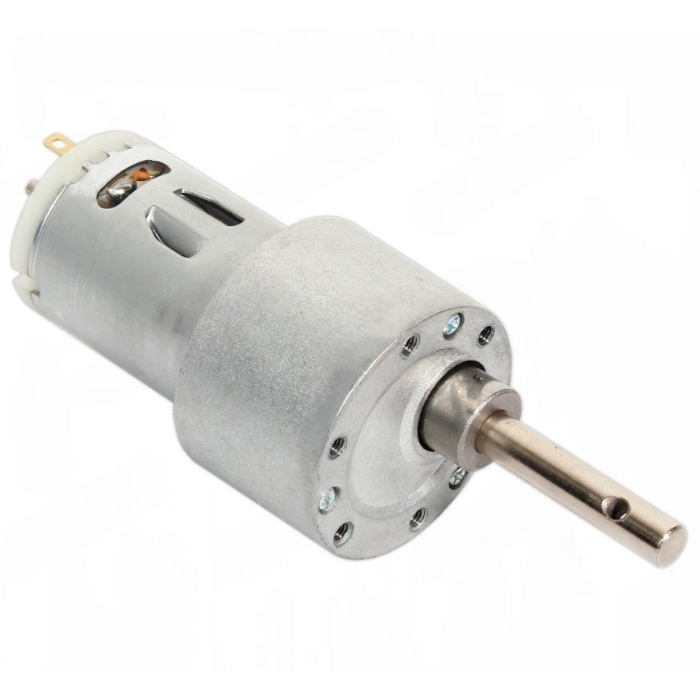

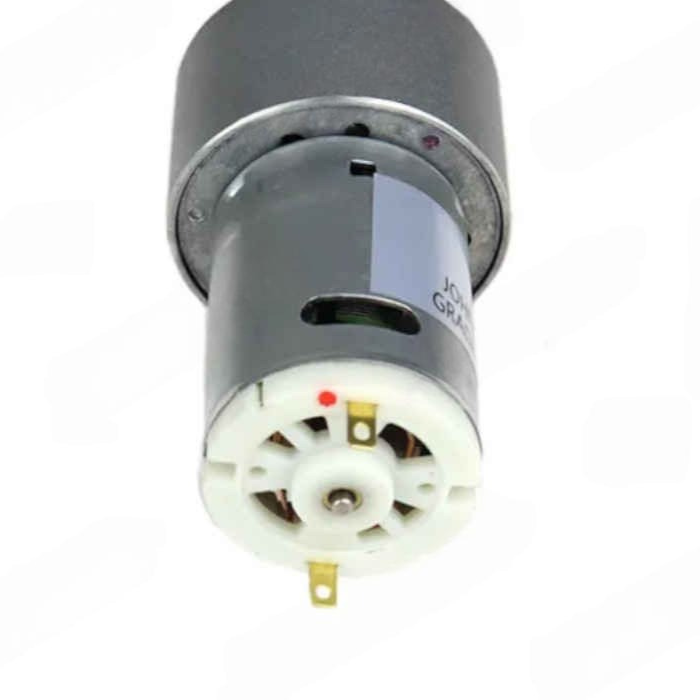

Johnson 12V 30 RPM DC Geared Motor (Grade A)
Couldn't load pickup availability
The Johnson 12V 30 RPM DC Geared Motor (Grade A) is a high-torque, heavy-duty solution designed for demanding robotics and automation projects.
As a top-tier Johnson geared motor, it delivers an impressive 32 kg · cm of torque, making it ideal for tasks requiring strength and precision.
Built with a robust metal gearbox and an off-center shaft, this 30 RPM gear motor ensures enhanced durability and reliable output.
Whether you're building a robot, DIY automation setup, or industrial model, this DC gear motor from the trusted Johnson Motors line offers dependable performance for all your high-load applications.
| Specification | Details |
|---|---|
| Base Motor RPM | 18000 RPM |

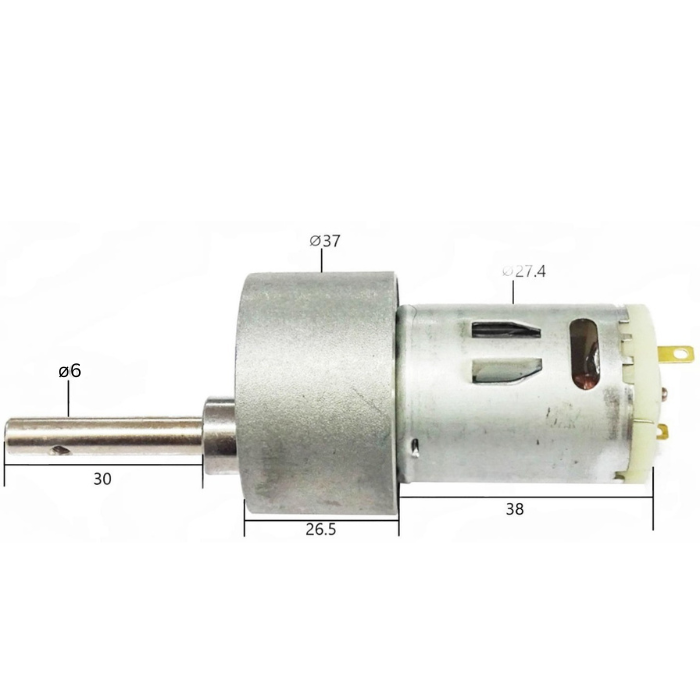

| Shaft Diameter | 6mm (with M3 thread hole) |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 28.5 mm |
| Motor Length (without shaft) | 63 mm |
| Shaft Length | 30 mm |
| Weight | 180 gm |
| Holding Torque | 38 Kg cm |
| No-Load Current | 800 mA |
| Load Current | Up to 7.5 A (Max) |
