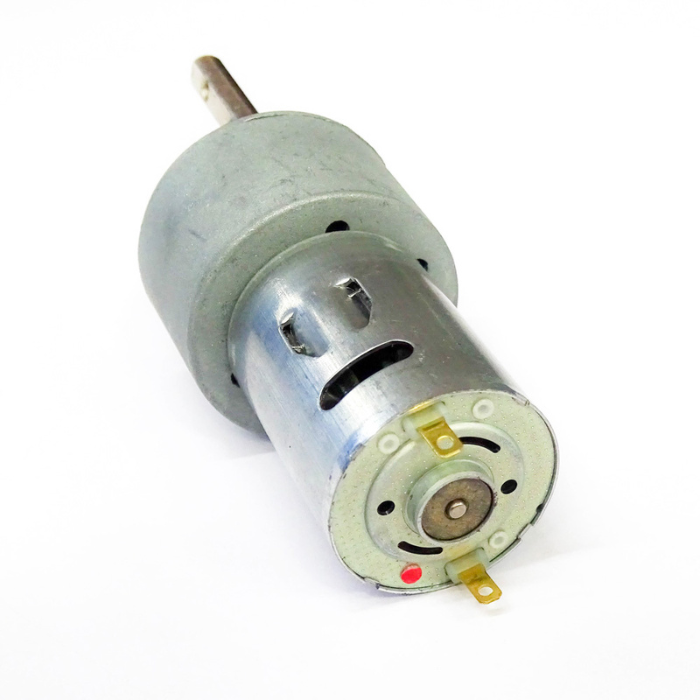

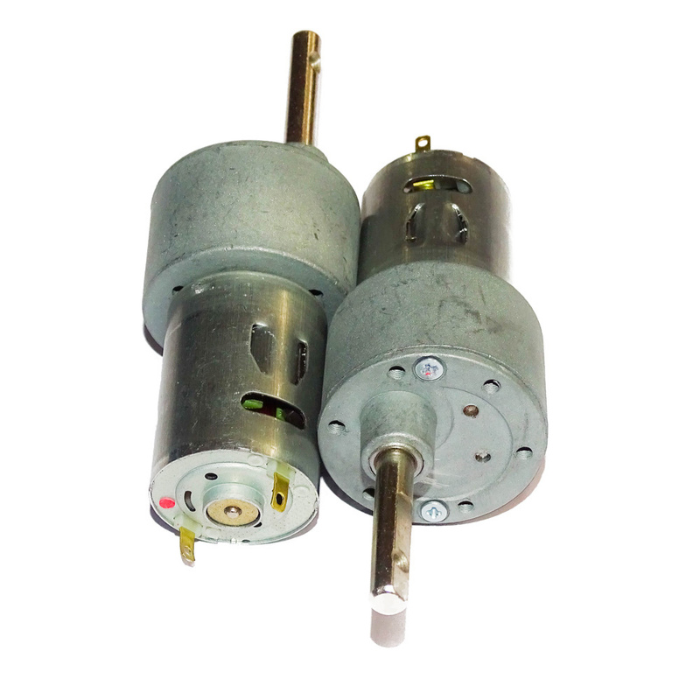

Johnson 100 RPM 12V DC Geared Motor (Grade B)
Couldn't load pickup availability
The 100 RPM 12V DC Johnson Geared Motor (Grade B) is a cost-effective solution for a wide range of robotics and automation applications.
This Johnson geared motor delivers a great balance of speed and torque, operating at 100 RPM when powered with 12V and offering a torque output of 5.7 kg-cm.

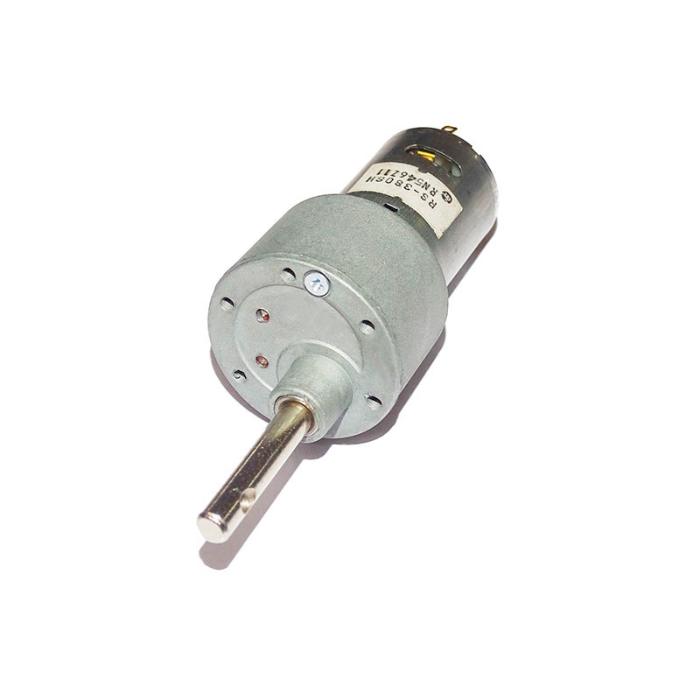

Known for its durability, the DC motor features a sturdy metal gearbox and a wear-resistant shaft with metal bushings. Its compact build, along with the side (off-centered) shaft and six M3 mounting holes, ensures easy integration into various mechanical setups.
As a Grade B Johnson motor, it maintains solid performance while remaining budget-friendly compared to its Grade A counterpart, making it an ideal choice for hobbyists and developers looking for dependable 100 rpm gear motor options.
| Specification | Details |
|---|---|
| Item Type | Johnson Geared Motor |
| Rated Torque (kg-cm) | 5.7 |
| Operating Voltage (VDC) | 6 ~ 18 |
| Rated Speed (RPM) | 100 |
| Material | Metal |
| Nominal Voltage (V) | 12 |
| Base Motor Rated RPM | 18000 |
| Stall Torque (kg-cm) | 22.8 |
| No-Load Current (mA) | 300 |
| Load Current Max (mA) | 900 |
| Shaft Diameter (mm) | 6 |
| Shaft Length (mm) | 30 |
| Gearbox Diameter (mm) | 37 |
| Motor Diameter (mm) | 27 |
| Motor Length (mm) | 62 |
| Weight (g) | 164 |
