IoT:Bit- Internet WIFI Extension Board for Micro:Bit by Elecfreaks

Regular price
Rs. 1,300
Sale price
Rs. 1,300
Regular price
Sold out
Unit price
per
Tax included. Shipping calculated at checkout.

  • Integrated ESP12F WiFi、RTC and passive buzzer module
  • Extended most IO ports by GVS
  • Silk-screen indication onboard main components
  • Separately lead IIC interface, directly plug in OLED, BME280 and IIC,etc
  • Integrated buzzer and earphone jack
  • Adaptive for LEGO (4 standard spacing Lego fixed holes)

IoT:Bit- Internet WIFI Extension Board for Micro:Bit

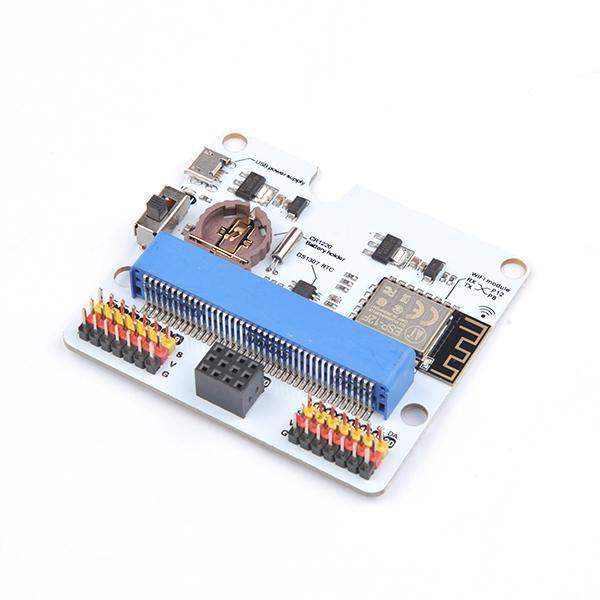

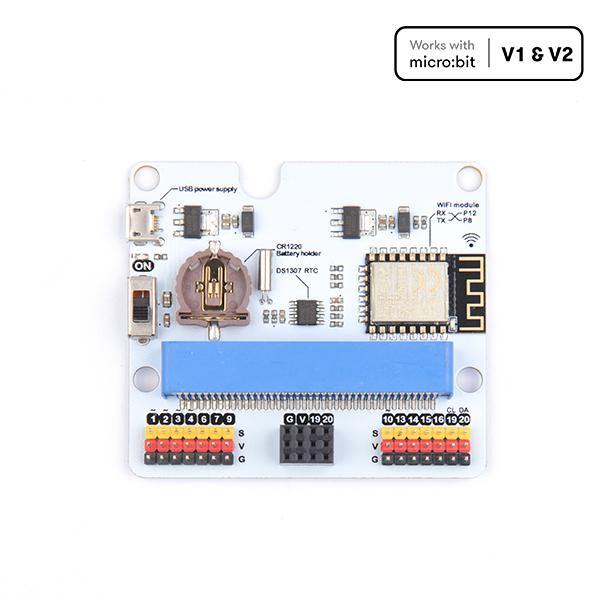

IOT:bit is an expansion board based on IoT for micro:bit. It uses ESP8266 as a WIFI expansion board and serial port to communicate with Micro:Bit. It also has extended all available IO ports of the micro:bit which is led by GVS and you can extent various 3V E-blocks as LED, photosensitive, and servo by using it. At the same time, the IoT:bit with an on-board buzzer for outside sound and an onboard RTC clock for timing without power supply. Let's create your own IoT by make code!

Package Includes:

  • 1 x IoT:Bit Expansion Board

Specifications:

DC supply USB-5V
Maximum power current 800mA
Operation temperature -25~80℃
Dimensions  71.00mm X 63.00mm
Weight  30.00g
