HGLRC M80 PRO GPS Module for FPV Racing Drones
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The HGLRC M80 PRO is a reliable and efficient FPV drone GPS module built to deliver accurate positioning and enhanced flight control for FPV racing drones. Equipped with a QMC5883 compass chip, it ensures precise directional data and quick location identification during flight.
The module features a high-sensitivity antenna that provides stronger signal reception, allowing faster satellite acquisition and stable connectivity even in challenging environments. With its convenient plug-and-play design, the HGLRC M80 PRO eliminates the need for soldering, making installation simple and hassle-free.
This GPS module is an essential upgrade for pilots looking to improve navigation accuracy, enable return-to-home functionality, and enhance overall drone safety and performance.
| Item Name | HGLRC M80 PRO GPS Module |
| Power Supply | 5V |

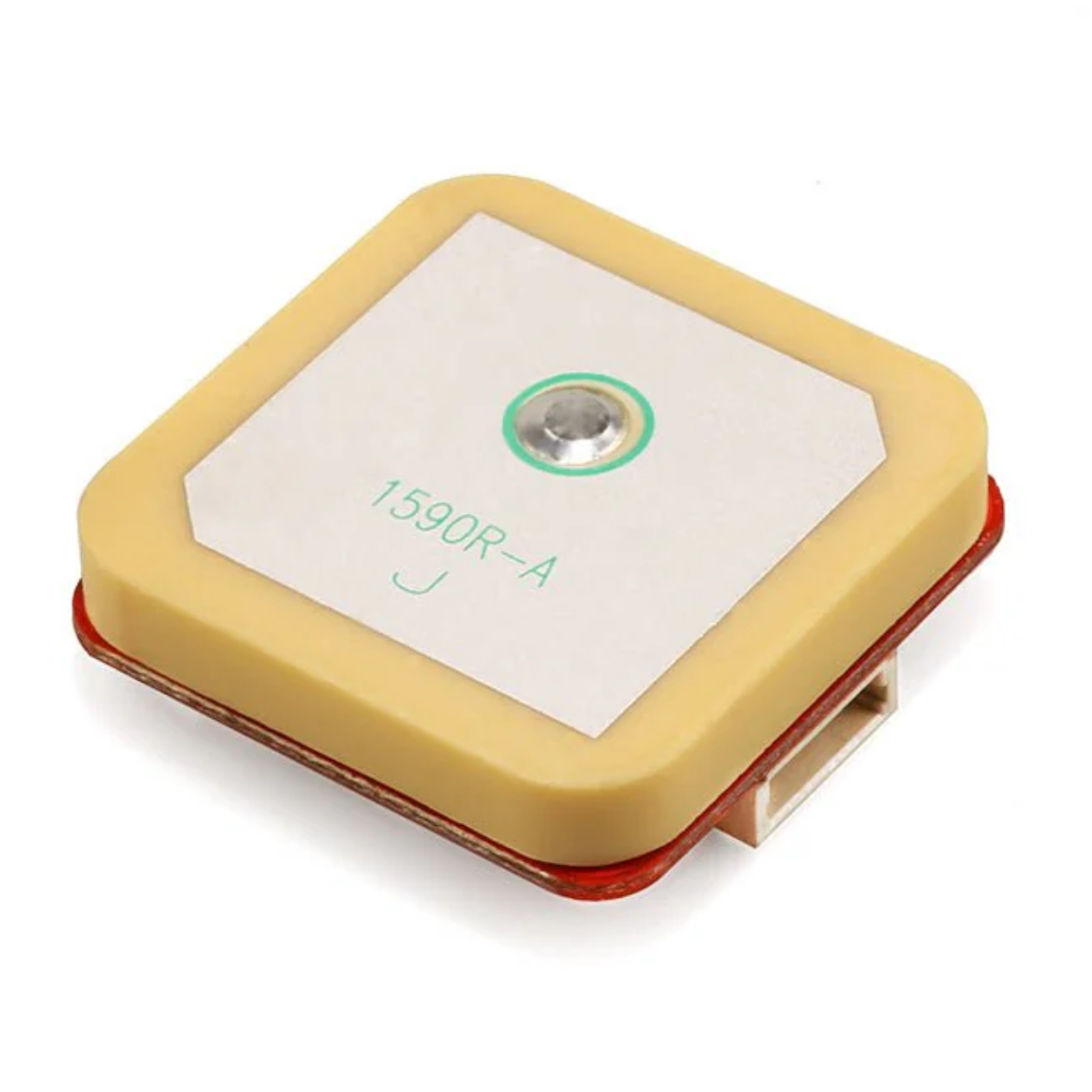

| Antenna | Ceramic Antenna |
| Receiving Format | GPS, GLONASS, GALILEO, QZSS, SBAS, BDS |
| Receiving Channels | 72 Searching Channels |
| Compass | QMC5883 |
| Baud Rate | 115200 dps |
| Output Frequency | 1Hz – 10Hz (Default: 10Hz) |
| Speed Precision | 0.05 m/s |
| Positioning Precision | 2D Accuracy: 2.5m (Open Sky) |
| Receiving Sensitivity | Tracking: -162 dBm Capture: -160 dBm |
| Max Height | 50,000 m |
| Max Speed | 500 m/s |
| Max Acceleration | 4G |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +105°C |
| Dimensions | 25mm × 25mm × 8.3mm |
| Weight | 12.5g |
