HGLRC M100 PRO GPS
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

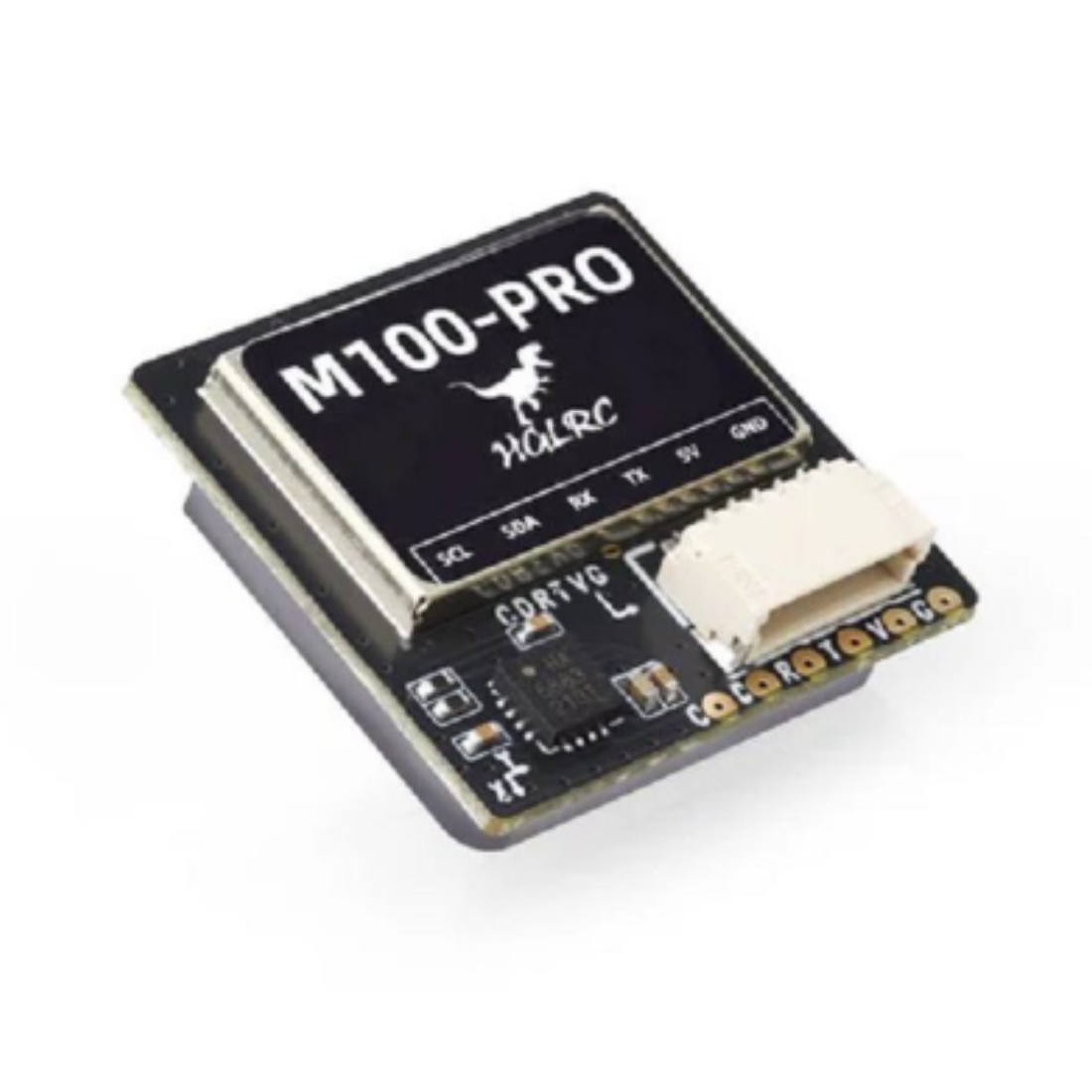

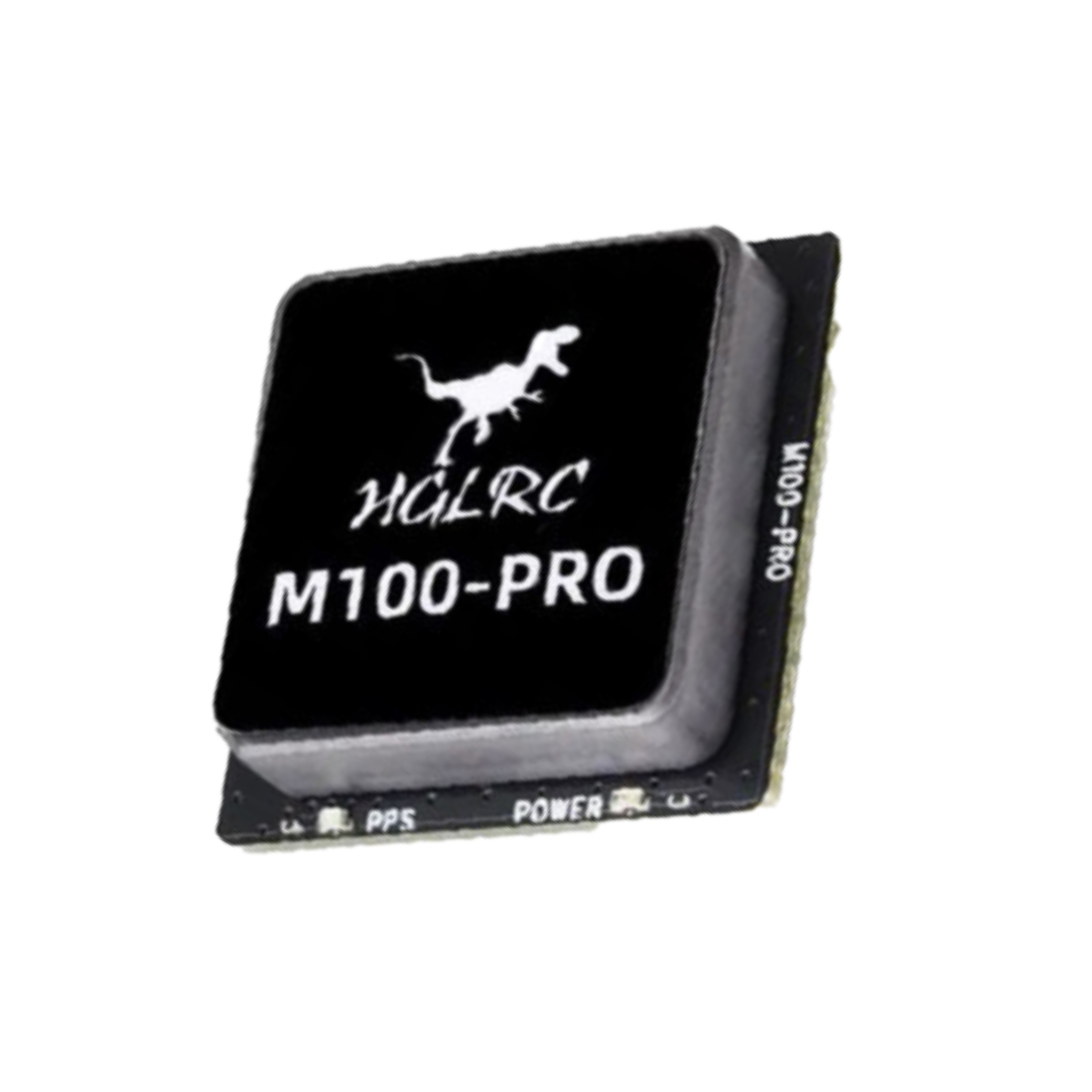

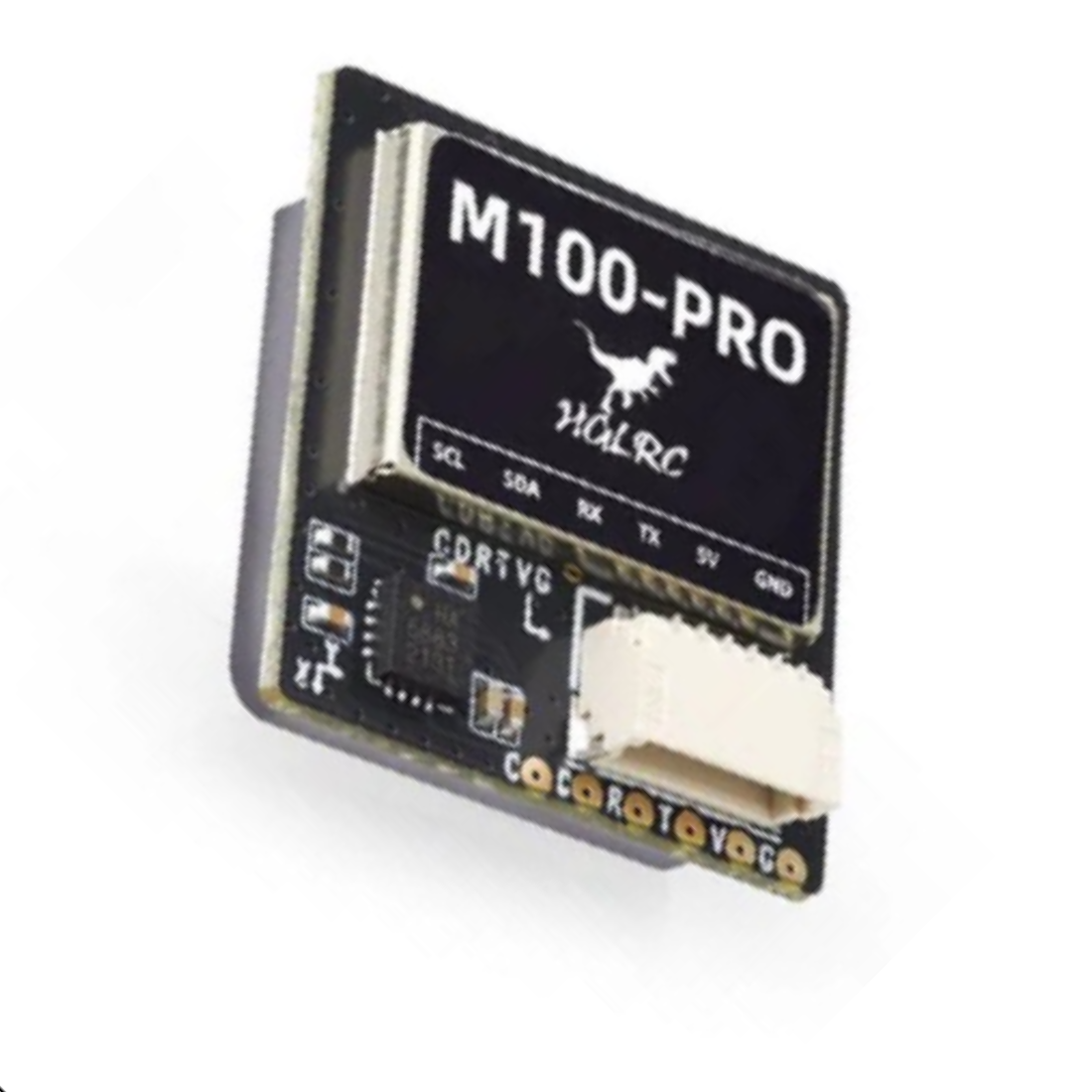

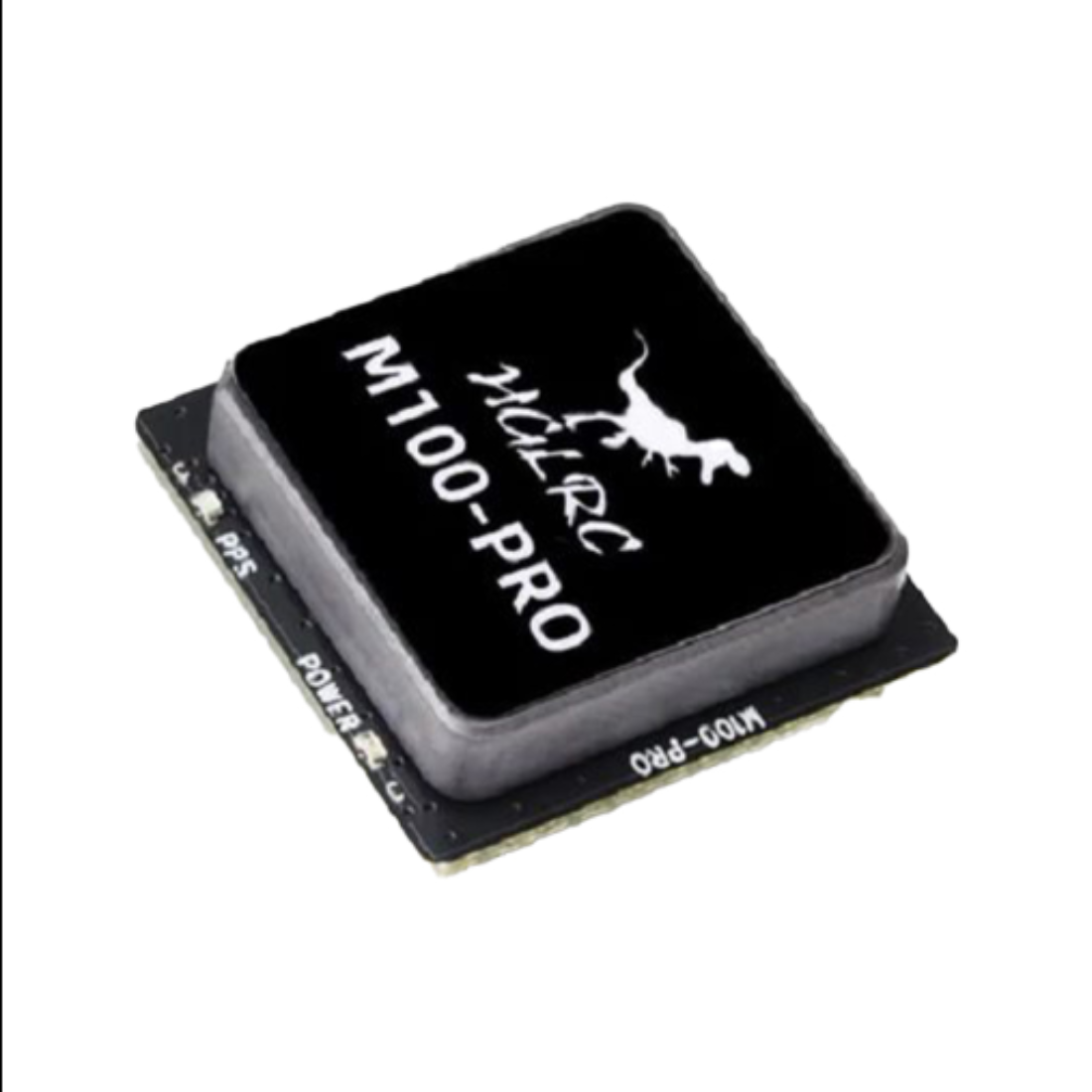

The HGLRC M100 PRO GPS is a compact and high-precision GPS module designed for drone applications. It utilizes a u-blox M10 chip, offering fast and accurate positioning with support for multiple satellite constellations, including GPS, GLONASS, Galileo, and BeiDou. This multi-constellation capability enhances signal reliability and accuracy, even in challenging environments.
The module is known for its low power consumption and small form factor, making it ideal for space-constrained builds. Additionally, it often features a built-in compass for heading information and a high update rate, contributing to stable and reliable flight performance.
| Item Type | GPS |
| Input Voltage (V) | 3.6–5.5 |
| Chip | B101 (10th Generation Chip) |
| Receiving Channel | 120 |
| Baud Rate | 115200 |
| Protocol | UBX |
| Antenna Type | Ceramic Antenna |
| Frequency | GPS L1, GLONASS G1, BDS B1, GALILEO E1, QZSS L1, SBAS L1, IRNSS |
| Speed | 500 m/s |
| Operating Temperature (°C) | -40°C to +85°C |
| Storage Temperature (°C) | -40°C to +105°C |
| Length (mm) | 21.2 |
| Width (mm) | 21.2 |
| Height (mm) | 8.2 |
| Weight (g) | 7.9 |
