Heat Flame Sensor

Heat Flame Sensor

Out of stock

Regular price Rs. 30
Regular price Rs. 53 Sale price Rs. 30
Sale Sold out 43% off Best Price Guaranteed
You save Rs. 23 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • High sensitivity IR receiver
  • Extremely sensitive to wave between 760-1100nm
  • Power supply indicator lamp
  • Comparator output indicator lamp
  • Operating voltage of this sensor is 3.3V to 5V
  • Analog quantity output
  • Trust Badge 1 Trust Badge 2 Trust Badge 3

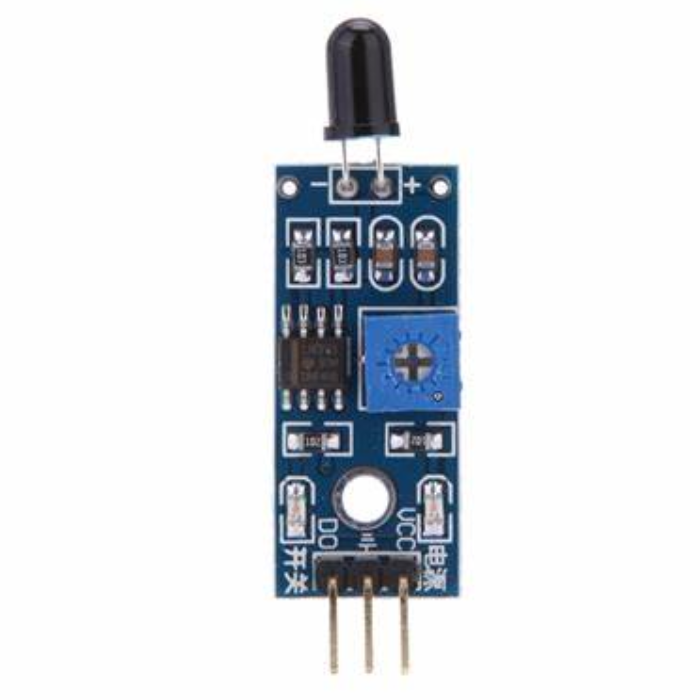

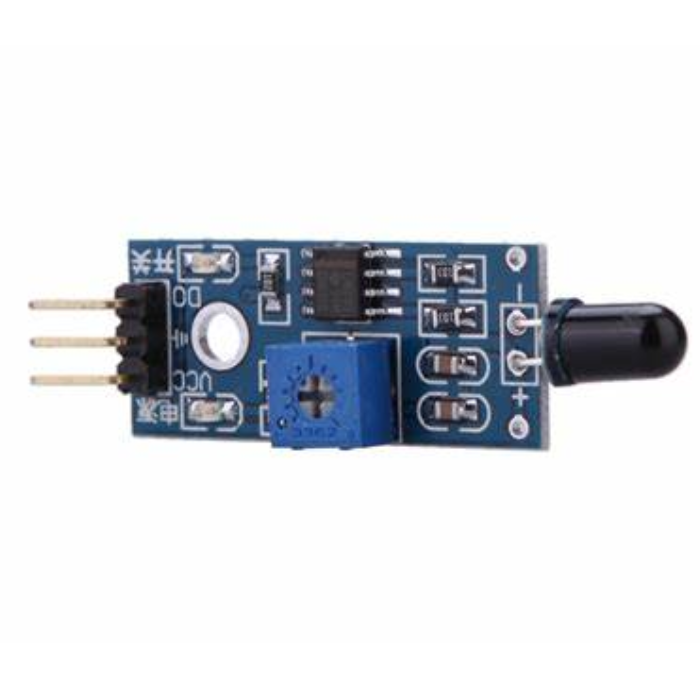

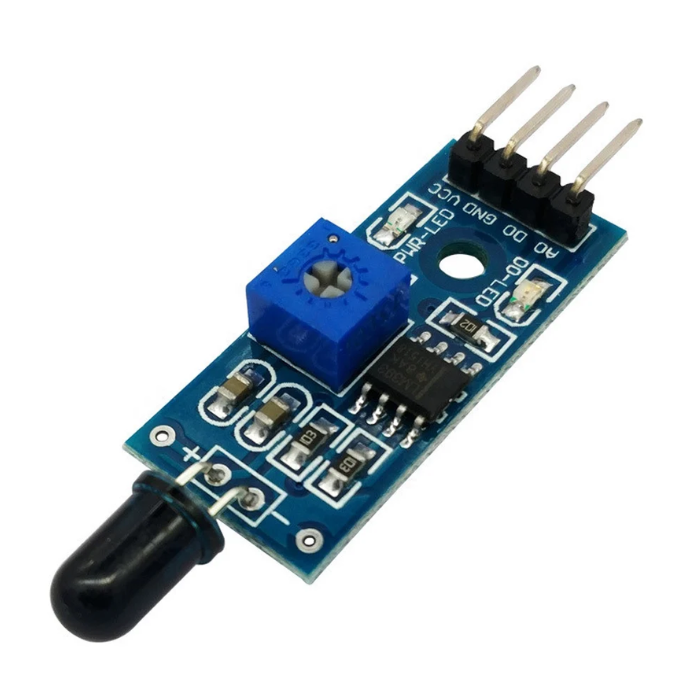

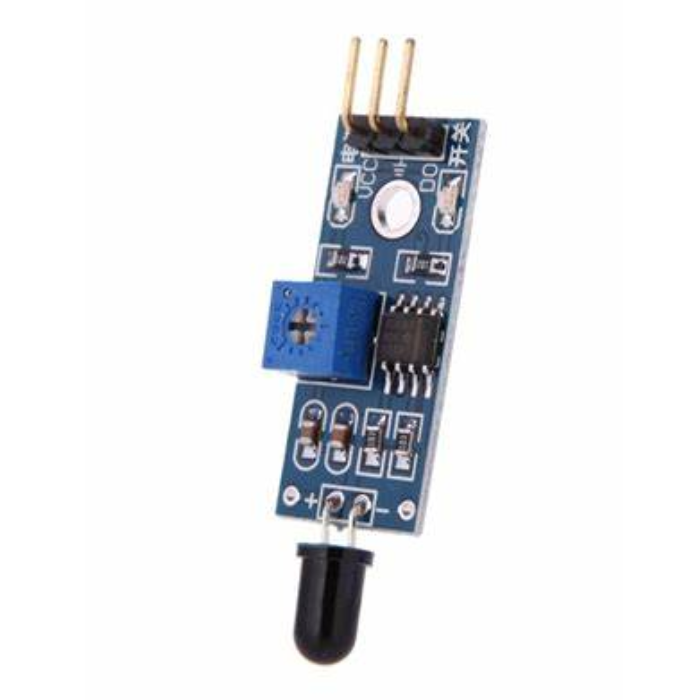

    Heat Flame Sensor

    This tiny Flame sensor infrared receiver module ignition source detection module is Arduino compatible and can use to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detect at a distance of 80 cm.

    Greater the flame, the farther the test distance. It has a Detect angle of  60° and is very sensitive to flame spectrum.

    It produces the one-channel output signal at the D0 terminal for further processing like an alarm system or any switching system.

    The sensitivity is adjustable with the help of a blue potentiometer given on the board.

    Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO.

    The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.

    Applications

    • Fire detection
    • Fire alarm
    • Fire fighting robot
    • Drying systems
    • Industrial gas turbines
    • Gas-powered cooking devices

    Package Includes:

    • 1 x Heat Flame Sensor

    Specifications:

    Output Channel 1
    Operating Voltage (VDC) 3.3 ~ 5
    Mounting Hole (mm) 3
    Dimensions (mm) 32 x 14 x 3

    Shipping & Returns

    • All orders confirmed before 3 pm IST are shipped on the
      same day, barring rare pickup delays on holidays or disturbances
    • Delivery time in Metro cities is 1-3 days, Others it is
      3-7 days. It varies based on location, reliant on courier services
    • Return window: 7 days from receipt unless stated
      otherwise. No refunds/replacements after
    • Returns only for non-working/damaged products are accepted
    • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
    • Refunds are processed within 3-4 working days post inspection and approval.

    For more details, please check our Shipping and Return Policy

    View full details
    Trust Badge 1 Trust Badge 2 Trust Badge 3

    Found a better price?

    Let us know!
    We'll try to match the price for you

    • ⚡ Dispatched within 24 hours

    • 💰 Earn RC Coins on every purchase

    • 🚚 Free shipping on orders above Rs 500/-

    • 🛠️ Dedicated Technical Support Team

    1 of 4

    1. What is a flame sensor?

    • The Flame sensor infrared receiver module is Arduino compatible and can be used to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detection at a distance of 80cm.

    2. Where is the flame sensor used?

    • The flame sensor is used to detect the presence of fire and is also used in applications like Fire detection, Fire alarm, Fire fighting robot, Drying systems, Industrial gas turbines, and Gas-powered cooking devices

    3. How does the flame sensor detect flame?

    • The Infrared flame sensors are designed to work within the infrared spectral band. When an explosion occurs, certain hot gases emit infrared patterns that can be analyzed with a specialized thermal imaging camera.

    4. Is it possible to use heat flame sensor in a fire suppression system?

    • Yes, A flame sensor is designed to detect and respond to the presence of a flame or fire. Responses to a detected flame depend on the installation but can include sounding an alarm, deactivating a fuel line (such as a propane or a natural gas line), and activating a fire suppression system.
