FST 5.08mm Circle Force Sensor (Original)
FST 5.08mm Circle Force Sensor (Original)
Low stock: 4 left
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Precision Detection: Ideal for sensing human touch, gaming input, medical applications, and navigation controls.
- Flexible: Ensures durability and suitability for various applications.
- Compact Design: Low-profile and small diameter for simple integration.
- Wide Force Range: Measures subtle touches to stronger grips (0.1N to 10N).
- Reliable: Over 1 million actuation cycles and +-10% repeatability.
- Versatile: Suitable for industrial use, monitoring loads on machinery, etc.
- Temperature Resistant: Operates from -30°C to +70°C.

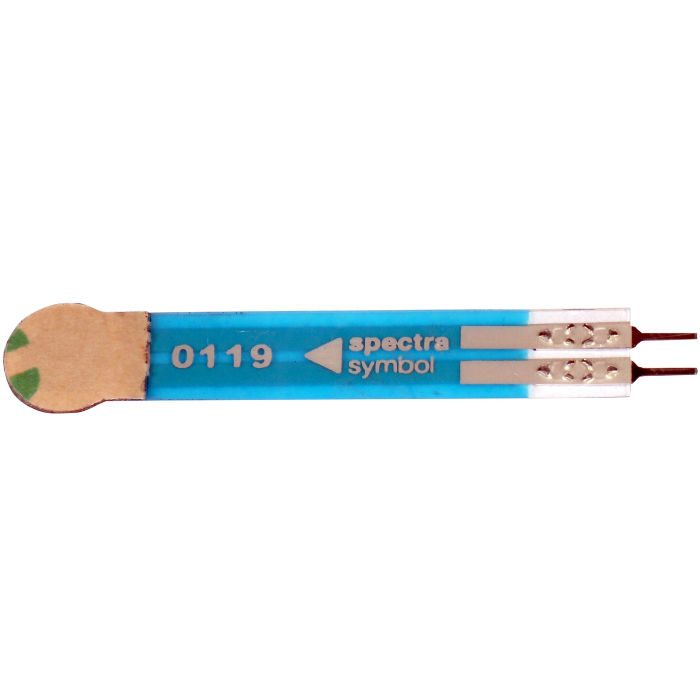

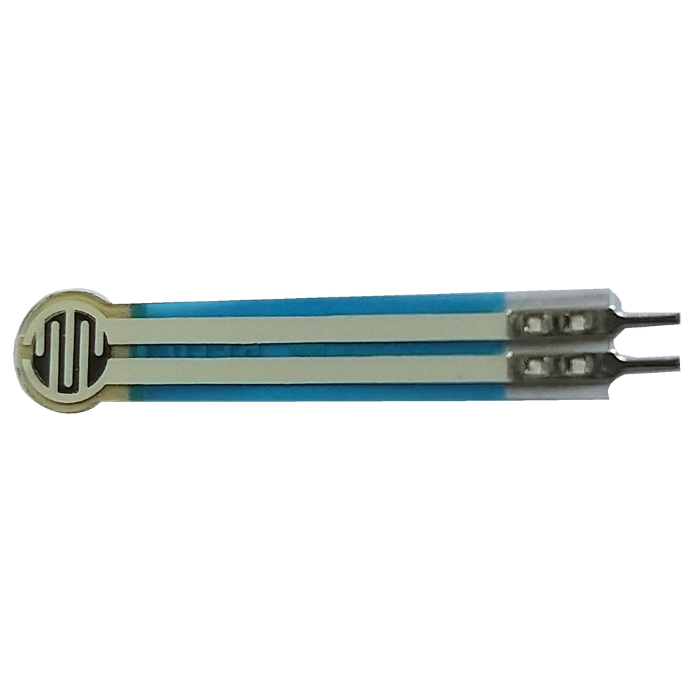

FST 5.08mm Circle Force Sensor
Circle Force Sensor, the epitome of precision and versatility. Crafted with flexible substrates, this 5.08mm sensor ensures reliable force and pressure measurement. Ideal for gaming, medical applications, and navigation controls, it boasts a compact 7.62mm diameter, making it perfect for diverse applications.
The sensor's wide force range, from 0.1N to 10N, caters to various needs, while its durability is guaranteed with over 1 million actuation cycles and a repeatability of +-10%. Whether you're weighing freight or ensuring the safety of industrial equipment, this sensor excels. Operating in temperatures from -30°C to +70°C, it thrives in any environment.
Elevate your technology with Circle Force Sensor. Made in India, this product is a testament to quality and innovation. We prioritize precision and reliability, making this force sensor the ideal choice for discerning users.
Package Includes:
- 1 x FST 5.08mm Circle Force Sensor
Specifications:
| Active Area | 5.08mm diameter |
| Size | 7.62mm diameter |
| Total Thickness | < 0.020 inch (0.51mm) |
| Resistance Range | 10 M ohms to 1 K ohms |
| Repeatability | +-10% |
| Operating Temperature | -30 DegreeC to + 70 DegreeC |
| Non-Actuated Resistance | > 10 M Ohms |
| Model | A round sensor |
| Force Range | 0.1N to 10N |
| Actuations Cycles | > 1 million |
