FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2

Rs. 1,082; ~~Rs. 1,400~~; Rs. 1,082; (-23%)
Unit price: per

Incl. GST (No Hidden Charges)

Please hurry! Only 5 left in stock

Quantity:

SKU: TIFQC0080

The FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2 features AFHDS 2A –2.4GHz system
The FS-A8S 8CH Mini Receiver Module has SC port: PPM/i-BUS/S.BUS.
The channel delay of this reciever is <15mS.
Compatible with: FS i4 i6 i6S i6X TM10 TM8 Transmitter.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

FLAT ₹ 100/- OFF

RC100

COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name*

Last Name*

Email*

Phone*

Quantity*

Company

Comments

Enter the Captcha

Reload

FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2

~~Rs. 1,400~~ Rs. 1,082

Quantity:

FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2

~~Rs. 1,400~~ Rs. 1,082

Description
Specifications
Shipping & Return

Description

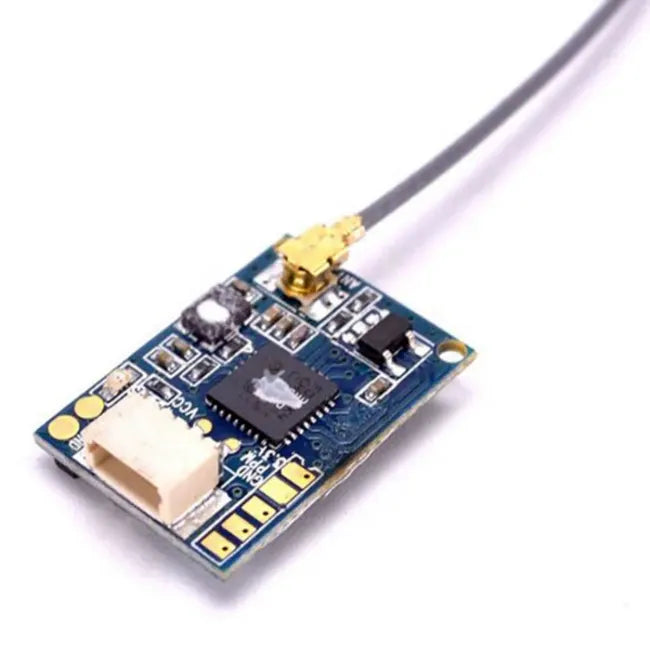

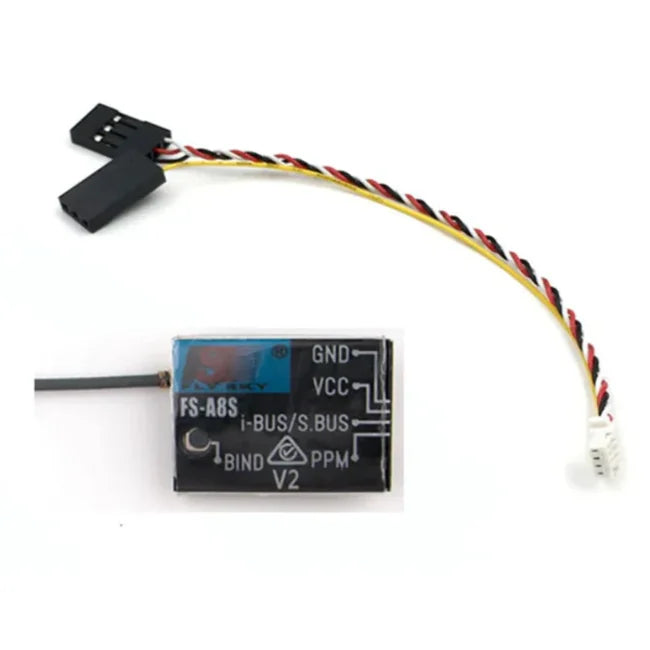

FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2

The FlySky FS-A8S 2.4G 8CH Mini Receiver Rev 2 is built for use in multi-rotor drones and is a 1-way receiver (no telemetry).

In the world of racing drones, the basic requirement is for small and lightweight components that will make a drone more and more nimble. This FS-A8S receiver fits these requirements superbly by being the only 20x14x5.3mm in size and 1.2gm in weight.

The MINI Receiver module uses the extremely stable AFHDS 2A (Automatic Frequency Hopping Digital System) protocol, supports standard PPM output, and has i-BUS support for up to 18 channels.

This is an excellent addition to your FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F, etc. FS series RC Transmitter.

Also check the Mini AIO FPV Camera 5.8G 40CH 25mW 800TVL Video Transmitter offered by Robocraze, resulting in a savings of Rs. 500. The camera features a 5.8G 40CH 25mW video transmitter, an 800TVL CMOS image sensor, and a 2.1mm lens. It also includes an OSD for viewing flight information and is compatible with various FPV drones.

Specifications

Package Includes:

1 x FlySky FS-A8S 2.4G 8CH Mini Receiver Module Rev 2

Specifications:

Operating Voltage (VDC)	4.0 ~ 8.4V
Current Consumption (mA)	40
Control Distance	300m
No. of Channels	8 (PPM), 18 (i-BUS)
No. of Band	135
Modulation Type	GFSK
RF Range	2.408-2.475 GHz
Bandwidth	500KHz
Rx Sensitivity (dBm)	-92
Signal Output	IBUS, PPM
i-Bus Interface	Yes
Antenna Length (mm)	90
Color	Black
Net weight (gm)	6
Dimensions (mm) LxWxH	20 x 14 x 5.3

Specifications:

4.0 ~ 8.4V

Specifications:

300m

Specifications:

8 (PPM), 18 (i-BUS)

Specifications:

135

Specifications:

GFSK

Specifications:

2.408-2.475 GHz

Specifications:

500KHz

Specifications:

-92

Specifications:

IBUS, PPM

Specifications:

Yes

Specifications:

Black

Specifications:

20 x 14 x 5.3
