- Continuous 30A current, 56A instantaneous discharge
- Ensures voltage stability with balanced current of 58mA
- Protects the battery from harmful voltage extremes
- Small size (56x47mm) and only 19g in weight
- Working current ≤30uA, sleep current ≤20uA during over-discharge
- Functions well in temperatures from -30°C to +80°C

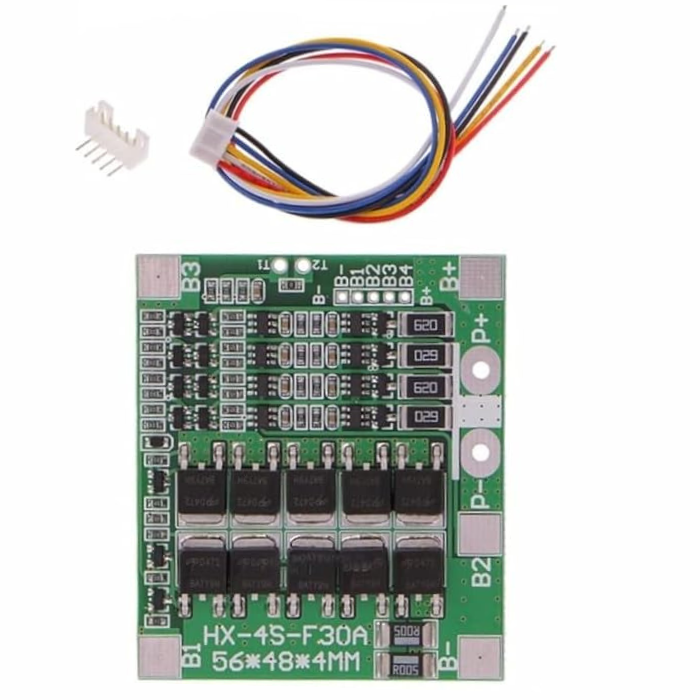

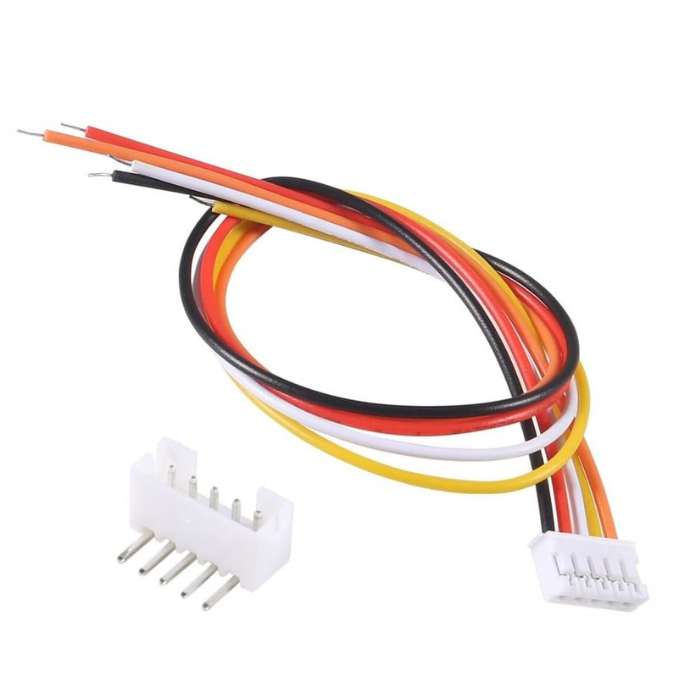

- Comes with cables for convenient installation and use
Flash 4S 30A 148V Li-Ion Lithium 18650 Battery Protection Board
The Flash 4S 30A 148V Li-Ion Lithium 18650 Battery Protection Board is a high-performance protection board designed for 4S lithium iron phosphate batteries. With a continuous discharge current of up to 30A and an instantaneous discharge of 56A, this board ensures safe and efficient operation of your battery system. It features a built-in balance circuit that maintains voltage stability and prolongs battery life. This compact protection board comes with an integrated cable for easy setup, supporting fast charging up to 20A with a charging voltage of 14.8V. Additionally, the board operates within a wide temperature range from -30°C to +80°C, making it suitable for various applications.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Share










Found a better price?
Let us know!
We'll try to match the price for you
-
⚡ Dispatched within 24 hours
-
💰 Earn RC Coins on every purchase
-
🚚 Free shipping on orders above Rs 500/-
-
🛠️ Dedicated Technical Support Team
Package Includes
1 x Flash 4S 30A 148V Li-Ion Lithium 18650 Battery Protection Board
Specifications
Specification | Details |
---|---|
Brand | SG Flash |
ROHS Complaint | Yes |
Material | Epoxy |
Dimensions Width | 2.2 cm |
Dimensions Height | 1.8 cm |
Dimensions Weight | 19g |
Power Features Power Source | DC |
Power Features Other Power Features | This board is 4 string 3.2V Lithium iron phosphate battery protection board; High current protection board, continuous 30A current, with balance circuit. The board comes with cable. |

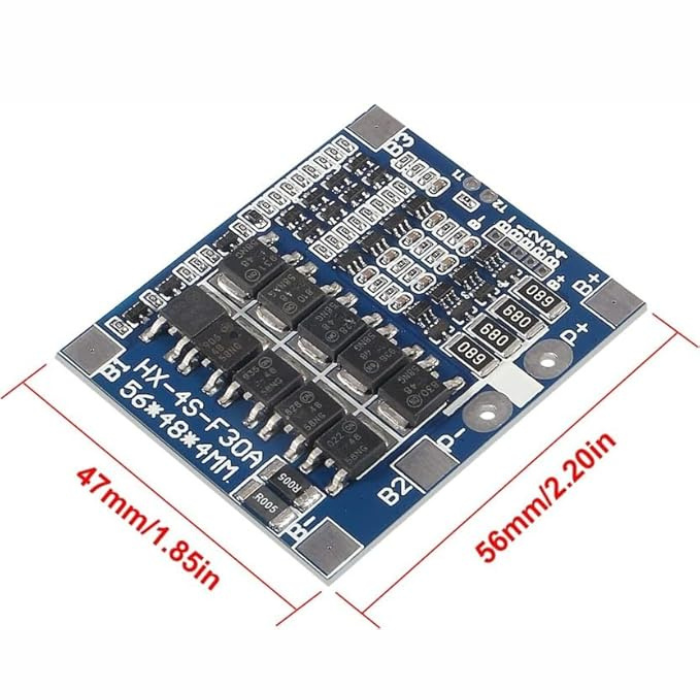

PCB Board Size | 56x47mm/2.2x1.85" |
Discharge Continuous Discharging Current | 30A (MAX) |
Discharge Instantaneous Discharge Current | 56A |
Charge Charging Voltage | 14.8V |
Charge Charging Current | 20A (MAX) |
Balance Detect Voltage | 3.60±0.05V |
Balance Release Voltage | 3.59±0.05V |
Balance Current | 58mA |
Self-Consumption Working Current | ?30uA |
Self-Consumption Sleep Current (when Over-discharge) | ?20uA |
Working Temperature Range | -30°C to +80°C |
Customer service promptly answered my technical questions about load current limits and capacitor recommendations, guiding me to safely use the board with my brush motor setup and battery pack.
The board is made with quality MOSFETs and components, providing reliable protection and balance functions. It feels durable and well-constructed for long-term battery management in various applications.
This 4S 30A protection board effectively safeguards lithium-ion batteries from overcharge, over-discharge, short circuit, and overcurrent, ensuring safe operation and longer battery life in my power tools and DIY projects without any issues.
The board operates smoothly with continuous discharge up to 30A and balanced charging. It handled my 4-series 18650 battery pack reliably without overheating or unexpected shutdowns during prolonged use sessions.
The compact 46x60mm size fits easily inside battery packs without adding bulk. Installation was straightforward, making it ideal for custom battery assemblies in drills and LED lighting systems with tight space constraints.
