- This is ESP32 LoRa with Display - 863MHz-928MHz SX1276
- Frequencies between 863MHz and 928MHz
- This has High sensitivity of about -148dBm
- The Power output of +20 dBm
- Suitable for LoRaWAN wireless communication development and other IoT projects
- Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment.
- Can be very simple and fast for program verification and product development.

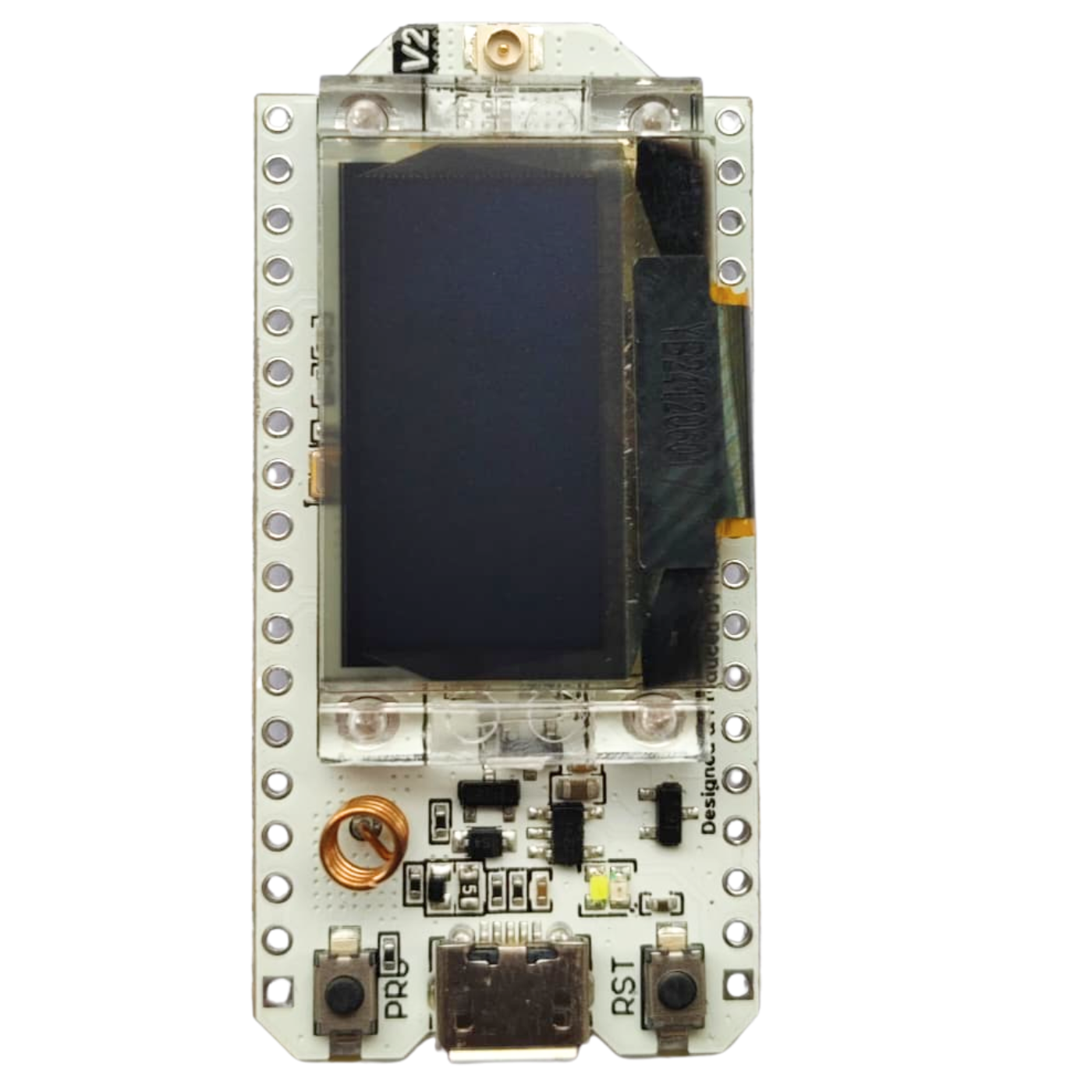

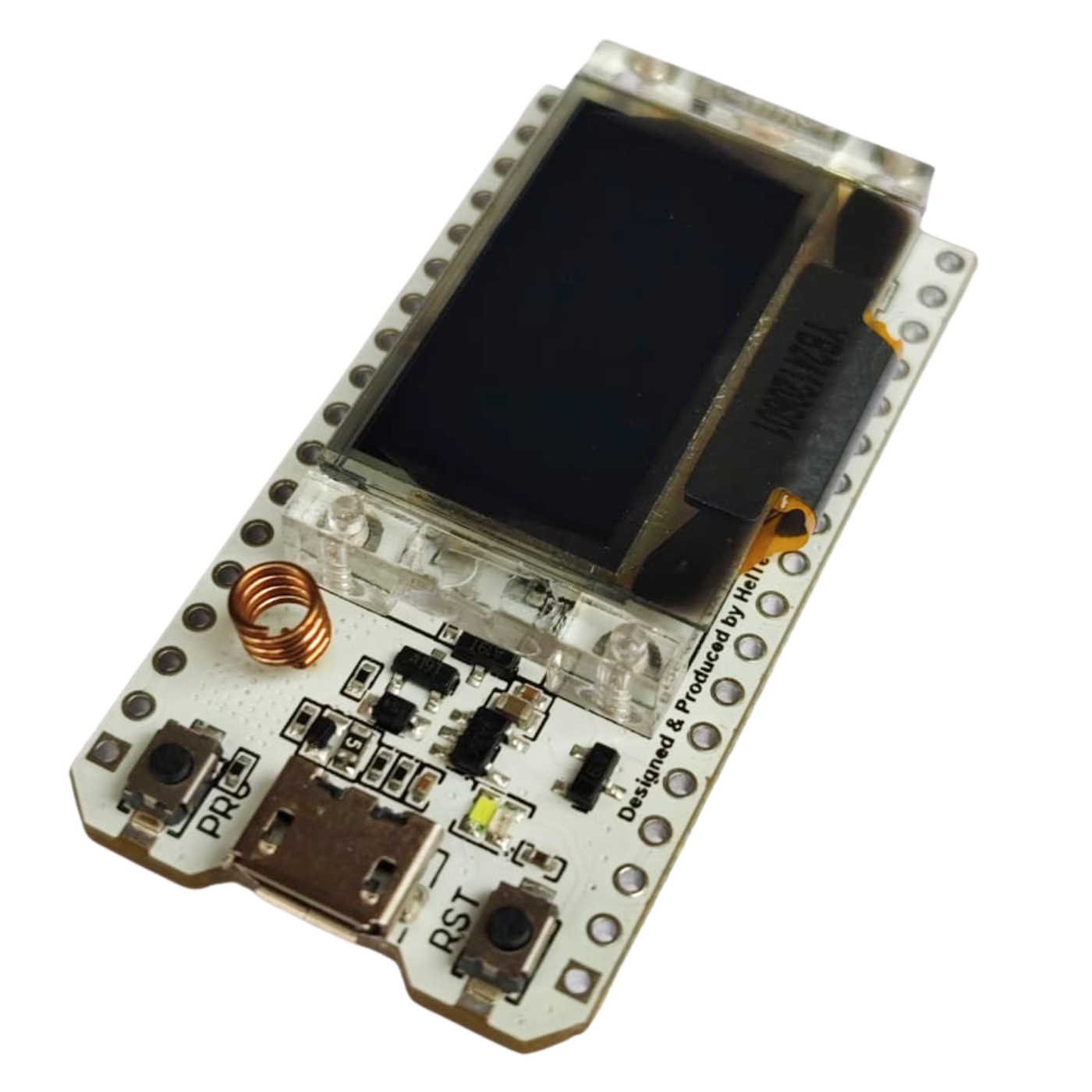

ESP32 LoRa with Display
ESP32 LoRa with Display - 863MHz-928MHz SX1276 is a development board for IoT projects that includes an ESP32 microprocessor, a SX1276 LoRa node chip, and a 0.96-inch OLED display.
ESP32 LoRa with Display operates on frequencies between 863MHz and 928MHz and is designed for wireless communication projects. The board has a high sensitivity of about -148dBm and a power output of +20 dBm. It also includes a lithium battery charging circuit and a CP2102 USB to serial chip. The board can be used for LoRaWAN wireless communication development and other IoT projects.
Pinout:
Pinout Of ESP32 LoRa with Display
Features:
- Dual-core processor clocked at 240MHz with computing power up to 600DMIPS, and 520 KB SRAM.
- Supports Sniffer, Station, softAP, and Wi-Fi Direct modes.
- Data rate of 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20.
- High sensitivity of about -148dBm.
- Power output of +20 dBm.
- Includes a lithium battery charging circuit, a CP2102 USB to serial chip, and a 0.96-inch blue OLED display.
- Suitable for LoRaWAN wireless communication development and other IoT projects.
Package Includes:
- 1 x ESP32 LoRa with Display
Specifications
| Dominant Frequency | 240MHZ |
| Processor | for Tensilica LX6 Dual Core |
| Flash | 32M-Bits |
| Transmit power | 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n |
| Dimensions | 11 x 9 x 5cms |
| Weight | 25 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
Regular price
Rs. 1,788
Regular price
Rs. 2,448
Sale price
Rs. 1788
Unit price
per
Incl. GST (No Hidden Charges)
Sold out

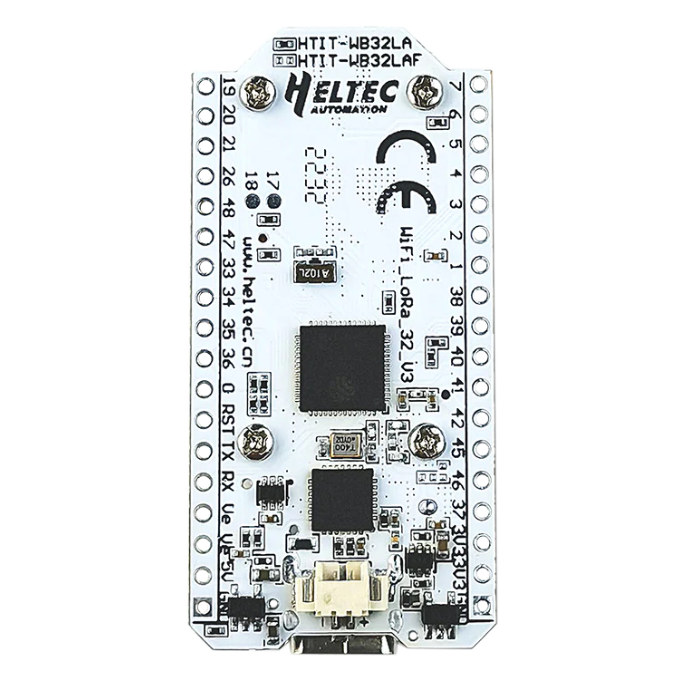

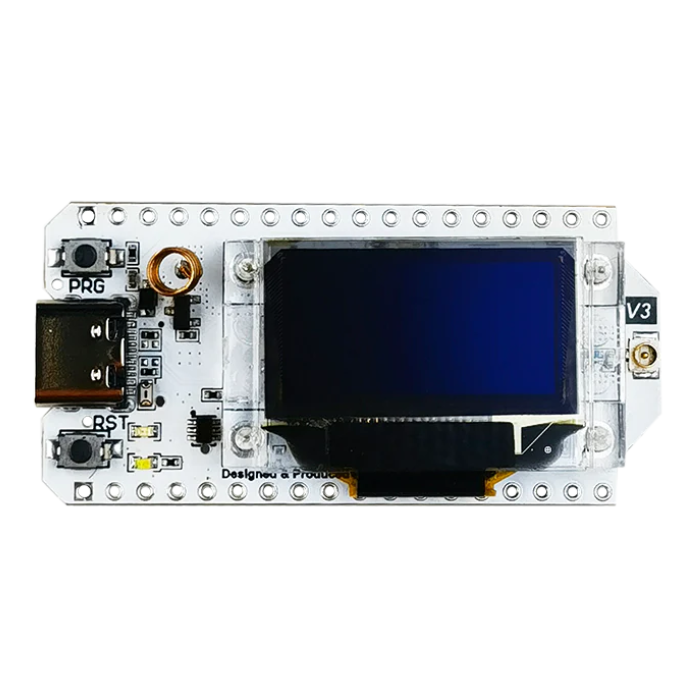

V3 Version 863MHz-928MHz SX1262 ESP32 WIFI bluetooth Lora with 0.96 OLED Display
Regular price
Rs. 1,788
Regular price
Rs. 1,999
Sale price
Rs. 1788
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Multi-Channel Indoor Gateway For Lorawan-LPS8N
Regular price
Rs. 25,999
Regular price
Rs. 27,099
Sale price
Rs. 25999
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is ESP32 LoRa with Display - 863MHz-928MHz SX1276?
ESP32 LoRa with Display - 863MHz-928MHz SX1276 is a development board for IoT projects that includes an ESP32 microprocessor, a SX1276 LoRa node chip, and a 0.96-inch OLED display. It operates on frequencies between 863MHz and 928MHz and is designed for wireless communication projects. The board has a high sensitivity of about -148dBm and a power output of +20 dBm. It also includes a lithium battery charging circuit and a CP2102 USB to serial chip. The board can be used for LoRaWAN wireless communication development and other IoT projects. The main chip uses ESP32, LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack, and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).
2. What is the transmission distance of ESP32 LoRa with Display - 863MHz-928MHz SX1276?
ESP32 LoRa with Display - 863MHz-928MHz SX1276 has a transmission distance of about 2.6 km in an open area communication environment
