- USB Type-C programmer for ESP32 & ESP8266
- Features CP2102 USB-to-UART bridge for stable, high-speed data transfer
- Supports both 3.3V and 5V output levels for broad compatibility
- Includes Reset and Boot buttons for easy programming
- Real-time LED indicators for power and data status
- Comes with a 2.54mm pitch header and unsoldered header for custom connections
- Ideal for IoT, embedded systems, and rapid prototyping

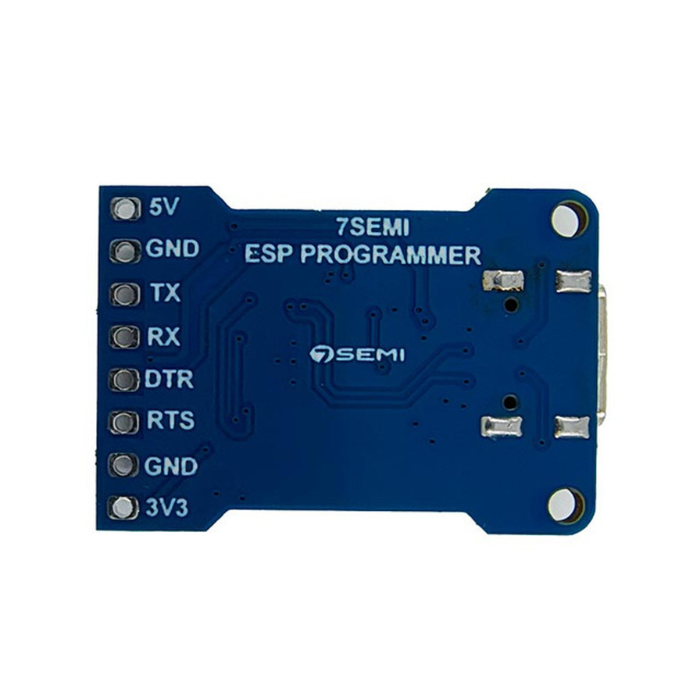

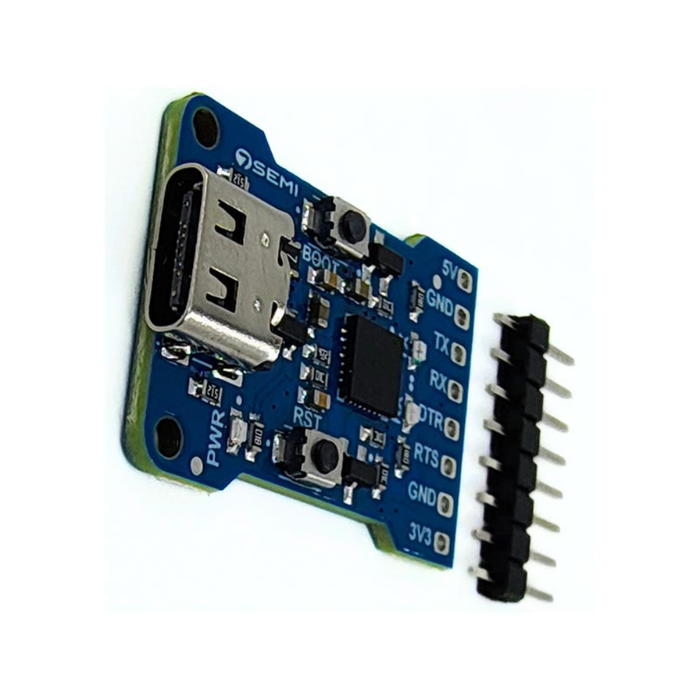

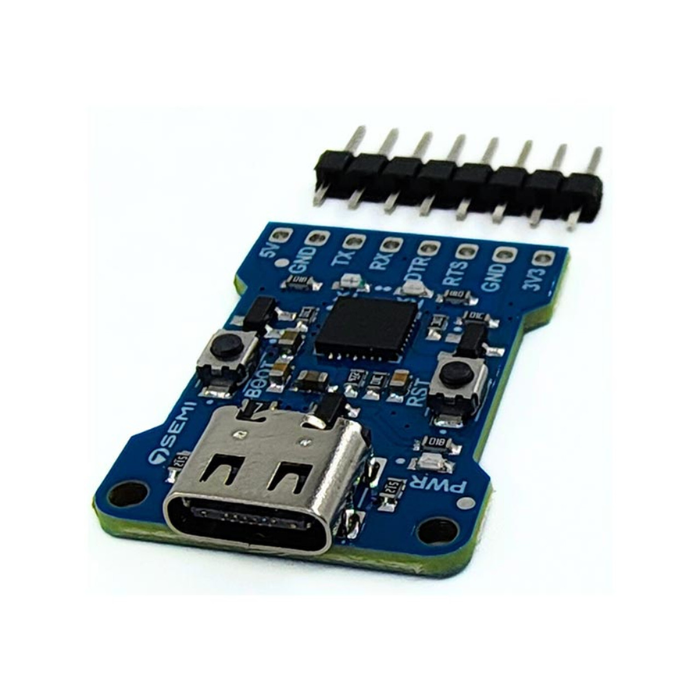

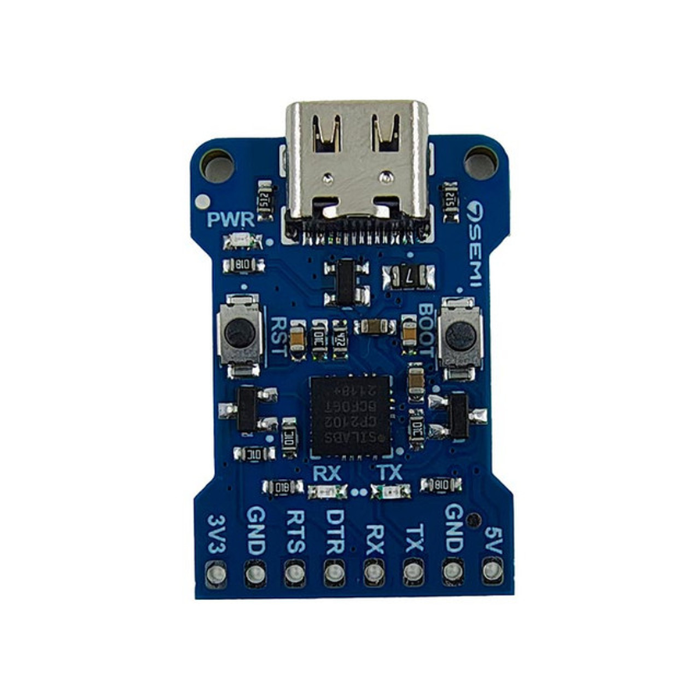

ESP32 & ESP8266 USB Type C Programmer with USB to UART Converter -7Semi
The 7Semi ESP32 & ESP8266 USB Type-C Programmer is a powerful and reliable USB-to-UART converter designed to streamline development with ESP32 and ESP8266 microcontrollers.
Featuring the high-performance CP2102 bridge, it delivers stable and high-speed data transfers for smooth programming and debugging. This programmer supports both 3.3V and 5V output levels, making it compatible with a wide range of development boards and IoT components.
Real-time LED indicators offer clear visual feedback on power and data transmission, while dedicated Reset and Boot buttons simplify the programming process. With a standard 2.54mm pitch header and an included unsoldered header, the 7Semi programmer is a flexible and essential tool for any embedded systems developer or electronics hobbyist.
Features:
- USB-C Interface: Provides fast, plug-and-play interface for reliable data transfer.
- The CP2102 USB to UART Bridge: Allows for dependable, high-speed connection between the programmer and the microcontroller.
- LED Indicators: The integrated Power, RX, and TX LEDs enable real-time monitoring of connection and data transfer.
- Reset and Boot Switches: Dedicated switches improve programming control, making development easier and more efficient.
- 3.3V and 5V output compatibility: Supports both voltage levels, providing flexibility for various components and microcontroller boards.
- Standard 2.54mm Pitch Header: All signals are accessible via a standard 2.54mm pitch header, with an unsoldered header provided for bespoke configurations.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x ESP32 & ESP8266 USB Type C Programmer
Specifications:
| Specification | Details |
|---|---|
| Compatible Chips | ESP32, ESP8266 |
| USB Interface | USB Type-C |
| Bridge Chip | CP2102 USB-to-UART |
| Output Voltage Levels | 3.3V and 5V selectable |
| Indicators | Power and Data Transmission LEDs |
| Control Buttons | Reset and Boot buttons |
| Header Type | 2.54mm pitch header (unsoldered included) |
