Endstop Switch for 3D Printers with Cable

Endstop Switch for 3D Printers with Cable

Out of stock

Regular price Rs. 41
Regular price Rs. 79 Sale price Rs. 41
Sale Sold out 48% off Best Price Guaranteed
You save Rs. 38 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.


FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • The endstop switch for 3d printers is made high quality connection wires using 22AWG copper.
  • It has a rating of current 2A, 300V voltage.
  • The insulation provided for the product give it a working temperature upto 80 degrees.
  • The endstop switch uses a lever switch to detect when it is activated.

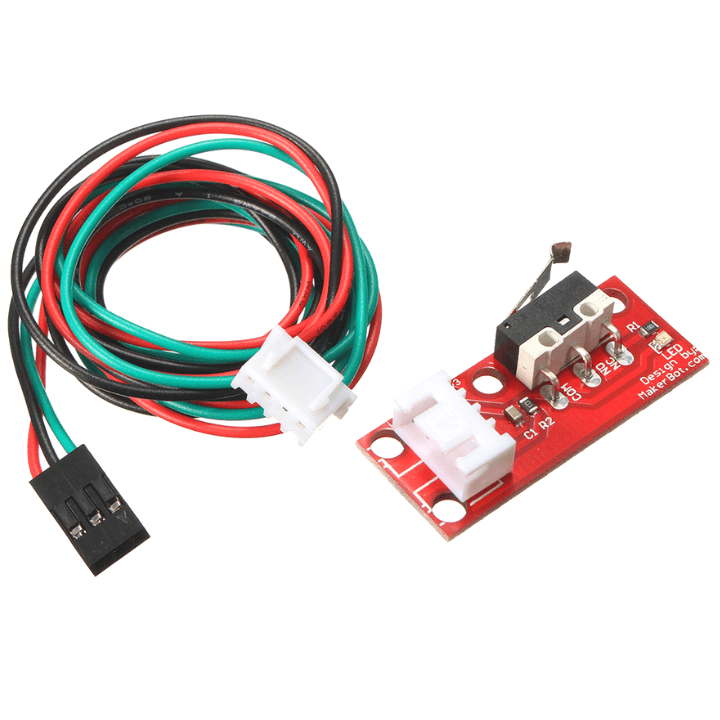

RAMPS 1.4 Endstop Switch For RepRap Mendel 3D Printer With 70cm Cable

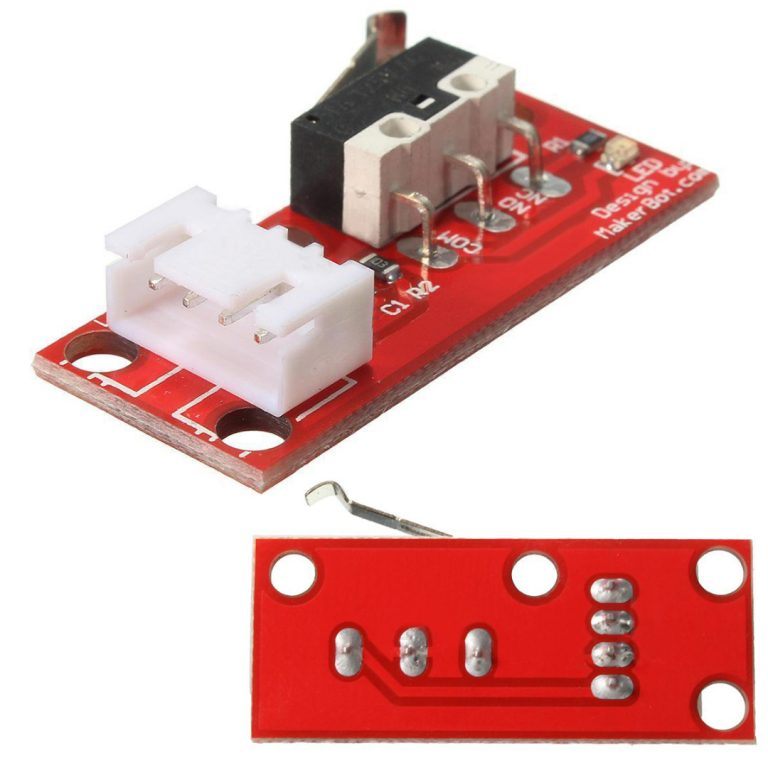

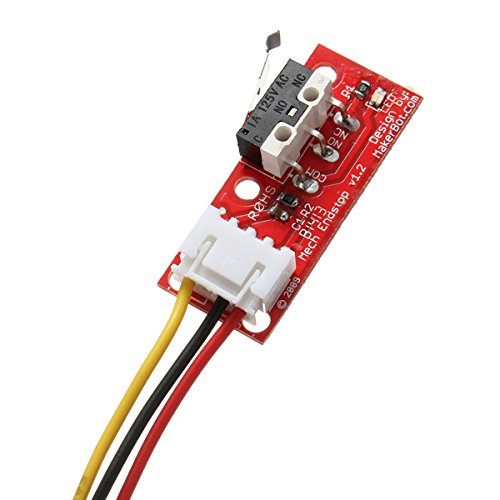

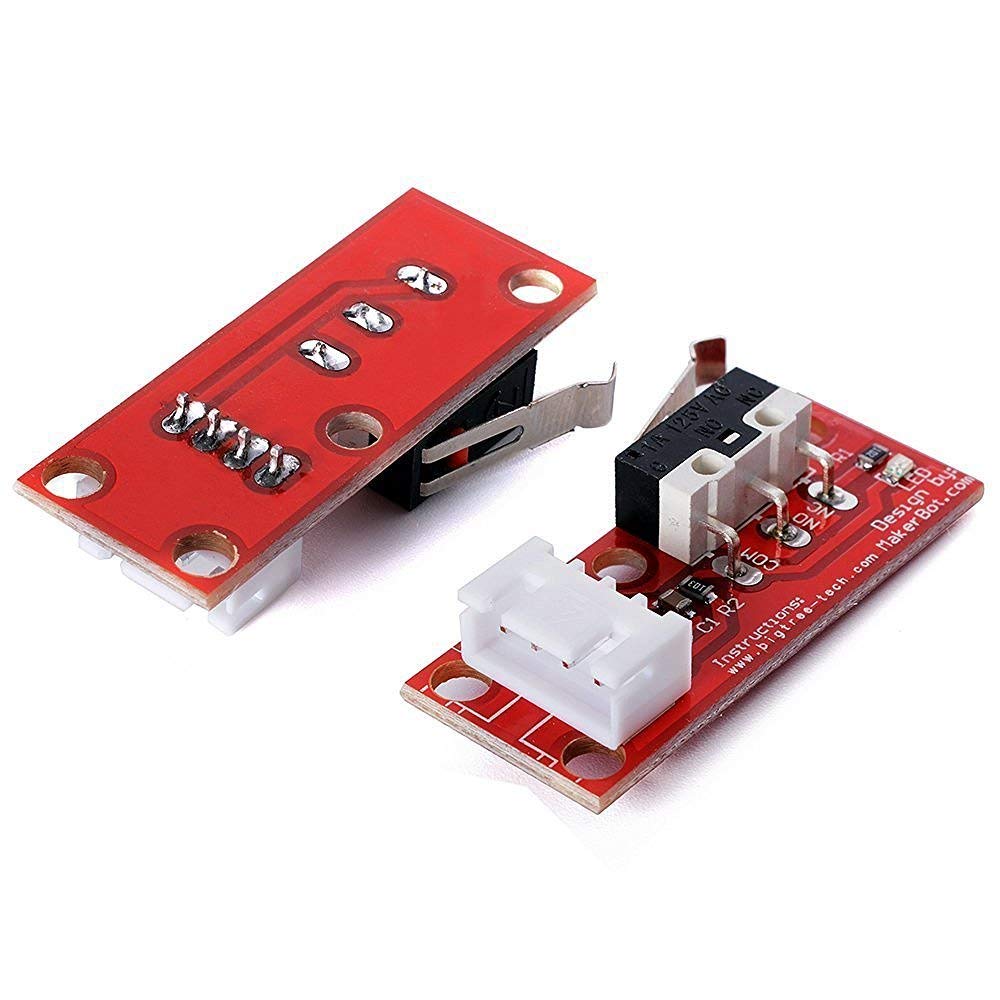

This end stop switch for 3D printers comes along with a 70cms cable wire. They are used together to detect when an X/Y/Z stage has reached its minimum or maximum in a 3D printer. The endstop switch for 3D printers is manufactured with a standard 4 pin 100″ pitch header and also features an LED on the board that will light up when the switch is activated.

It using 22AWG wire, copper wire inside is very thick, can be resistant to current 2A, 300V voltage. An insulating layer over a wide range of temperatures, up to 80 degrees. Is the common connection of thin copper wire can not match. Not easy to pull off, plug it convenient, for ease of use, plug the other side to do the one, you can use the direct plug.

Package Includes:

  • 1 x Endstop Switch for 3D Printers with Cable


Wire Material 22 AWG Wire with thick Copper Wire
Resistance  Up to 2A, 300V
Temperature Range Up to 80 Degree Celsius
Board Size Approx. 39mm x 16mm x 7mm
Wire length 70cm
Weight  15 grams
