Elecrow ThinkNode M7 Meshtastic LoRa Gateway | ESP32-S3
Elecrow ThinkNode M7 Meshtastic Wireless Communication Gateway with ESP32-S3, LR1110 & PoE Support
- Rs 5,999/-
- Rs 5,999/-
-
Rs 8,399/-
- 29%
Save Rs 2,400/-
RC REWARDS
Earn
59
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFCC0388
Couldn't load pickup availability

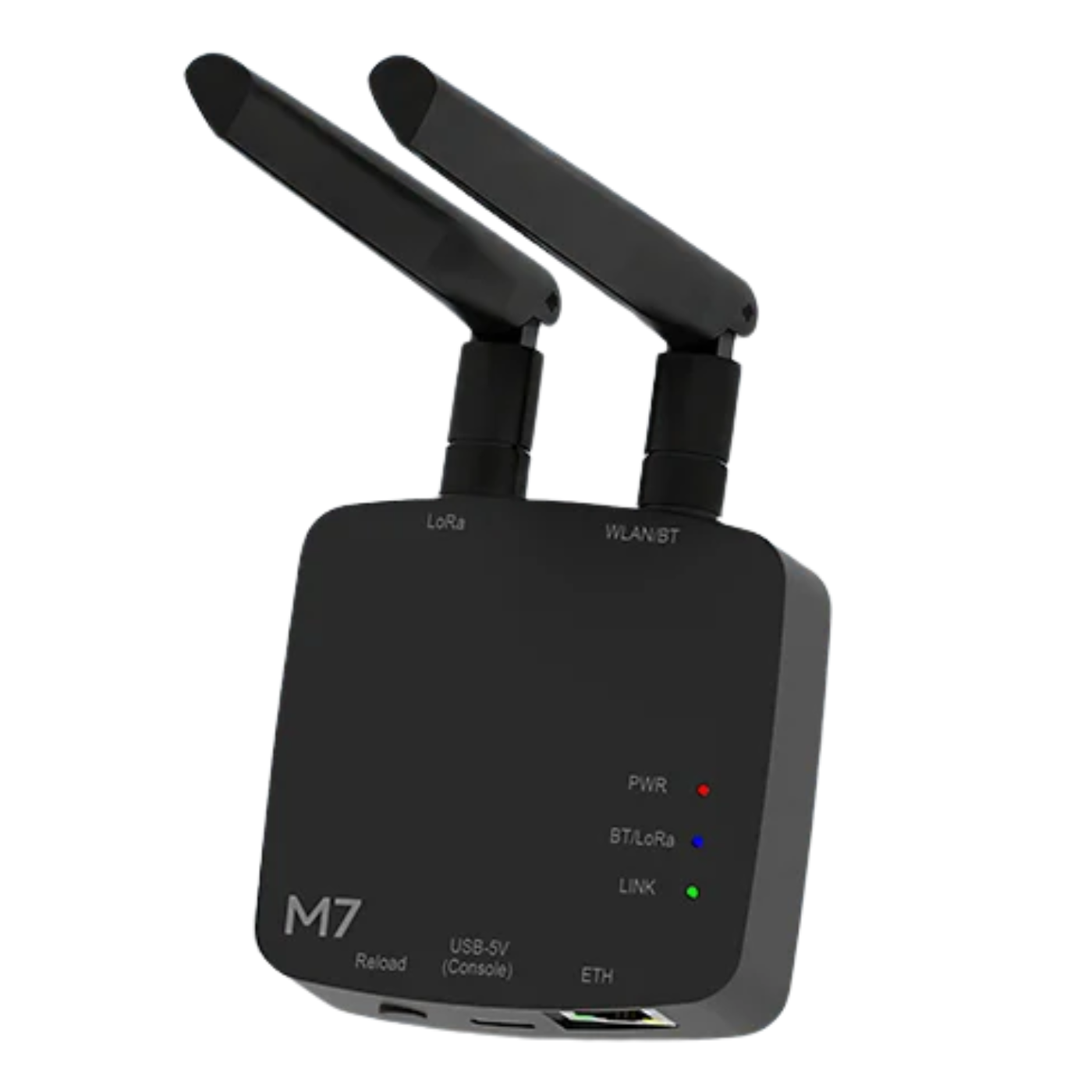

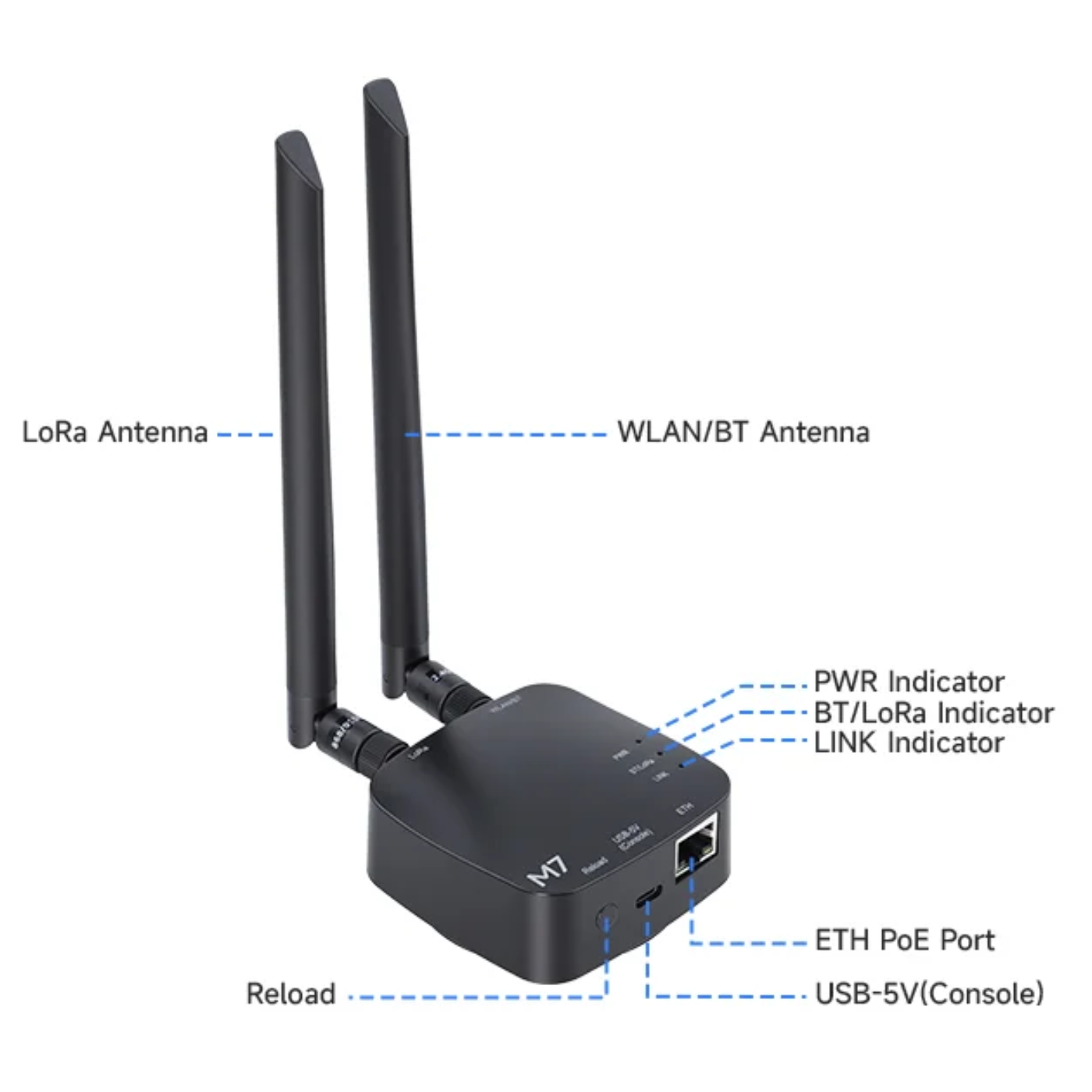

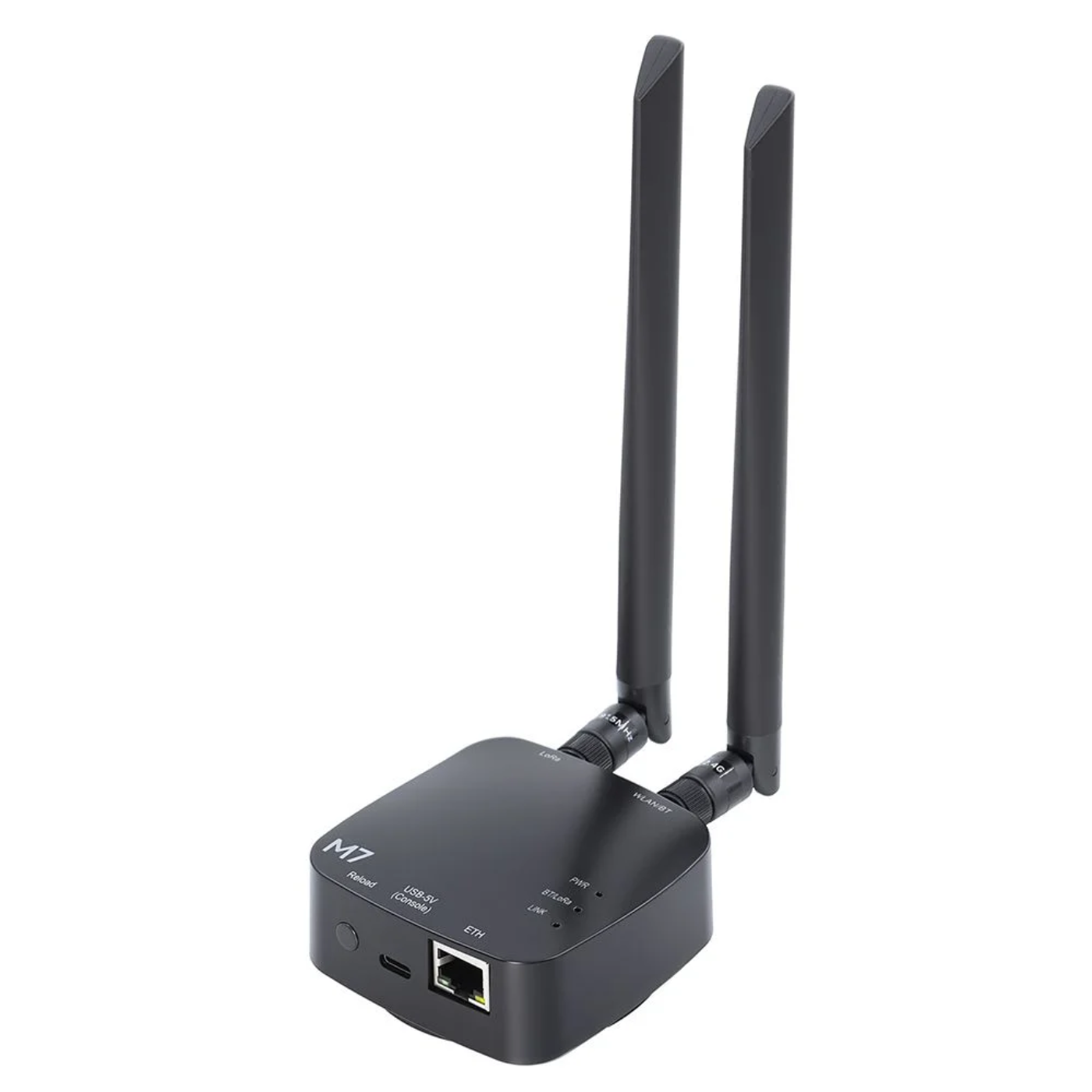

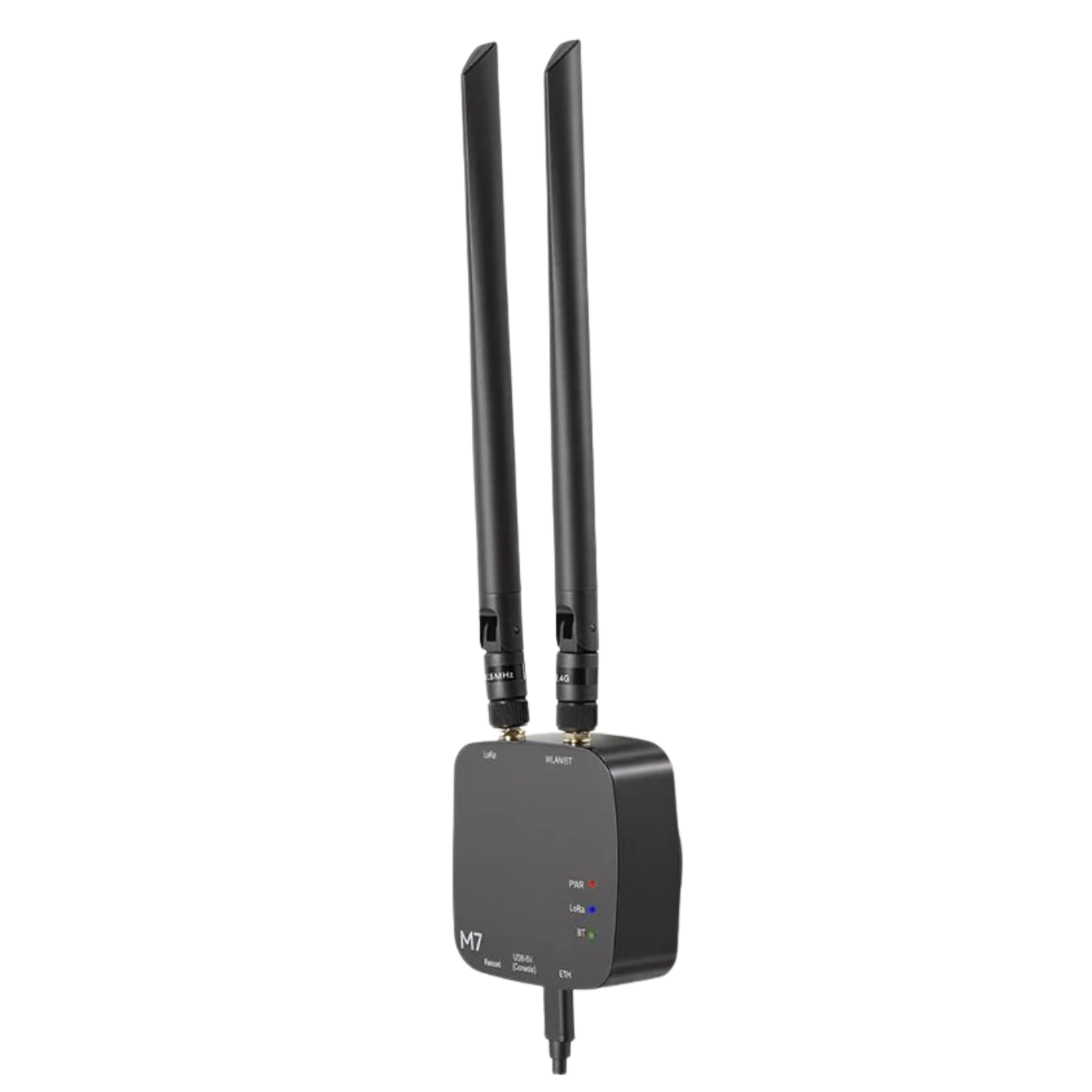

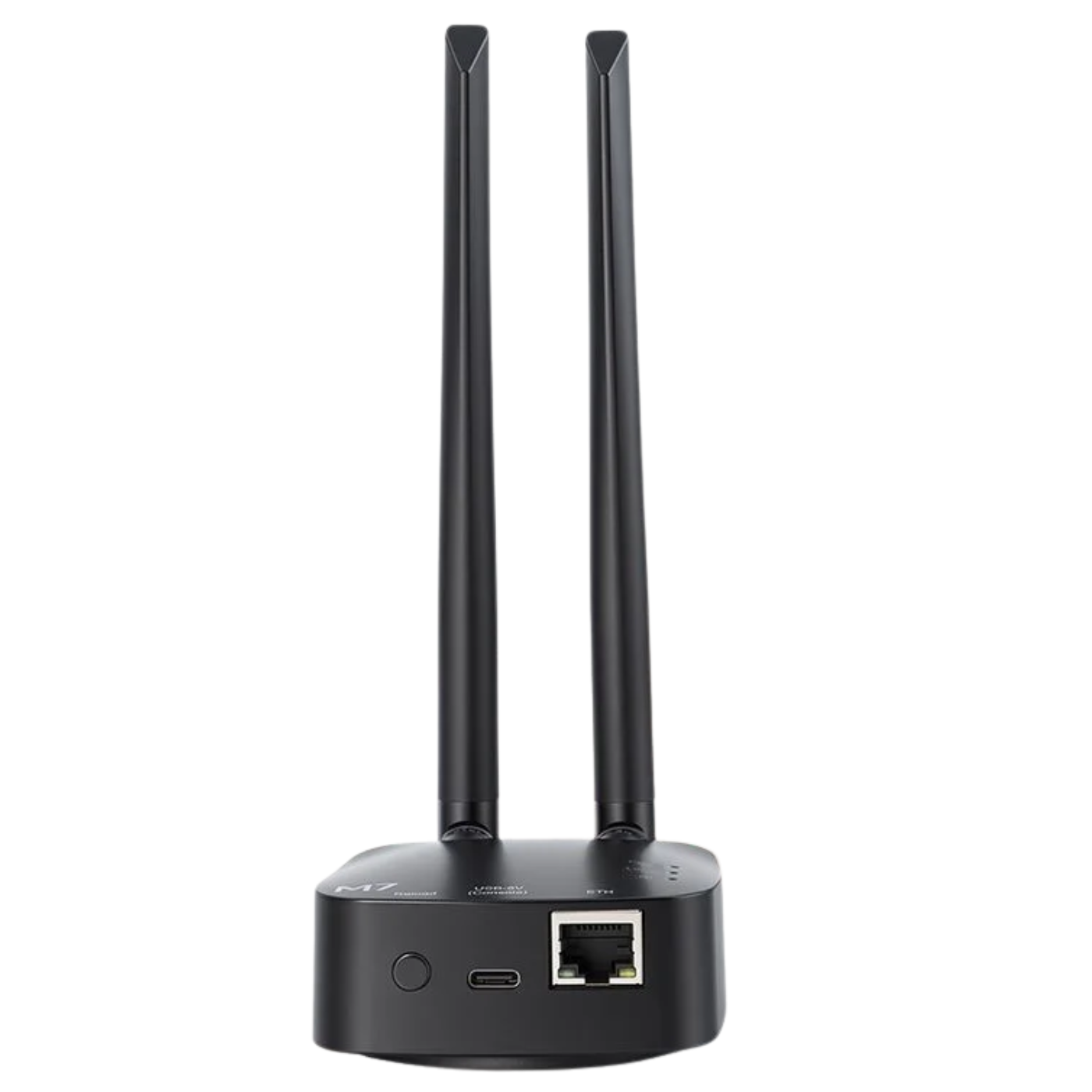

Elecrow ThinkNode M7 Meshtastic Wireless Communication Gateway with ESP32-S3, LR1110 & PoE Support
Elecrow ThinkNode M7 Meshtastic Wireless Communication Gateway with ESP32-S3, LR1110 & PoE Support
Elecrow ThinkNode M7 Meshtastic Wireless Communication Gateway with ESP32-S3, LR1110 & PoE Support
The Elecrow ThinkNode M7 Meshtastic Wireless Communication Gateway is a powerful LoRa gateway designed for reliable long-range wireless communication and IoT networking. Built around the ESP32-S3 with an Xtensa 32-bit LX7 dual-core processor running at up to 240MHz, and paired with the LR1110 LoRa chip, it delivers high-performance processing for Meshtastic, smart IoT, and wireless mesh network applications.
The gateway supports 2.4GHz Wi-Fi, Bluetooth Low Energy 5.0, and LoRa communication, while operating on both US 915MHz and EU 868MHz frequency bands for regional compatibility. It features a USB power/data interface, 100Mbps Ethernet port, and Power over Ethernet (PoE) support for flexible installation.
An external adhesive antenna improves signal coverage, while the pre-installed Meshtastic gateway firmware enables a true plug-and-play experience. Whether you're building a Meshtastic network, deploying an IoT gateway, or creating a LoRa communication system, the Elecrow ThinkNode M7 offers dependable performance, seamless connectivity, and easy deployment.
Features:
- Deeply optimized for the LoRa protocol: The hardware and software are specifically designed for Meshtastic communication protocols and indoor settings, ensuring robust and efficient signal transmission and reception performance.
- Dual-core high-performance CPU: Uses the ESP32-S3 module, which has an Xtensa 32-bit LX7 dual-core processor with a primary frequency of up to 240MHz, giving adequate computational capacity for complicated communication and data processing.
- Various wireless communication capabilities: Integrates 2.4GHz Wi-Fi and Bluetooth Low Energy/Bluetooth 5.0, allowing for flexible device networking and local connections. It can also do wide-area LoRa communication in the US915/EU868 bands with the LR1110 chip.
- Flexible power supply and networking methods: Includes a USB power port and a 100Mbps Ethernet port, supports optional PoE power supply, adapts to various indoor deployment settings, and can connect to the Internet via a wired network.
- Enhanced signal coverage: Uses an external rubber rod antenna to dramatically improve LoRa signal transmission and reception distance, broaden indoor coverage, and support more robust long-distance node connections.
- Basic structure and installation: Because of its basic design and built-in fixed base, it is easy to place on walls or desktops and can be deployed in a variety of indoor locations.
Package Includes:
- 1x ThinkNode M7 for Meshtastic
- 1x LoRa Antenna
- 1x WLAN/BT Antenna
- 1x USB-A to USB-C Data Cable
- 1x Base
- 1x User Manual
Specifications:
| Main Chip | ESP32-S3 |
|---|---|
| Processor | Xtensa 32-bit LX7 dual-core processor |
| CPU Frequency | Up to 240MHz |
| System Memory | 512KB SRAM, 8MB PSRAM |
| Storage | 4MB Flash, 384KB ROM |
| Development Languages | MicroPython, C/C++ |
| Development Environment | ESP-IDF, Arduino IDE |
| Configuration Interface | Meshtastic Official App |
| Maximum Communication Distance | 8–10km |
| Bluetooth | Bluetooth Low Energy (BLE), Bluetooth 5.0 |
| Wi-Fi | IEEE 802.11a/b/g/n, 2.4GHz |
| LoRa Transceiver | LR1110 |
| LoRa Frequency Support | US915MHz / EU868MHz |
| Ethernet Interface | RJ45 WAN/LAN, 10/100Mbps, PoE Supported |
| USB Interface | USB Type-C (Debugging & 5V/1A Power Input) |
| LoRa Antenna Connector | RP-SMA Female Connector (External Antenna) |
| Reset Button | Restart, Configuration & Factory Reset |
| Boot Button | Programming Mode (Internally Reserved) |
| LED Indicators | Power Status, LoRa Signal, Bluetooth Status |
| Power Input | USB 5V/1A or PoE (37V–57V DC, IEEE 802.3af) |
| Material | Plastic |

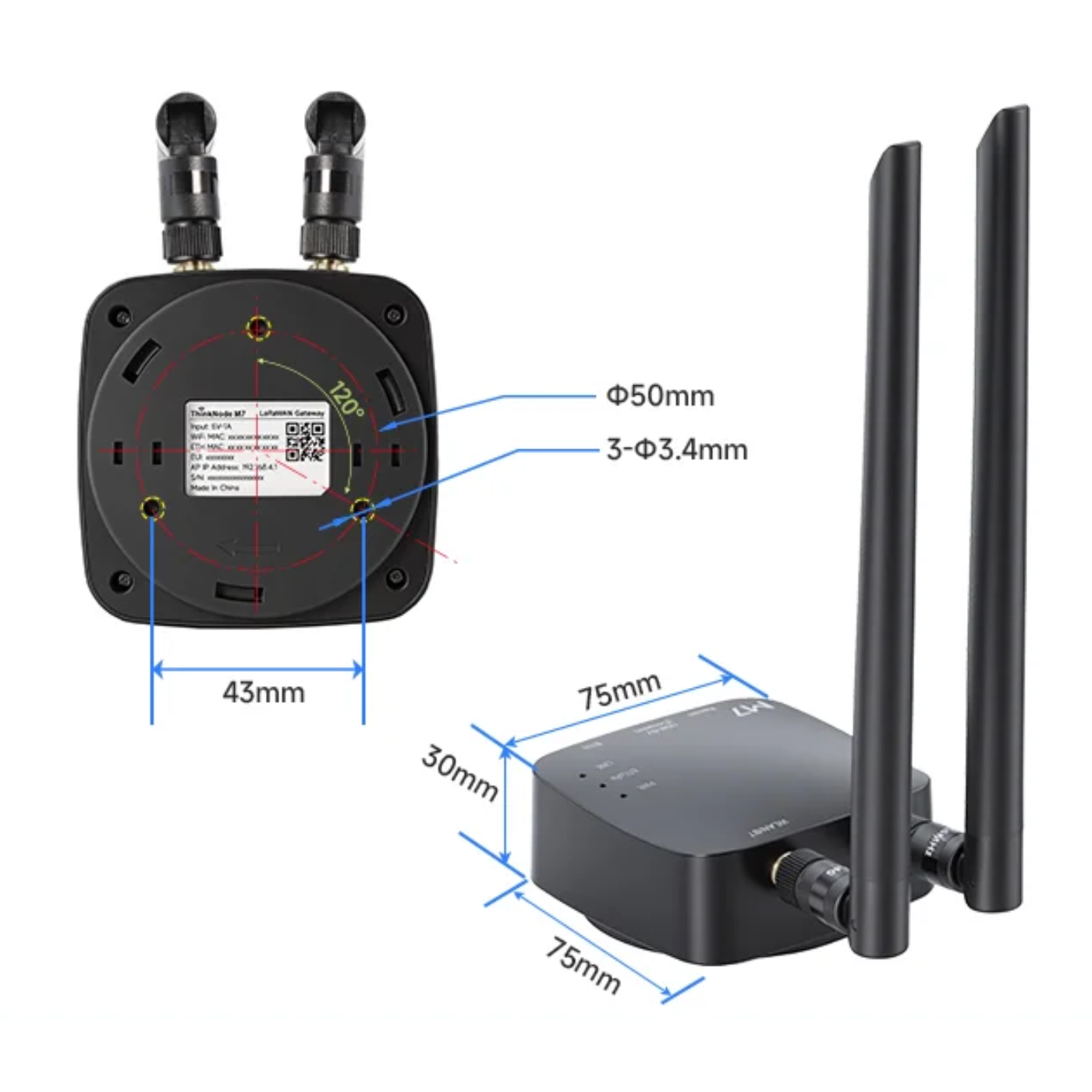

| Installation Methods | Wall Mount, Rear Mount, Desktop |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 80°C |
| Relative Humidity | 10%–95% @ 40°C (Non-condensing) |
| Dimensions | 74 × 74 × 33mm (Without Antenna) |
| Net Weight | 80g |
