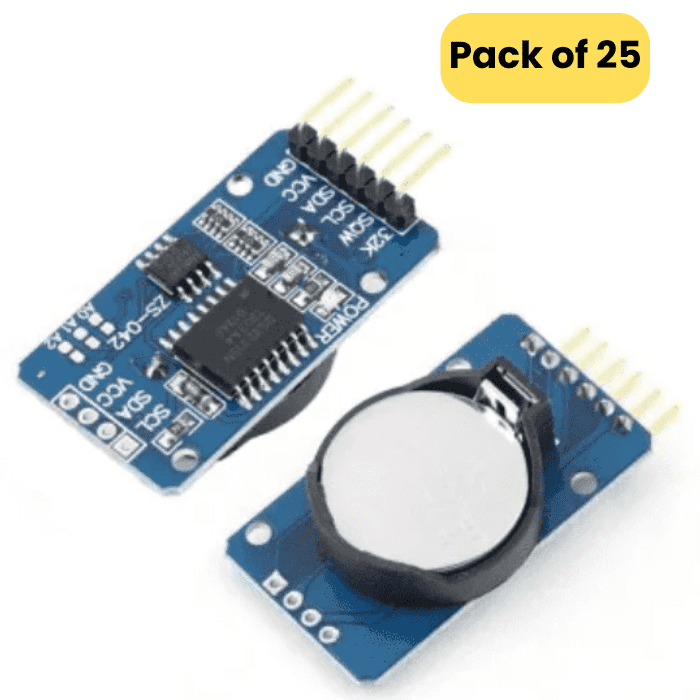

DS3231 Real Time Clock Memory Module with Battery (Pack of 25)

DS3231 Real Time Clock Memory Module with Battery (Pack of 25)

Out of stock

0

Rs. 5,899
Rs. 7,475 Rs. 5899
Sale Sold out 21% off
or ₹ 5649 + alt-pay-logo 250 points
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 20 people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC400 FLAT ₹ 400/- OFF

When you shop for ₹ 10000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • This is DS3231 Real Time Clock Memory Module with Battery (Pack of 25)
  • Operating voltage ranges from 3.3V to 5.5V
  • Consumes only 500nA on battery backup
  • I2C interface (maximum transferrable speed is 400KHz @ 5V supply  voltage)
  • Highly Accurate RTC Completely manages All Timekeeping Functions
  • Low power Operations Extends battery-Backup Run Time
  • Programmable Square-Wave Output Signal
  • Digital temperature sensor with ±3ºC accuracy

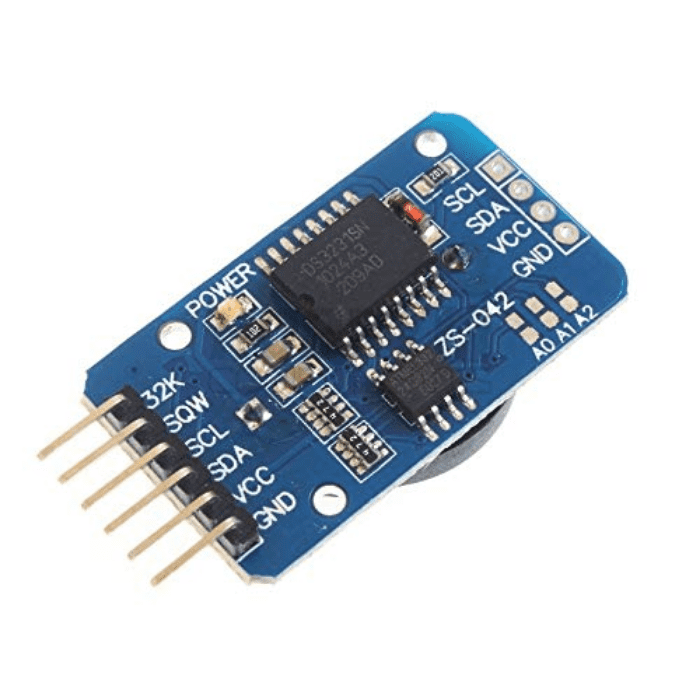

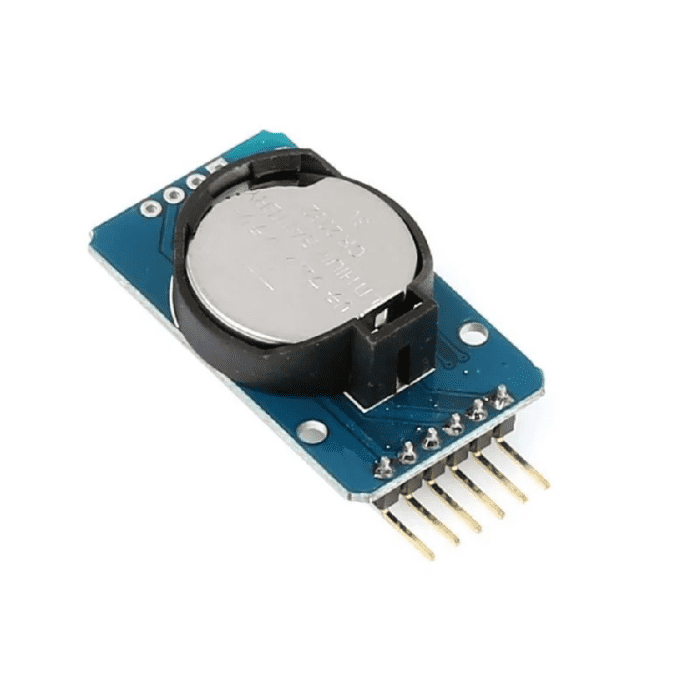

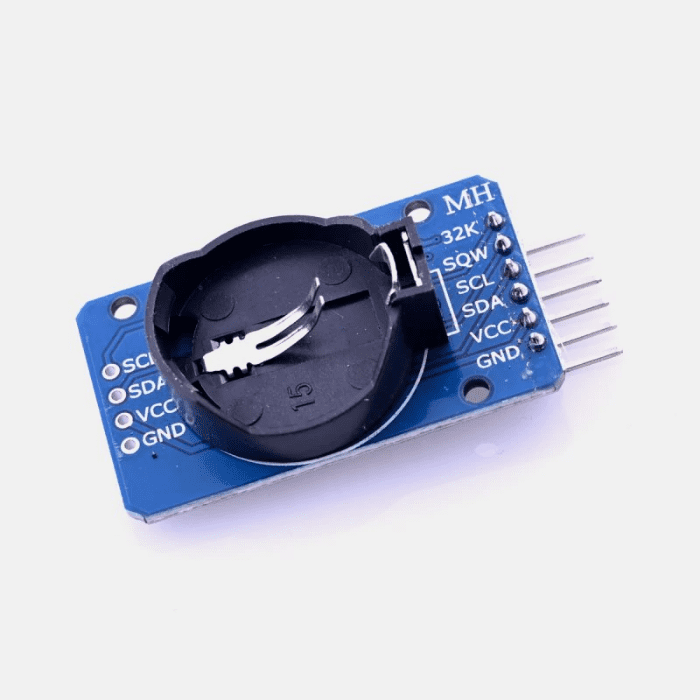

DS3231 Real Time Clock Memory Module with Battery

DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC), with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. Real-time clock generator seconds, minutes, hours, day, date, month and year timing and provide valid until the year 2100 leap year compensation DS3231 available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.

DS3231 RTC  is a Precise Real-Time Clock Module with 32Kbit EEPROM and a built-in 10-bit temperature sensor having a resolution of 0.25C.

The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The ds3231 Arduino is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Applications:

  • Robotics
  • Data Loggers
  • Servers
  • Computer Peripherals
  • GPS Modules
  • Utility power meters

Package Includes:

  • 25 x DS3231 Real Time Clock Memory Module

Specifications:

Operating Voltage (VDC) 2.7 ~ 5.5
Voltage Supply for RTC 2.2 V ~ 5.5 V
Battery Holder 2032 Coin Battery
I2C interface Fast (400kHz) I2C Interface.
Time and Date Format Time: HH: MM: SS (12/24 hr).
Date Format: YY-MM-DD-dd.
Dimensions in mm (LxWxH) 38 x 22 x 14
Weight(gm) 8
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

-43%
DS1307 Real Time Clock Module-Robocraze

DS1307 Real Time Clock Module

7

Rs. 39
Rs. 69 Rs. 39
Incl. GST (No Hidden Charges)
Sale
-37%
DS3231 RTC Module (Real Time Clock)-Robocraze

DS3231 RTC Module (Real Time Clock)

3

Rs. 125
Rs. 199 Rs. 125
Incl. GST (No Hidden Charges)
Sale
-39%
DS3231 Real Time Clock Memory Module with Battery-Robocraze

DS3231 Real Time Clock Memory Module with out Battery

8

Rs. 122
Rs. 199 Rs. 122
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. What is a DS3231 RTC module?

  • The DS3231 RTC Module is a low-cost I2C real-time clock (RTC) with an integrated temperature-compensated crystal oscillator (TCXO) and crystal. The RTC keeps track of seconds, minutes, hours, days, dates, months, and years.

2. Which RTC module is best?

  • The DS3231 is a low-cost, extremely accurate I2C real-time clock (RTC) with a temperature-compensated crystal oscillator (TCXO) and crystal integrated. The DS3231 real-time clock generator provides seconds, minutes, hours, day, date, month, and year timing and is available in commercial and industrial temperature ranges, using a 16-pin 300mil SO package.

3. How do I set the time on my RTC module?

  • Connect your Arduino to your computer, then launch the Arduino IDE and select the SetTime sketch from the File->Examples->DS3231 RTC->SetTime menu. Open the Serial Window and ensure that the baud rate is set to 9600. If everything goes as planned, you should see a success message.

4. How does the DS3231 work?

  • The DS3231 is a real-time clock (RTC) with a temperature compensated crystal oscillator integrated. It consists of a battery that powers the DS3231 when the main power is turned off. As a result, it can continue to function normally. It comes in both industrial and commercial temperature ranges.

5. What is the difference between DS1307 and DS3231?

  • The main difference between the DS3231 and DS1370 is the accuracy of time-keeping:-
    • The DS1307 includes an external 32kHz crystal for timekeeping, the frequency of which is easily affected by external temperature. This usually results in the clock being off by five minutes or so per month.
    • The DS3231 is much more accurate because it has an internal Temperature Compensated Crystal Oscillator (TCXO) that is unaffected by temperature, allowing it to be accurate to a few minutes per year at most.

6. Does RTC need a battery?

  • A real-time clock is similar to a watch in that it runs on a battery and keeps time for you even when the power goes out! You can keep track of long timelines with an RTC even if you reprogram your microcontroller or disconnect it from a USB or power plug.
