DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin - Buy Online in India

DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin

Rs. 34
Rs. 44
Rs. 34
Save Rs. 10
(-23%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 57 left in stock
SKU: TIFSS0127

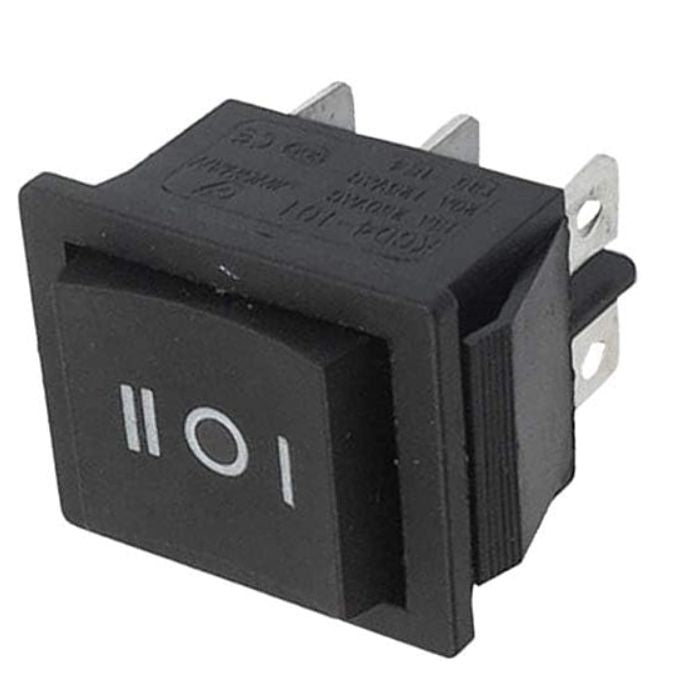

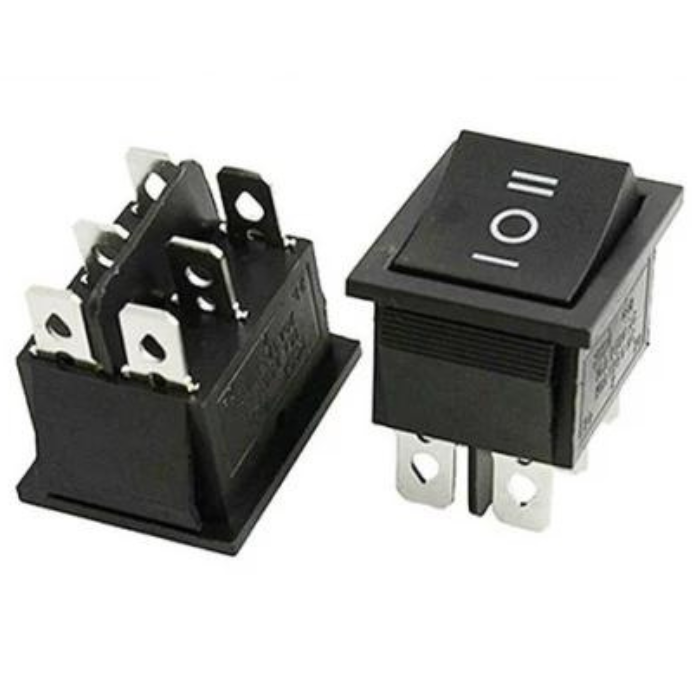

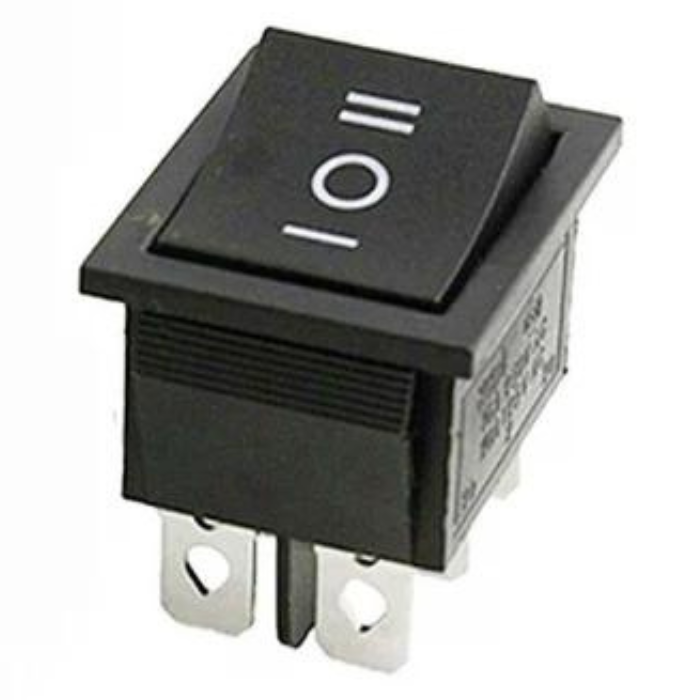

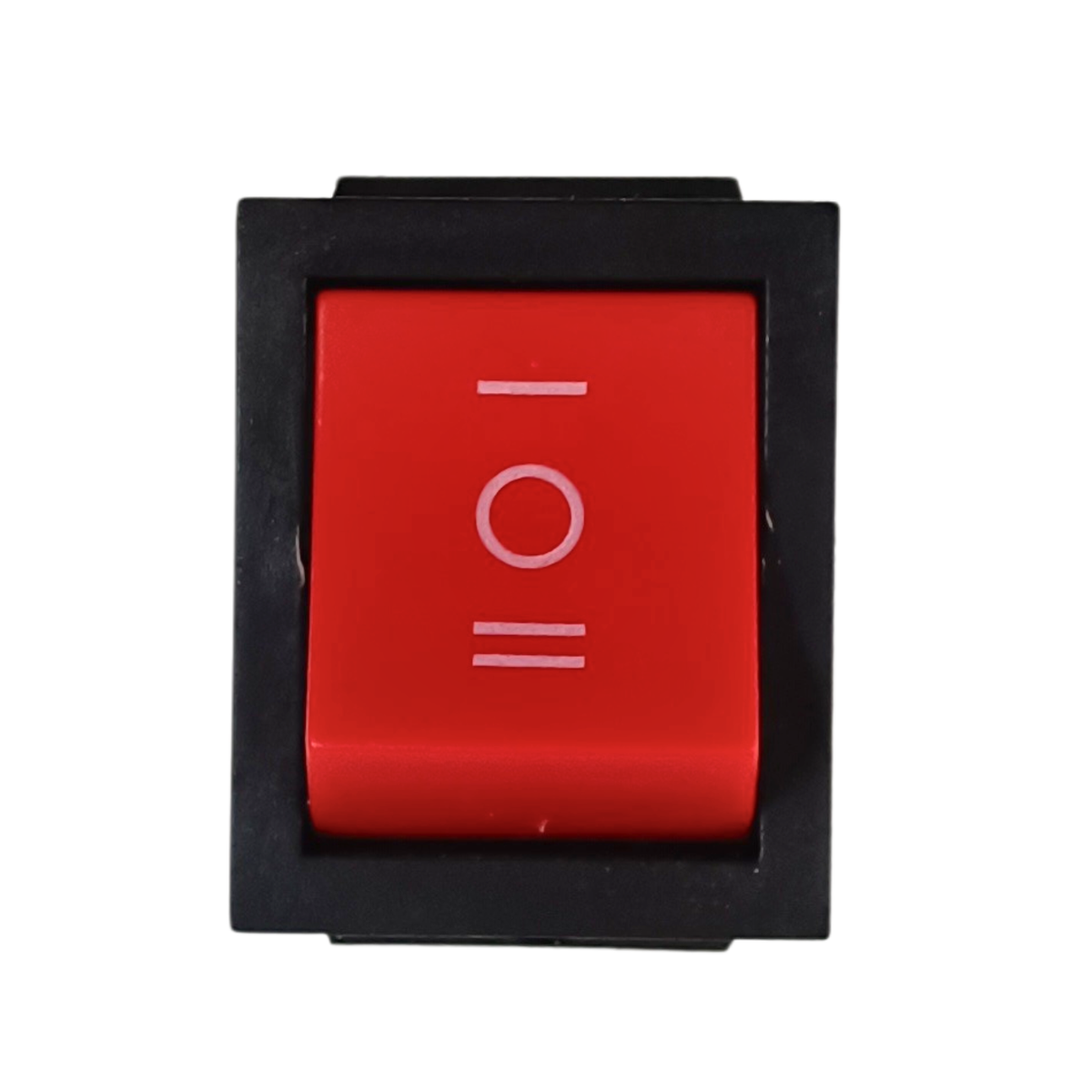

  • Versatile Functionality: DPDT On-Off-On Rocker Switch with 16A rating, perfect for electronic projects.
  • Easy Installation: Tabs secure it onto an enclosure without screws. Clearly marked On and Off positions for user convenience.
  • Durable Build: Made with high-quality plastic and metal, ensuring longevity and reliability.
  • Wide Compatibility: Panel cut-out of 22x20x10mm makes it suitable for various applications.
  • User-Friendly Design: Black color, 25mm length, 21mm width, and 20mm height provide a sleek and compact solution.
FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer Robocraze Academy Limited Time Offer
DPDT ON-OFF-ON Rocker Switch – Heavy-duty switch for AC control - Mini Switch - Electronic Components -Robocraze
DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin
Rs. 44 Rs. 34

DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin

Rs. 44 Rs. 34

DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin

The DPDT On-Off-On Rocker Switch, a reliable solution for your electronic projects. This switch, with a 16A rating, ensures efficient power control. Its lock action and center-off design make it versatile for various applications.

The easy installation, thanks to tabs on the top and bottom, eliminates the need for screws. Clearly marked On and Off positions enhance user convenience during operation. Crafted from high-quality plastic and metal, this rocker switch guarantees durability. The 22x20x10mm panel cut-out allows for wide compatibility with different enclosures.

The sleek black design, with dimensions of 25mm length, 21mm width, and 20mm height, adds a professional touch to your projects.

Features:

  • Max 16A rating for efficient power control
  • DPDT structure with ON-OFF-ON switching mode
  • Easy installation with tabs on top and bottom, no screws needed
  • Sleek black design with dimensions of 25mm length, 21mm width, and 20mm height
  • Versatile functionality suitable for various electronic projects- Rating: Max 16A
  • Structure: DPDT (Double Pole Double Throw)
  • Switching Mode: ON-OFF-ON
  • Material: Plastic and Metal
  • Versatile Functionality: DPDT On-Off-On Rocker Switch with a 16A rating, suitable for electronic projects.
  • Easy Installation: Tabs for secure attachment to an enclosure without screws.
  • Clearly Marked Positions: On and Off positions for user convenience during operation.
  • Durable Build: Made with high-quality plastic and metal for longevity and reliability.
  • Wide Compatibility: 22x20x10mm panel cut-out, making it suitable for various applications.
  • Sleek Design: Black color and compact dimensions provide a professional touch to projects.

Applications:

  • The DPDT (Double Pole Double Throw) on-off-on rocker switch with 6 pins is commonly used in various applications that require robustness and water resistance
  • It has a high switching current capacity, making it ideal for applications like water dispensers, extension sockets, electric vehicles, household electrical appliances, and automotive accessories
  • It has a durable construction with a blend of plastic and metal, ensuring reliability, performance, and longevity even under repeated use
  • The switch has a long mechanical life cycles, making it a reliable choice for long-term use
  • This rocker switch can be easily installed in different devices to enhance their performance and functionality
  • Some common applications of the DPDT on-off-on rocker switch include water dispensers, extension sockets, boats, cars, and other automotive applications.

Package Includes:

  • 1 x DPDT on-off-on Rocker Switch (16A) 250V AC - 6pin

Specifications:

Rating Max 16A
Structure DPDT
Switching Mode ON-OFF-ON
Panel Cut-Out (mm) 22 x 20 x 10
Material Plastic and Metal
Colour Black
Length (mm) 25
Width (mm) 21
Height (mm) 20
Weight (g) 8

1. How does a DPDT switch work?

A DPDT (Double Pole Double Throw) switch is a versatile component that allows for the control of two separate circuits with just one flip. A typical DPDT switch has six terminals: 2 input and 4 output connections. The circuit diagram shows how these contacts are connected internally, allowing for various modes of operation such as ON-OFF or momentary switches depending on the need at hand. With its robust design and highly reliable performance, a DPDT switch serves as an optimal choice in many applications where precision and efficiency hold paramount importance.

2. Which is on and off on a rocker switch?

The rocker switch is a popular design that features clearly marked on and off symbols. In order to comply with the IEC 60417 standard, the ON symbol should be represented by a straight line (I) while OFF is indicated by a circle (O). This universal convention helps ensure easy operation for users across different countries and industries. The simplicity of this style also allows for quick recognition and usage in various applications. Overall, choosing a rocker switch with these standardized symbols not only aligns with global standards but also promotes user-friendly functionality in any setting.

3. How does a DPDT switch work?

A DPDT (Double-Pole Double-Throw) switch is an essential component of many electronic devices, widely used in the field of automation and control. This versatile switch consists of two poles that can be connected to two different circuits simultaneously, making it capable of switching between them with a single flip or toggle action. The double-throw feature allows for quick and seamless transfer between these circuits without affecting their electric connection. Each pole houses two terminals where the incoming current can be routed through either one depending on its position - allowing for both series and parallel connections. With its durable construction and efficient functionality, a DPDT switch offers reliable performance in various applications such as motor controls, power supplies, lighting systems, etc., thereby making it an indispensable tool for engineers across industries.

4. How is a DPDT switch wired?

A DPDT (double pole double throw) switch is a type of electrical switch that has two inputs and four outputs. It allows you to control the flow of electricity from one source to either of two output sources, providing versatility in an electric circuit. The wiring process for this type of switch can be complex but straightforward when approached with care and attention. To wire a DPDT switch, each input should be connected to its respective terminal on the bottom row while connecting both output terminals together in the top row. This setup creates separate circuits for each input with the ability to select between them using the central lever on the device. With proper installation and usage, a DPDT switch offers multiple functions within electronic systems such as motors or lighting fixtures, making it an essential component for any professional electrician's toolkit.

5. What is the full form of DPDT?

DPDT stands for Double Pole Double Throw, which is a type of switch used to control two circuits at the same time. This versatile and highly functional switch is commonly found in various industrial applications as well as household appliances. With DPDT switches, users have the option to either connect or disconnect both poles simultaneously, making it ideal for controlling multiple loads or reversing motor direction. Its compact design also makes it easy to install and use in any setting.
