This product is of the best quality. It shows the correct voltages and amps. You can see it clearly even in the daytime. It's a good product
Robocraze
Digital Voltmeter Ammeter DC 100V 100A Dual Led Voltage Monitor Panel (Without Shunt)
Digital Voltmeter Ammeter DC 100V 100A Dual Led Voltage Monitor Panel (Without Shunt)
Regular price
Rs. 141
Regular price
Rs. 249
Sale price
Rs. 141
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 3 hours and 51 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The operating voltage is 5V DC
- The current consumption is <60mA
- The testing Voltage is 0-100V
- The testing Current is 1-100A
- The display mode is double three-digit 0.28" LED digital tube
- The max operating temperature is -10 to 60°c
- The operating Humidity is 10 to 80% (non-condensing)
- Auto ranging 0.01V 0.01A precision ±0.1% voltage tolerance ±1% current tolerance Refresh rate: 500ms
Note : Shunt resistor is not included with this product
Digital Voltmeter Ammeter DC 100V 100A Dual Led Voltage Monitor Panel (Without Shunt)

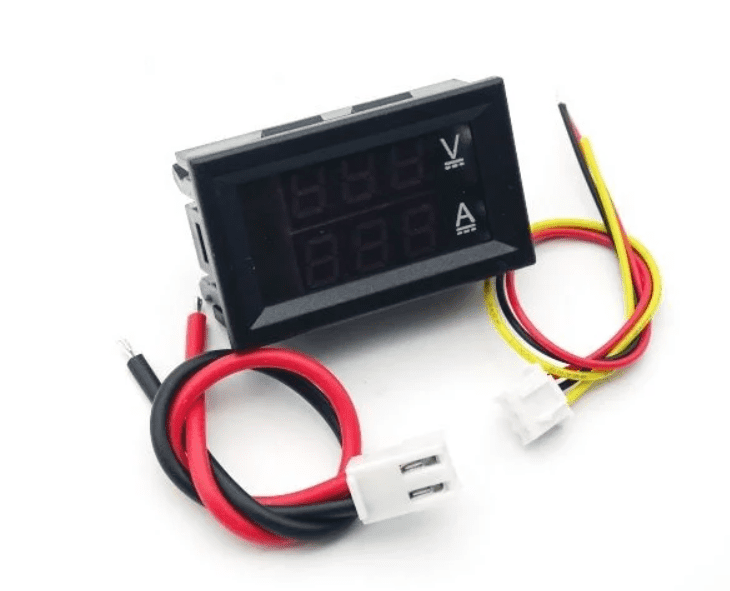

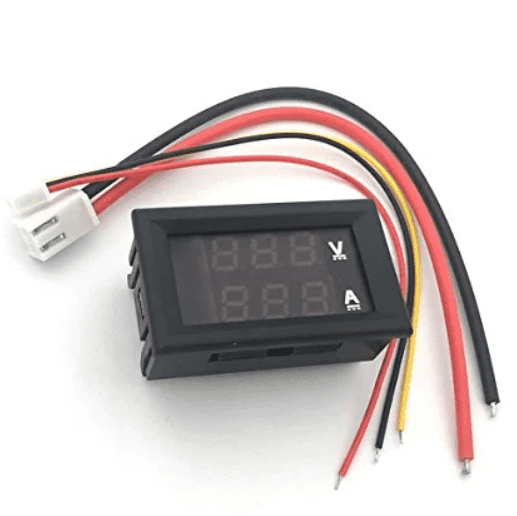

This is Red-Blue LED Digital Dual DC 100V 100A Ammeter Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution. One thing to note is, this meter has 2 wiring harnesses.
One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. Maximum Input Voltage should not exceed 30V otherwise there is a danger of burning
Note : Shunt resistor is not included with this product
Features:
- Runs on 5V power supply.

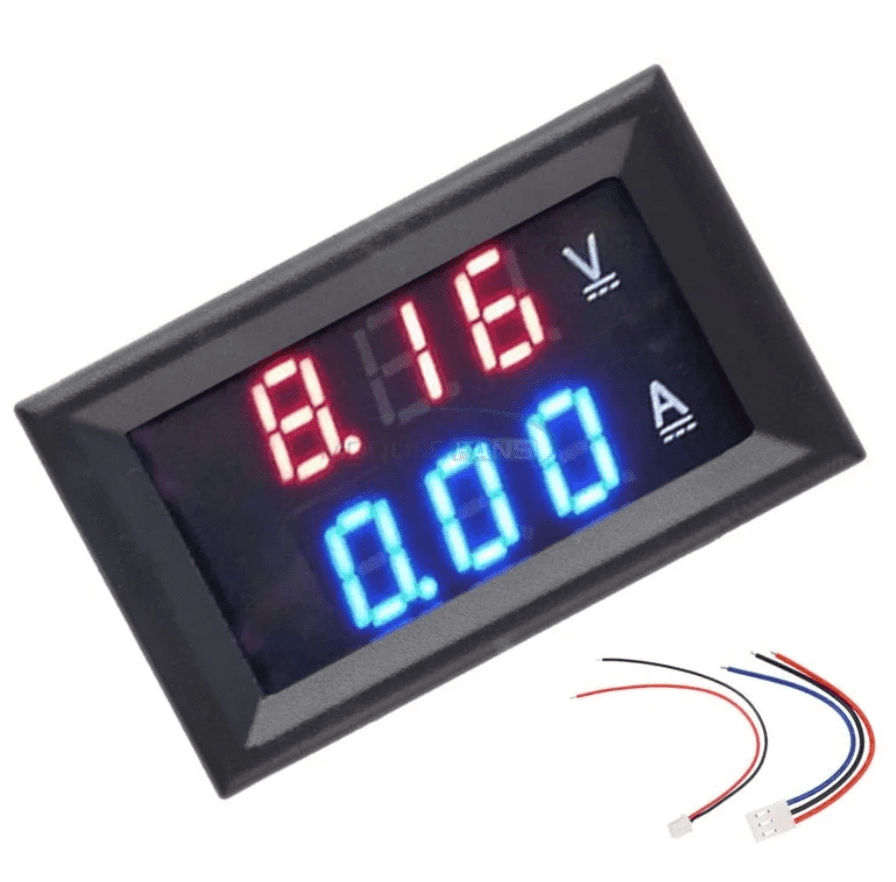

- Shows voltage in red and current in blue.
- Requires less than or equal to 60mA of current.
- Can measure from 0V to 100V DC.
- Capable of measuring current from 0A to 100A.
- Provides accuracy of ±1% (plus or minus 1 digit).
- Operates effectively in temperatures ranging from -10°C to 65°C.
- Updates readings every 500 milliseconds for real-time monitoring.

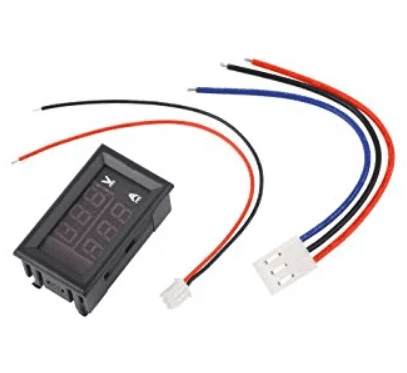

Package Includes:
- 1 x Digital Voltmeter & Ammeter Module
- 1 x Two wire-thin connector
- 1 x Three wire-thin connector
Specifications:
|
Operating Voltage |
5V |
|
Input Current |
<= 60mA |
|
Display Colour |
Red (Voltage), Blue (Current) |
|
Measuring Voltage Range |
0V to 100V DC |
|
Measuring Current Range |
0A to 100A |
|
Measurement Accuracy |
1%( ‚± 1 digit) |
|
Minimum Voltage Resolution |
0.1V |
|
Minimum Current Resolution |
0.01A |
|
Working Temperature |
-10 ° C ~ 65 ° C |
|
Dimensions |
50x30x20mm |
|

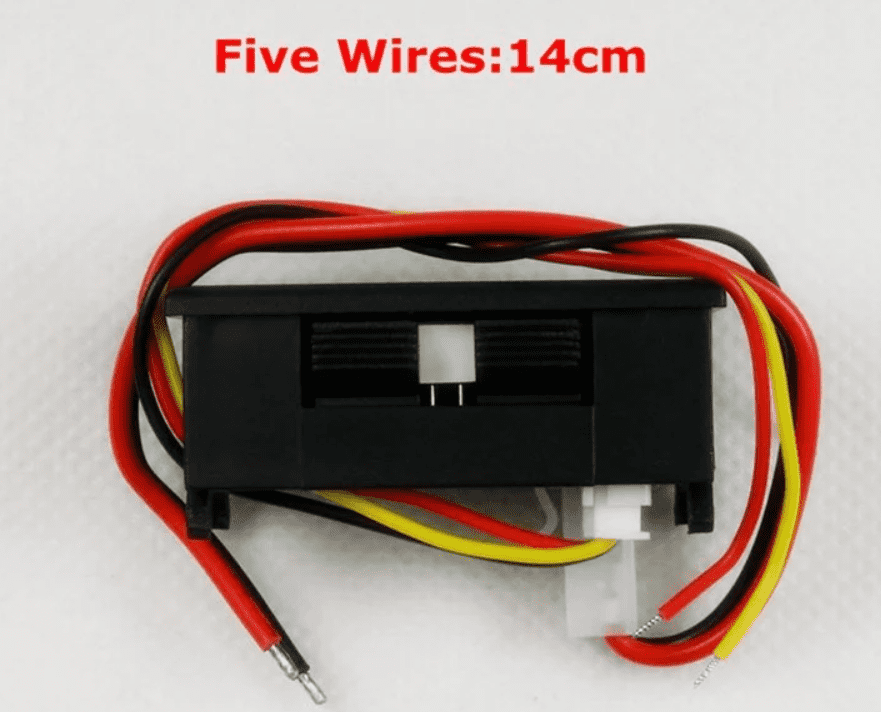

Working temperature: Cable length |
14cm |
|
Refresh rate |
500mS / times |
|
Weight(gm) |
14 |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Digital Voltmeter (0-100V) and Ammeter (10A) Dual LED Voltage Current Measurement Module
Regular price
Rs. 118
Regular price
Rs. 199
Sale price
Rs. 118
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Original Mastech MS830L Digital Pocket Multimeter with Probes
Regular price
Rs. 726
Regular price
Rs. 999
Sale price
Rs. 726
Unit price
per
Incl. GST (No Hidden Charges)
Sale
MetroQ MTQ 666 Digital AC Clamp Meter
Regular price
Rs. 739
Regular price
Rs. 1,099
Sale price
Rs. 739
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1.How do digital ammeters and voltmeters work?
- A shunt resistor is used in digital ammeter designs to produce a calibrated voltage proportional to the current flowing. This voltage is then measured by a digital voltmeter using an analog-to-digital converter (ADC); the digital display is calibrated to display the current flowing through the shunt.
2.What is the working Principle of ammeter?
- The magnetic effect of current drives the ammeter's principle, which states that resistance and inductive reactance must be low. An ammeter is made up of a wire coil and a fixed permanent magnet. As a result, an ammeter cannot be connected in a parallel line.
3.Is ammeter DC or AC?
- The ammeter, a device used to measure direct (DC) or alternating (AC) electric current in amperes. An ammeter can measure a wide range of current values because at high values only a small portion of the current is directed through the metre mechanism; the majority is carried by a shunt connected in parallel with the metre.
