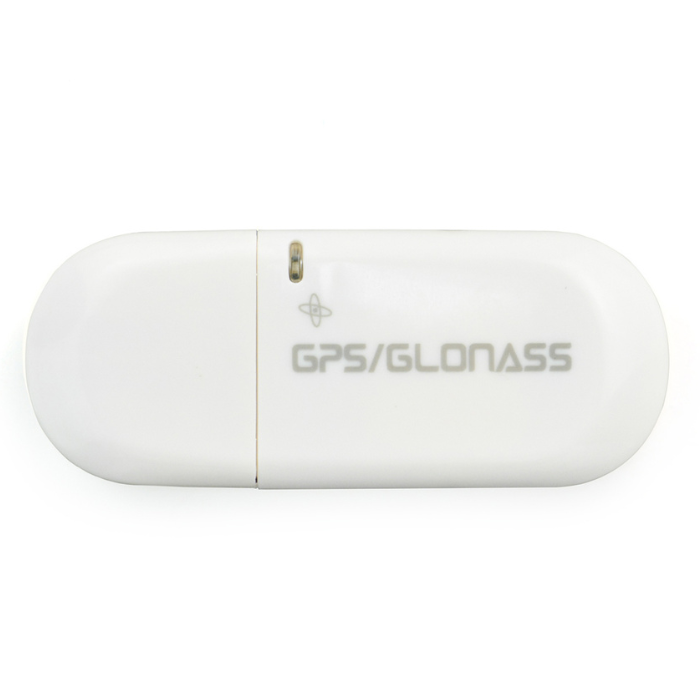

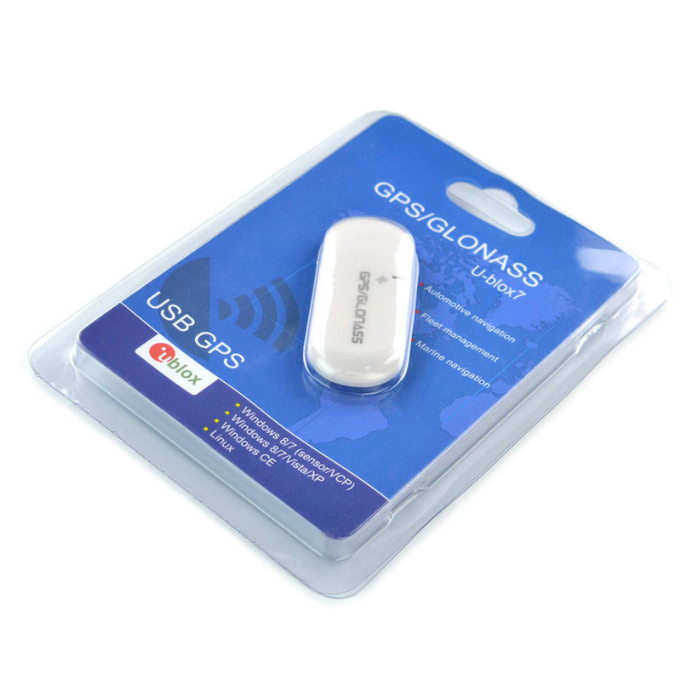

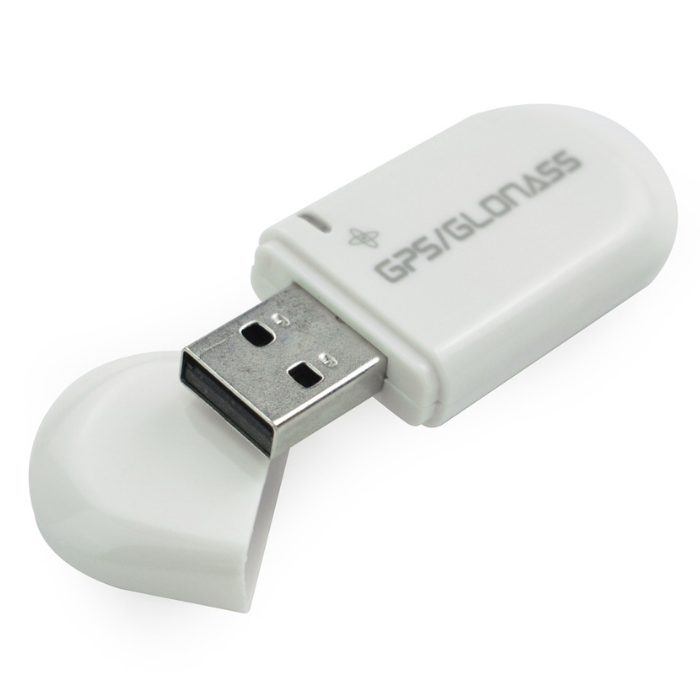

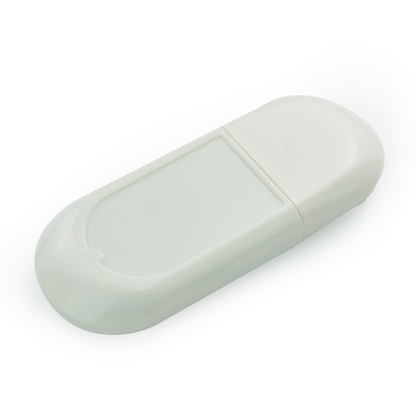

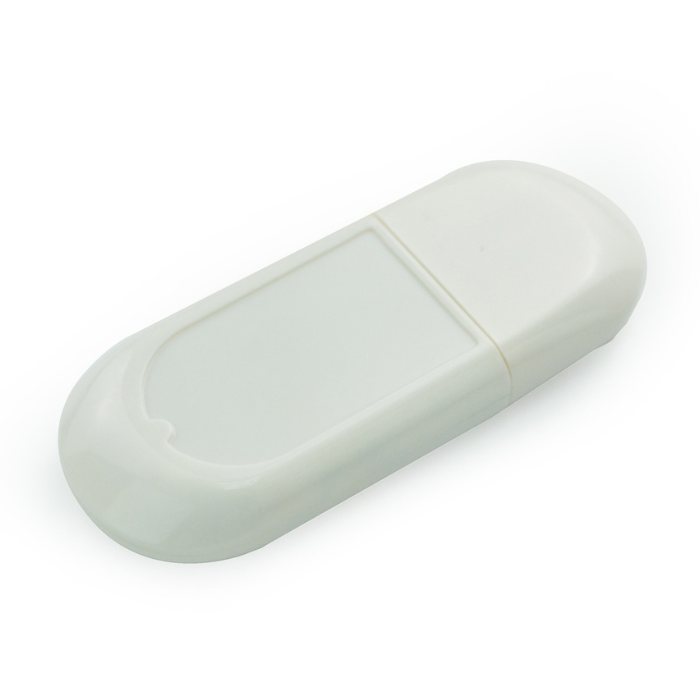

DFRobot USB GPS Receiver Compatible with Raspberry Pi/ LattePanda/ Jetson Nano
DFRobot USB GPS Receiver Compatible with Raspberry Pi/ LattePanda/ Jetson Nano
Low stock: 3 left
Couldn't load pickup availability
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Easily add location tracking to your projects with this USB GPS Receiver TEL0137[SR1, SR6].
- Works perfectly with Raspberry Pi GPS Module, LattePanda, and Jetson Nano boards[SR1, SR2, SR4, SR5, SR6].
- Get quick and High Accuracy USB GPS positioning, better than many older GPS units[SR3, SR4, SR6].
- Just plug it into a USB port, no complex setup needed for your LattePanda Jetson Nano GPS[SR2, SR6].
- Small and light, with a built-in antenna, so it's easy to carry and use[SR3, SR4, SR6].
- Has a small battery inside to remember satellite data for faster starts[SR3, SR5, SR6].
- Great for car navigation, tracking devices, or outdoor location projects[SR2, SR3, SR5, SR6].
DFRobot USB GPS Receiver Compatible with Raspberry Pi/ LattePanda/ Jetson Nano
This handy USB GPS Receiver TEL0137 makes it super simple to find out your exact location for any electronics project. It's designed to give you much more accurate and faster position information than older GPS units, thanks to its high-precision Ublox UBX-G7020-KT chip[SR3, SR4, SR6, SR7].
Whether you're building a robot navigator or a location tracker, this compact and reliable module is a great choice for both student projects and more serious uses[SR3, SR4, SR6].
Setting up this Raspberry Pi GPS Module is very easy – just plug it into a USB port on your Raspberry Pi, LattePanda, or Jetson Nano[SR2, SR5, SR6].
The LattePanda Jetson Nano GPS has its antenna built-in and an internal battery that remembers satellite data, so it starts up much quicker next time[SR3, SR4, SR5, SR6]. Its small size means you can easily add High Accuracy USB GPS to almost any device[SR3, SR4, SR6].
Dimensions
Features
- GPS Chip: Ublox UBX-G7020-KT for reliable performance[SR3, SR7].
- Compatibility: Works with Raspberry Pi, LattePanda, Jetson Nano via USB[SR2, SR5, SR6].
- High precision positioning, <2.5m horizontal accuracy[SR3, SR7].
- Integrated high-sensitivity receiving antenna built-in[SR3, SR4, SR6].
- Tracks up to 56 satellite channels for strong signal[SR3, SR5, SR7].
- Internal battery helps store satellite data for faster re-acquisition[SR3, SR5, SR6].
Package Includes
1 x DFRobot USB GPS Receiver
Specifications
| Specifications | |
|---|---|
| Chip | UBX-G7020-KT |
| Frequency | L1: 1575.42MHz, L2: 1561.10MHz, L3: 1602.00MHz |
| Baud Rate | 4800, 9600, 19200, 38400, 57600, 115200bps |
| Receiving Channel | 56CH |
| Sensitivity | Tracking: -162dBm; Acquisition: -160dBm; Cold Start: -148dBm |
| Cold Start | 29s average |
| Warm Start | 3s average |
| Hot Start | 1s average |
| Accuracy | Horizontal Position: <2.5m, SBAS: <2.0m Timing Accuracy: 30ns |
| Update Rate | 1Hz |
| Outline Dimension | 60×24×9mm |
| Weight | 50g |
| Operating Temperature | -40℃~85℃ |
| Storage Temperature | -40℃~85℃ |
