- Ensures efficient signal transmission with minimal interference due to low insertion loss (≤0.3dB) and high return loss (≥50dB).
- Built to withstand over 1000 plug and unplug cycles, providing long-lasting performance.
- Features SC-SC connectors and ceramic ferrules for excellent durability and stable connections.
- Supports up to 100N of tensile strength, offering robust performance in demanding environments.
- Suitable for both 1310nm and 1550nm wavelengths, compatible with various optical communication systems.
- Operates in temperatures ranging from -40℃ to +80℃, ensuring reliability in different weather conditions.
- Can be easily installed in tight spaces with a bending radius of just 30mm.
- Meets carrier-grade network standards, ensuring high reliability and performance in critical applications.
DFRobot 3m SC-SC Single Mode Duplex Fiber Optic Jumper Cable

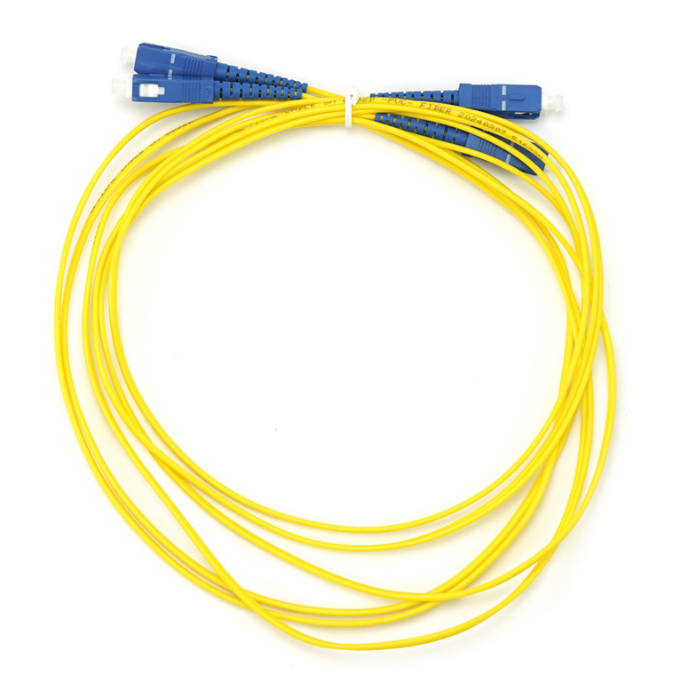

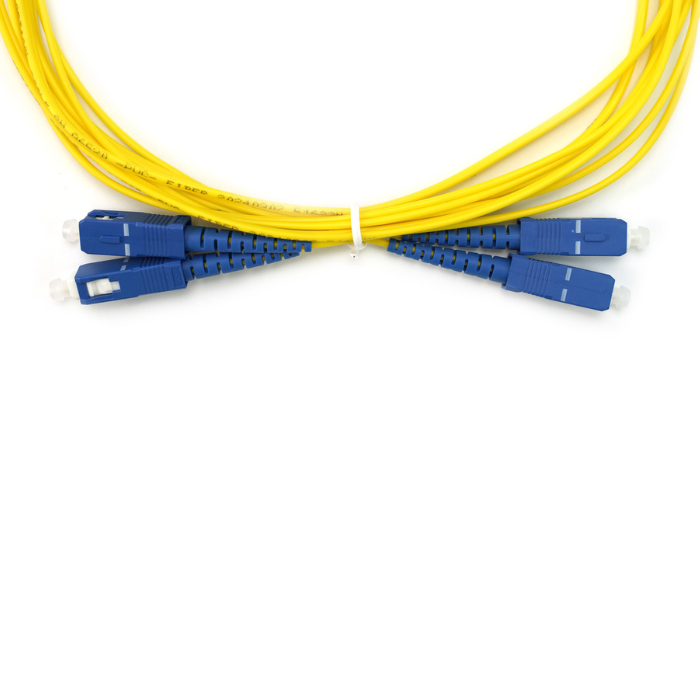

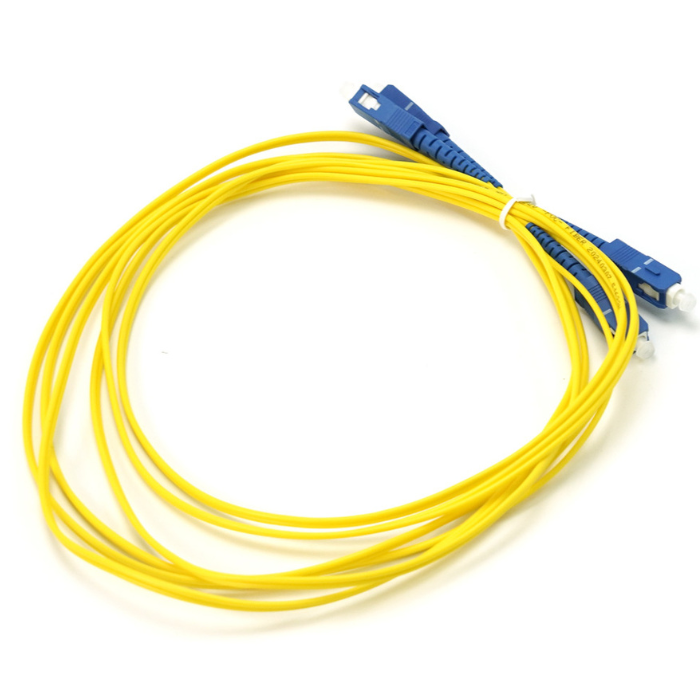

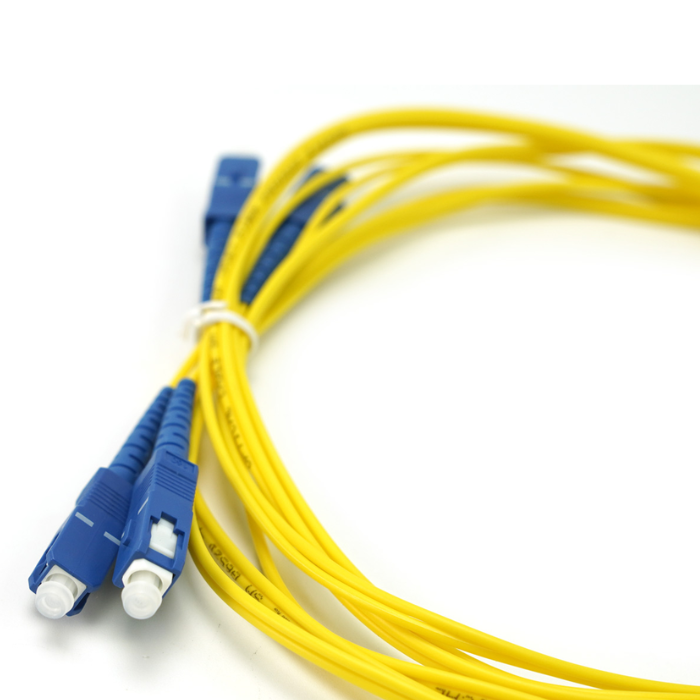

The DFRobot 3m SC-SC Single Mode Duplex Fiber Optic Jumper Cable is designed for high-performance and long-distance data transmission. This 3mm diameter, 3-meter cable features a dual-core single-mode fiber, ensuring efficient propagation of light over long distances.
Equipped with ceramic ferrule SC-type connectors and a protective shell, it offers low insertion loss, excellent repeatability, and high interchangeability. The cable also boasts a large return loss, tensile resistance, and outstanding durability, making it ideal for reliable and consistent performance in demanding environments.
With its strong pull tension resistance, this fiber optic jumper is perfect for use in optical fiber communication systems, local area networks (LANs), fiber access networks, and other data transmission applications.
Features
- Reduces signal degradation for efficient data transmission.
- Ensures reliable performance with consistent signal quality.
- Allows easy swapping between devices without loss in performance.
- Minimizes signal reflections, improving system stability.
- Withstands mechanical stress for long-lasting durability.
- Designed for high-efficiency data transmission in demanding environments.
Applications
- Optical fiber communication systems
- Fiber optic access networks
- High-speed fiber data transmission
- Local area networks (LANs) and other related applications
Package Includes
1 x DFRobot 3m SC-SC Single Mode Duplex Fiber Optic Jumper Cable
Specifications
| Specification | Details |
|---|---|
| Fiber Type | Single-mode dual-core 9/125 (G652D) |
| Connector | SC-SC (Square) |
| Wire Diameter | 3.0mm (0.12 inch) |
| Length | 3m |
| Ferrule | Ceramic |
| Wavelength | 1310nm–1550nm |
| Interchangeability | ≤0.2dB |
| Shell Material | PBT |
| Insertion Loss | ≤0.3dB |
| Return Loss | ≥50dB |
| Times of Plugging and Unplugging | > 1000 times |
| Bending Radius | 30mm |
| Tensile Strength | 100N |
| Connector Pull Force | 10-20N |
| Working Temperature | -40℃~+80℃ |
| Industry Standard | Carrier Grade |
