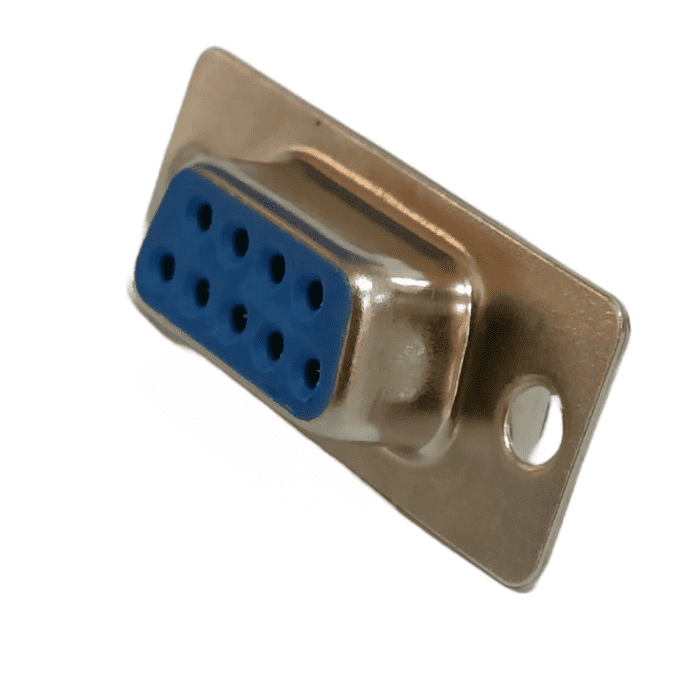

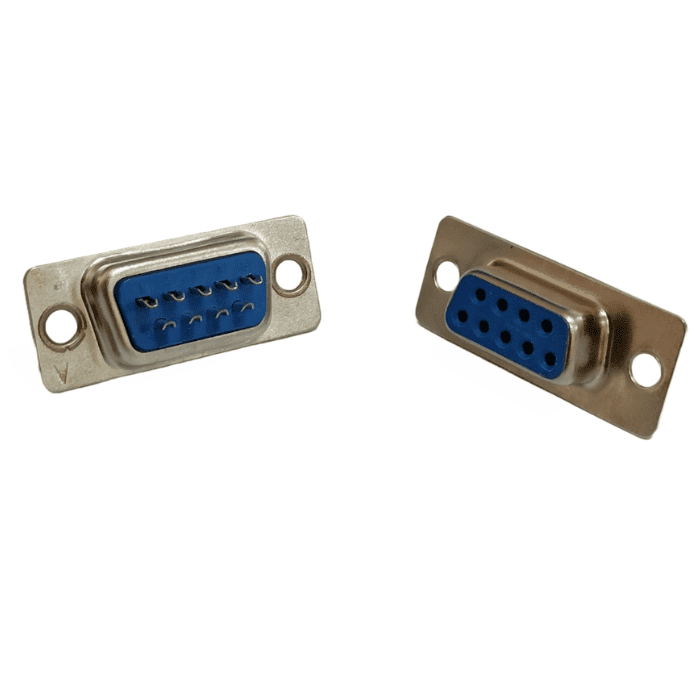

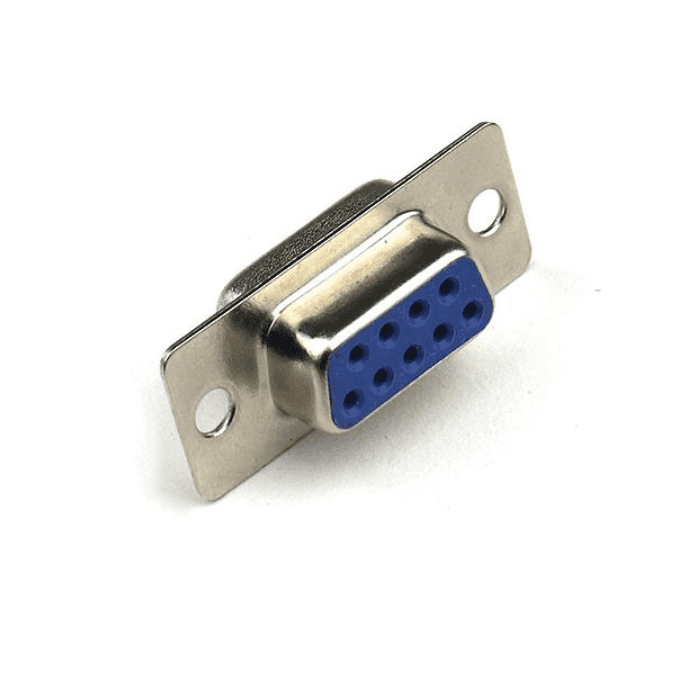

DB9 Female Straight Connector
The most popular kind of electrical connector is DB9 Female straight Connector. The D-sub minuscule (D-sub) connector plug and socket family includes the DB 9 connector, which is used with computers and other communication equipment. A five-pin row sits above a four-pin row in the arrangement of DB-9 pins, which are organized in rows of two.
The EIA/TIA 232 serial interface standard established the purpose of each of the nine pins as a standard so that different manufacturers may incorporate them into their products. DB9 connections are made to work with this standard. Keyboards, mouse, joysticks, and other serial peripheral devices were frequently connected using these connectors. For data communication, they are also utilized in DB9 cable assemblies.
Today, more advanced interfaces like USB, PS/2, Firewire, and others have mostly taken the place of the DB9. However, the DB9 interface is still widely used by many vintage devices for serial communication.
Applications:
- Network ports.
- Computer video output.
- Game controller ports.
- Linear and rotary encoders in industries.
Package includes:
- 1 x DB9 Female Straight Connector
Specifications:
| Connector Type | DB-9 |
| Connector | Female |
| No. of Pins | 9 |
| Voltage Rating (V) |
250V AC |
| Current Rating (A) | 5 |
| Insulation Resistance (MΩ) | 1000 |
| Contact Resistance | 20mΩ |
| Operating Temperature Range (°C) | -55 to 125 |
| Material | Metal and plastic |
| Dimensions | 30 x 13 x 15 mm |
| Weight | 5g |
1. What is a DB9 female connector?
- One of the D-Subminiature or D-Sub types of connections is referred to as a "DB9" in common parlance. Of all the D-Subminiature connectors, DB9 has the smallest "footprint" and may accommodate 9 pins (for the male connector) or 9 holes (for the female connector).
2. What is a DB9 connector used for?
- Keyboards, mouse, joysticks, and other serial peripheral devices were frequently connected to computers using DB9 connectors. For data communication, they are also utilised on DB9 cable assemblies. Modern interfaces like USB, PS/2, Firewire, and others have largely taken the place of the DB9 in today's world.
3. What is a female connector used for?
- A female connector is a type of connector used for data, physical, or electrical connections. In order to make a secure connection, a male connector can firmly insert its exposed plug-type conductor into one or more holes on a female connector. Female connections can be identified by their outward appearance.
