Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino - Buy Online in India

Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino

Rs 1,745/-
- 13%
Rs 1,745/-
Rs 1,999/-
Save Rs 254/-
🪙
RC REWARDS Earn 17 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 21 left in stock

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFC00340
  • High-current 10A DC motor driver shield for Arduino and Maker boards.
  • Supports 7V–30V motors with smooth PWM speed control.
  • Fully solid-state NMOS H-Bridge ensures fast and efficient operation.
  • Regenerative braking for safe motor handling.
  • Compatible with Arduino UNO, Mega, Maker UNO, CT-UNO & more.
  • Stackable design with selectable PWM and DIR pins.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino -Robocraze
Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino
Rs 1,999/- Rs 1,745/-
Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino -Robocraze
Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino -Robocraze
Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino -Robocraze

Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino

Rs 1,999/- Rs 1,745/-
Description

Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino

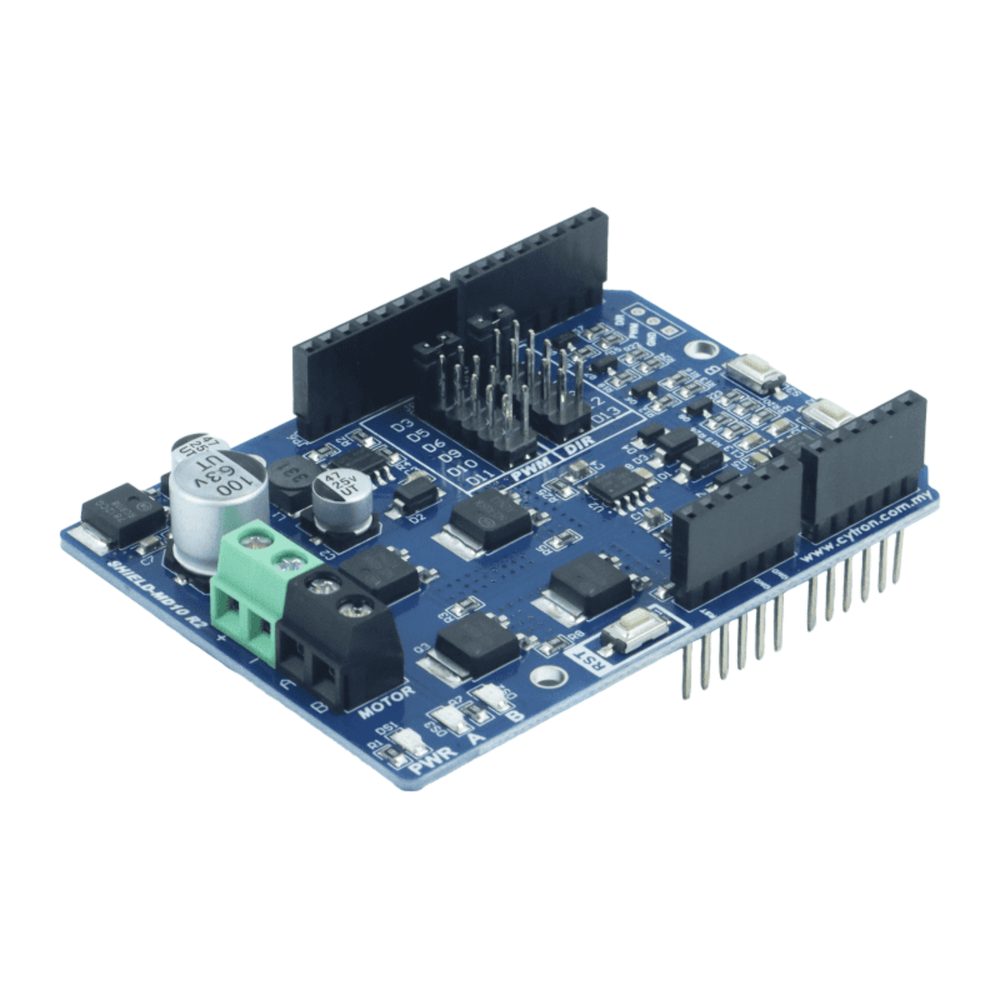

The Cytron SHIELD-MD10 is a high-performance 10A DC motor driver shield designed for Arduino and compatible development boards. Built specifically for brushed DC motors, it supports 7V–30V motor voltage and delivers up to 10A continuous current, making it ideal for robotics, automation, RC systems, DIY machines, and educational electronics.

With solid-state MOSFETs and a fully NMOS H-Bridge design, the Cytron SHIELD-MD10 ensures efficient, fast, and reliable motor control without the need for a heatsink, helping creators achieve accurate speed and direction control with minimal wiring.

Optimized for maximum compatibility, the shield stacks directly onto popular boards like Arduino UNO R3, Arduino Mega 2560, Maker UNO, Maker UNO Plus, Arduino Leonardo, CT-UNO, and CT-ARM. Featuring selectable digital pins for PWM and DIR, stackable headers, and regenerative braking, the Cytron SHIELD-MD10 offers unmatched flexibility for robotics and mechatronics projects.

Whether you're building a DIY robot, conveyor system, or motorized prototype, this durable and high-current driver shield delivers smooth performance and long-lasting reliability.

Features:

  • Bi-directional control for one brushed DC motor with smooth speed and direction adjustment.
  • Supports motor voltage from 7V–25V (Rev 1.0) and 7V–30V (Rev 2.0).
  • Delivers 10A continuous and 15A peak current for high-torque applications.
  • Uses fully solid-state components with NMOS H-Bridge for high efficiency.
  • No heatsink required thanks to low-loss MOSFET design.
  • Supports both 3.3V and 5V logic inputs, making it compatible with multiple controllers.
  • Regenerative braking for safe and controlled stopping.
  • Stackable pin headers allow adding more Arduino shields.

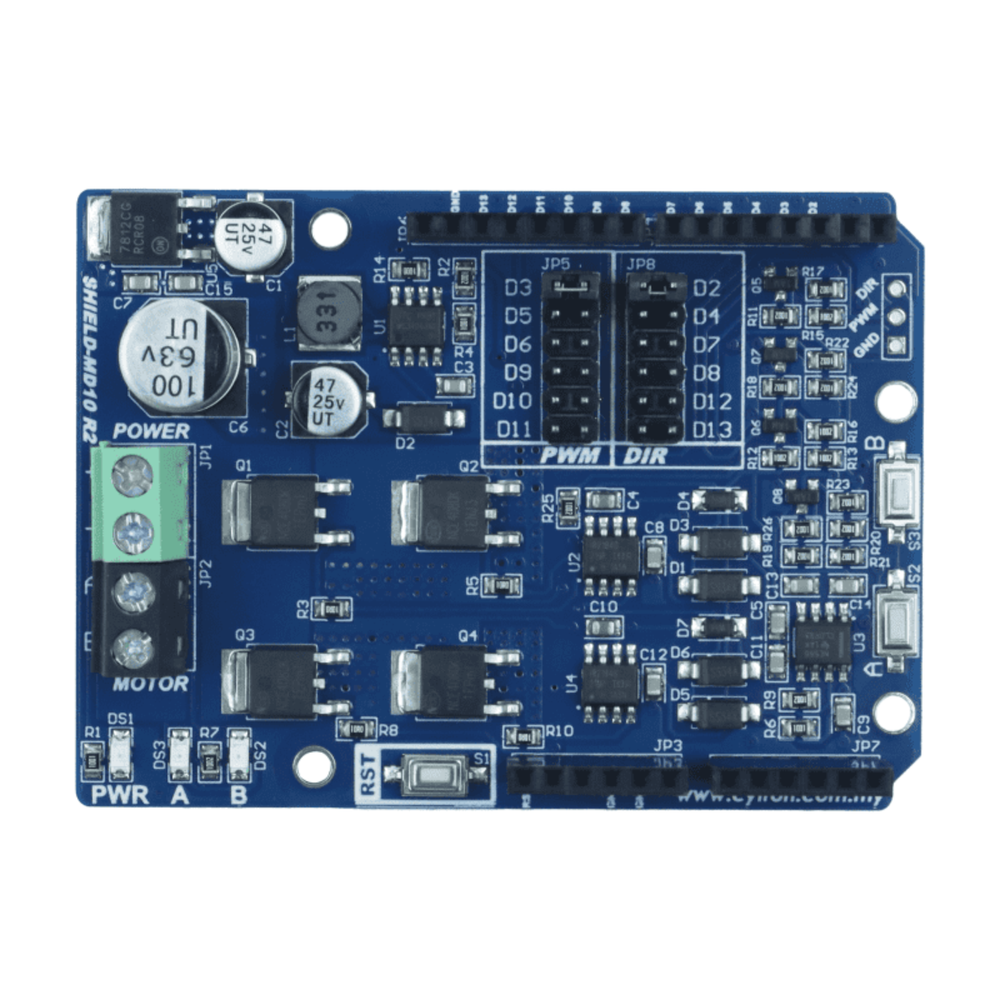

  • Selectable digital pins for PWM and direction via jumpers.
  • PWM frequency supported up to 10 kHz for fine speed control.
Specifications

Package Includes:

  • 1 x Cytron SHIELD-MD10 – 10A 7V–30V DC Motor Driver Shield for Arduino
  • 2 × Mini Jumpers

Specifications:

CategorySpecifications
ModelCytron SHIELD-MD10 (Rev 1.0)(Rev 2.0)
Motor TypeBrushed DC Motor
Control MethodBi-directional, PWM Speed Control
Supported Motor Voltage7V–30V DC (Rev 2.0)
Continuous Current10A
Peak Current15A (10 seconds)
Logic Voltage3.3V / 5V Compatible
PWM FrequencyUp to 10 kHz
Driver TypeFully Solid-State NMOS H-Bridge
ProtectionRegenerative Braking, Solid-State Reliability
CompatibilityArduino UNO, Mega 2560, Leonardo, Maker UNO, Maker UNO+, CT-UNO, CT-ARM
Pin SelectionSelectable PWM & DIR Pins (via Jumpers)
Additional FeaturesStackable Headers, No Heatsink Required
